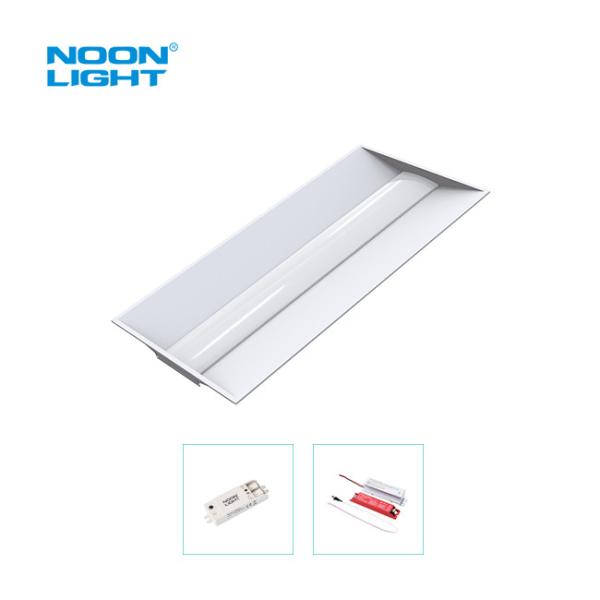

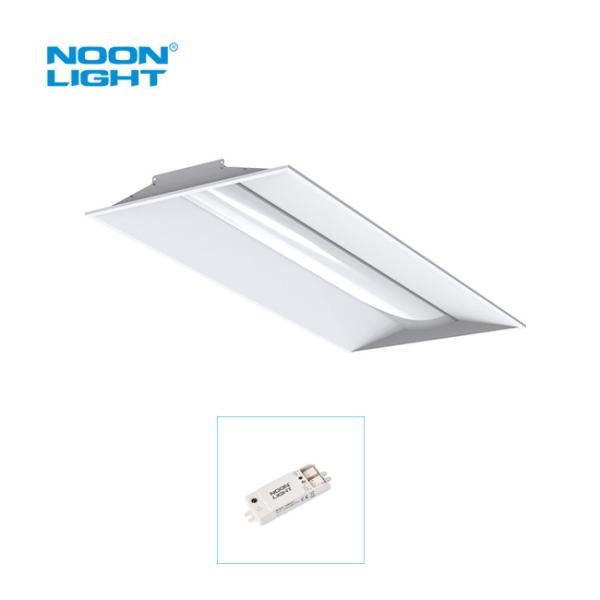

Surface Mounted 2x4 LED Center Basket Troffer For Office Classroom
Surface Mounted 2x4 LED Center Basket Troffer For Office Classroom
Surface Mounted 2x4 LED Center Basket Troffer For Office Classroom
Surface Mounted 2x4 LED Center Basket Troffer For Office Classroom
Surface Mounted 2x4 LED Center Basket Troffer For Office Classroom
Surface Mounted 2x4 LED Center Basket Troffer For Office Classroom
Surface Mounted 2x4 LED Center Basket Troffer For Office Classroom
Surface Mounted 2x4 LED Center Basket Troffer For Office Classroom
Specifications
Brand Name :
Noonlight
Model Number :
N-TR-2X4FT
Certification :
DLC / ETL / RoHS
Place of Origin :
China
MOQ :
200
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
30+ working days
Packaging Details :
1pc/inner box, 4pcs/CTN,
Product Name :
2 x 4FT 2600-5200lm Adjustable Lumen With 3000K 3500K 4000K 5000K Color Switchable 90min UL 8W Emergency Backup Inclu
Input Voltage(V) :
AC 120-277VAC or AC 120-347VAC
Luminous Efficacy :
130 lm/W
Installation :
Surface Mounted, Suspension Mounted
Certificate :
ETL/DLC 5.1 Preminum
DLC Category :
Direct Linear Ambient Luminaires & Stairwell and Passageway Luminaires
Description

2 x 4FT 2600-5200lm Adjustable Lumen With 3000K 3500K 4000K 5000K Color Switchable 90min UL 8W Emergency Backup Inclu

Surface Mounted 2x4 LED Center Basket Troffer For Office Classroom

  • Noonlight LED Troffers are the super slim led fixtures for fluorescent troffers in new or remodel construction. CCT and wattage adjustable technology enables customers to choose the color temperature and lumen output that is best suited for their lighting application.

Surface Mounted 2x4 LED Center Basket Troffer For Office Classroom

  • 2x4ft LED Troffer CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
  • Minimize stock, 1 SKU can cover max. of 16 models.
  • An auxiliary to connect low voltage sensor/BLE or other IOT network.
  • 2 Depth Design: Super Thin & Standard
  • DLC5.1 Premium LED Troffer Built-in Emergency Driver Option.
  • L70>50,000hrs, 5 year warranty.

Surface Mounted 2x4 LED Center Basket Troffer For Office Classroom

Model No DLC Input Voltage Wattage Lens CRI/CCT Rated Lumen @ 30K

Rated

Efficancy

@ 30K

 Viewing Angle

Rated Lifetime

Replacing

N-TR-24-40-XX-WC1-

[BLANK,HV]-

[S1, S2, S3, S4, S5, S6, BLANK)--[SL, F]

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 40W

Frosted

Ra>80,

30K

35K

40K

50K

 5000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-24-34-XX-WC1-

[BLANK,HV]-

[S1, S2,BLANK)--[SL, F]

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 34W Frosted

Ra>80,

30K

35K

40K

50K

 4250LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-24-25-XX-WC1-

[BLANK,HV]-

[S1, S2, S3, S4, S5, S6, BLANK)--[SL, F]

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 25W

Frosted

Ra>80,

30K

35K

40K

50K

3500LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-24-20-XX-WC1-

[BLANK,HV]-

[S1, S2, S3, S4, S5, S6, BLANK)--[SL, F]

 P

100-277VAC

or

100-347VAC

 20W

Frosted

Ra>80,

30K

35K

40K

50K

2500LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-14-27-XX-WC1-

[BLANK,HV]-

[S1, S2, S3, S4, S5, S6, BLANK)--[SL, F]

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 27W Frosted

Ra>80,

30K

35K

40K

50K

3375LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-14-24-XX-WC1-

[BLANK,HV]-

[S1, S2, S3, S4, S5, S6, BLANK)--[SL, F]

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 24W Frosted

Ra>80,

30K

35K

40K

50K

3000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-14-20-XX-WC1-

[BLANK,HV]-

[S1, S2, S3, S4, S5, S6, BLANK)--[SL, F]

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 20W Frosted

Ra>80,

30K

35K

40K

50K

2500LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-22-16-XX-WC1-

[BLANK,HV]-

[S1, S2, S3, S4, S5, S6, BLANK)--[SL, F]

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 16W Frosted

Ra>80,

30K

35K

40K

50K

2000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

Surface Mounted 2x4 LED Center Basket Troffer For Office Classroom

8W or 15W UL Listed Emergency Backup

Surface Mounted 2x4 LED Center Basket Troffer For Office Classroom

  • Listed for field Instllation-UL924 & CSA C22.2 NO. 141
  • Input: 120-277VAC/347VAC 50/60Hz
  • Output: 25-50VDC, 8W or 15W
  • Illumination Time: 90min
  • Battery Type:Li-ion/Ni-MH
  • Battery Recharge Time: 24Hrs
  • Surge Protection: 3KV
  • Protection:
  • Input over-current Protection (Fuse)
  • Output over-voltage Protection
  • Output Low Voltage Protection
  • Output Short Circuit Protection
  • Working Temp.: 10℃ to 50℃

​

Surface Mounted 2x4 LED Center Basket Troffer For Office Classroom

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

Surface Mounted 2x4 LED Center Basket Troffer For Office Classroom Surface Mounted 2x4 LED Center Basket Troffer For Office Classroom Surface Mounted 2x4 LED Center Basket Troffer For Office Classroom

Power Adjustable Slide Switch Position

Size/Positon

0

1

2

3

1X4

27W

24W

20W

16W

2X2

27W

24W

20W

16W

2X4

40W

30W

25W

20W

CCT Tunable Slide Switch Position

Position/Group

CCT

Low

3000K(Optional)

Middle 1

3500K

Middle 2

4000K

High

5000K

Surface Mounted 2x4 LED Center Basket Troffer For Office Classroom

Surface Mounted 2x4 LED Center Basket Troffer For Office Classroom


Surface Mounted 2x4 LED Center Basket Troffer For Office Classroom

Schools, offices, conference room, hospitality etc.
