Specifications
Brand Name :
Bako Vision
Model Number :
BOF-B-1
Certification :
CE,CCC,ETL,FCC
Place of Origin :
China
MOQ :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000 sqms/month
Delivery Time :
15 days
Packaging Details :
Plywooden case
Panel Material :
Steel/Aluminum
Brightness :
>6,000 nits
Servicing :
Rear
IP Rating(Front/Rear) :
IP65/IP54
Refresh Rate :
>1,920 Hz
Processing :
16 bit
Price :
$399~999
Description

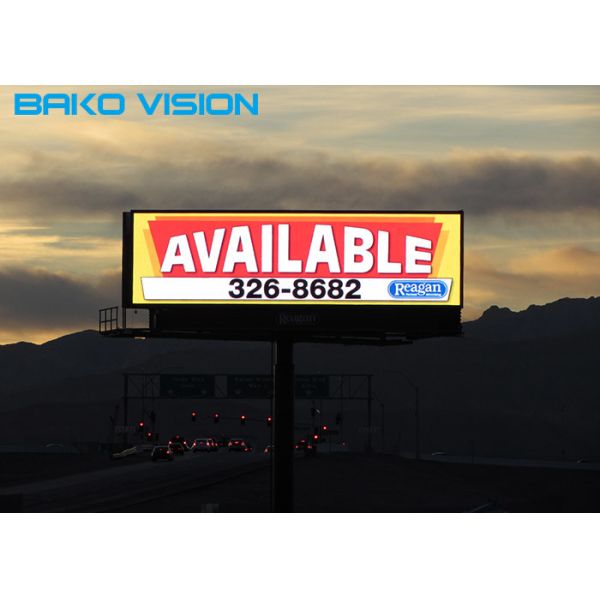

Outdoor Fixed Commercial LED Billboard, Full Color P10 Back Service SMD LED Panel

Products Description

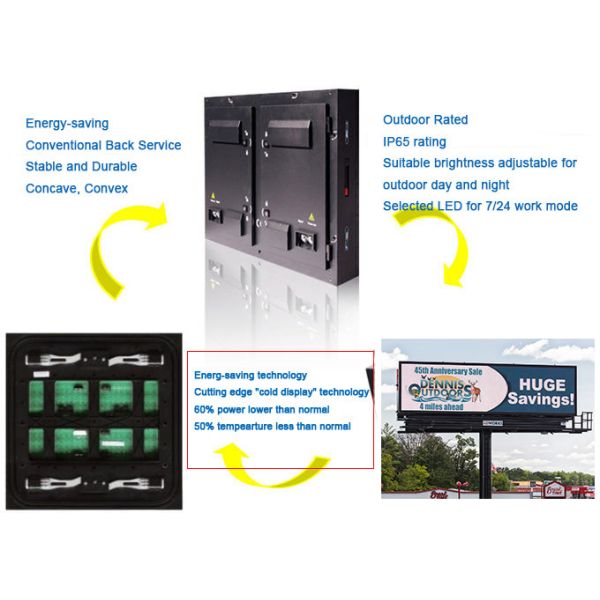

Energy-Saving Technology

Cutting edge “cold display” technology

60% power lower than normal

50% tempearture less than normal

Specification

BOF-B-3 BOF-B-4 BOF-B-5 BOF-B-6 BOF-B-8
Pixel Pitch 3.2mm 4mm 5mm 6.67mm 8mm
Pixel Configuration SMD1921 SMD1818 SMD2727 SMD2727 SMD3535
Pixel Density 97,656 pixels/m² 62,500pixels/m² 40,000pixels/m² 22,376 pixels/m² 15,625 pixels/m²
Module Size 192*192 320*160 320*160 320*160 320*160
Panel Size 960*960*150 960*960*150 960*960*150 960*960*150 960*960*150
Panel Resolution 300*300 240*240 192*192 144*144 120*120
Panel Material Steel/Aluminum Steel/Aluminum Steel/Aluminum Steel/Aluminum Steel/Aluminum
Weight(sqm) 65/45 65/45 65/45 65/45 65/45
Contrast Ratio 2000:1 2000:1 2000:1 2000:1 2000:1
Brightness 6500 nits 6500 nits 6500 nits 6500 nits 6500 nits
Refresh Rate 1920 Hz 1920 Hz 1920 Hz 1920 Hz 1920 Hz
IP Rating IP 65 IP 65 IP 65 IP 65 IP 65
Scan Method 1/16 Scan 1/8 Scan 1/8 Scan 1/10 Scan 1/4 Scan

Features

Durable and Qualified Components

The most durable and qualified components are selected

Deliberate designs on waterproof and ventilation system

Fast Installation and Easy Maintenance

Fast lock system guarantees a quick and easy installation

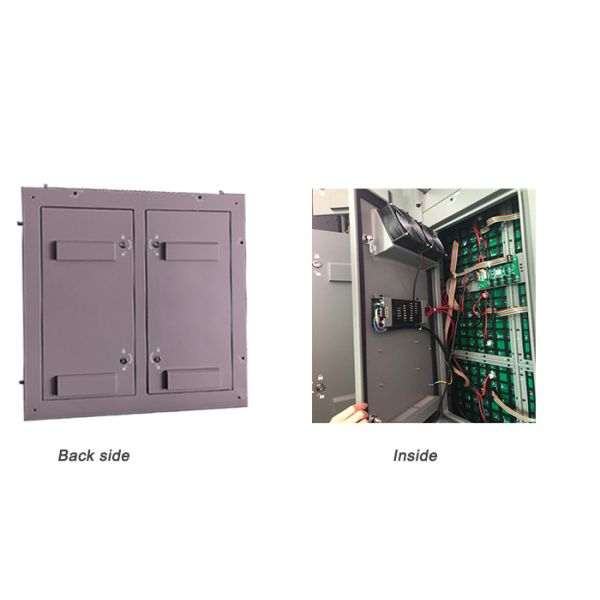

Conventional Rear access

Outdoor Rated

IP65 rating Brightness adjustable for day and night

Selected LED for 7/24 work mode

Outdoor Fixed Commercial LED Billboard, Full Color P10 Back Service SMD LED PanelOutdoor Fixed Commercial LED Billboard, Full Color P10 Back Service SMD LED PanelOutdoor Fixed Commercial LED Billboard, Full Color P10 Back Service SMD LED PanelOutdoor Fixed Commercial LED Billboard, Full Color P10 Back Service SMD LED Panel

Packaging and Shipping

Outdoor Fixed Commercial LED Billboard, Full Color P10 Back Service SMD LED Panel

Cases:

Outdoor Fixed Commercial LED Billboard, Full Color P10 Back Service SMD LED Panel

About Us

Outdoor Fixed Commercial LED Billboard, Full Color P10 Back Service SMD LED Panel

LED Vision Technology Limited  , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.

BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.


BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.

Outdoor Fixed Commercial LED Billboard, Full Color P10 Back Service SMD LED Panel

Our Advantages

Rich experience: established in 2005; familiar with technical and material about LED display.

Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.


Powerful R&D ability: excellent engineers are constantly developing new products and improving them.


Good quality:All products have passed CE, ROHS, FCC certification.

Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.


We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.
