Specifications
Brand Name :
Bako Vision
Model Number :
BOF-6-2
Certification :
CE,CCC,ETL,FCC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000 sqms/month
Delivery Time :
15 days
Packaging Details :
Plywooden case
Panel Material :
Steel/Aluminum
Brightness :
>6,000 nits
Servicing :
Rear
IP Rating(Front/Rear) :
IP65/IP54
Refresh Rate :
>1,920 Hz
Processing :
16 bit
Description

Factory P5 P6 P8 P10 Outdoor LED Module Display HD 5500nits Back Service RGB Advertising

Products Description

Energ-saving technology

Cutting edge "cold display" technology

60% power lower than normal

50% tempearture less than normal

Specification

Pixel Pitch 10mm
Pixel Density 10000dots/sqm
Color Configuration 1R1G1B
LED Package SMD3535
Module Size 320mm x 160mm
Module Resolution 32dots x 16dots
Drive Mode 1/4Scan, Constant Current
Brightness 6500cd/sqm
Viewing Distance 10m-100m
Interface Port HUB-75
Module Weight 0.4KG/pcs
Viewing Angle H: 120°; V:120°
Refresh Rate 1500HZ
Standard Cabinet Size 960mm x 960mm
Cabinet Weight 40KG/pcs
Frame Rate 120frame/sec
Grey Scale 16.7M colors(Synchronized)
Power Input AC110V/ 220V ±10%, 50HZ
Max Power Consumption 600W/sqm
Ave. Power Consumption 250W/sqm
Working Temperature -20℃~+65℃
Blind Spot Rate <1/10000
Life Span >100,000 Hours
Waterproof IP65
Operating Humidity 10%~95%
Control Method Synchronous, 3G, WIFI, USB
Control PC With DVI Graphic card

Features

P5 P6 P8 P10 Outdoor LED Module Display HD 5500nits Back Service RGB Advertising

P5 P6 P8 P10 Outdoor LED Module Display HD 5500nits Back Service RGB Advertising

Fast Installation and Easy Maintenance

Fast lock system design guarantees a quick and easy installation

Rear access

Outdoor Rated

IP65 rating

Suitable brightness adjustable for outdoor day and night

Selected LED for 7/24 work mode

Durable and Qualified Components

The most durable and qualified components are selected
Deliberate designs on waterproof and ventilation system

Packaging and Shipping

P5 P6 P8 P10 Outdoor LED Module Display HD 5500nits Back Service RGB Advertising

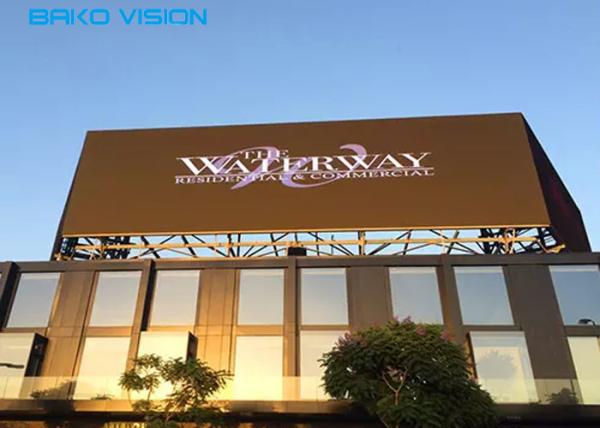

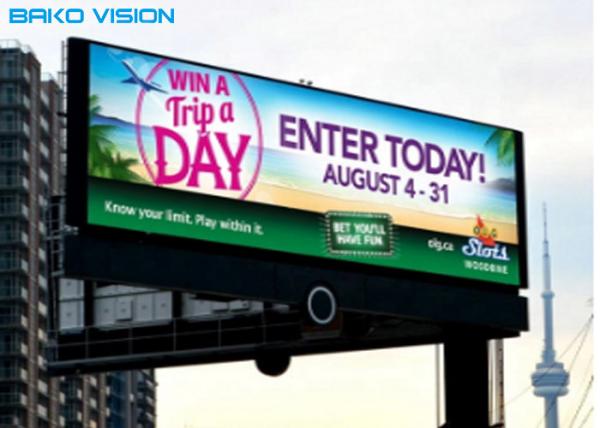

Cases:

P5 P6 P8 P10 Outdoor LED Module Display HD 5500nits Back Service RGB Advertising

About Us

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.

BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.


BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.

P5 P6 P8 P10 Outdoor LED Module Display HD 5500nits Back Service RGB Advertising

Our Advantages

Rich experience: established in 2005; familiar with technical and material about LED display.

Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.


Powerful R&D ability: excellent engineers are constantly developing new products and improving them.


Good quality:All products have passed CE, ROHS, FCC certification.

Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.


We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.
