6500nits SMD Outdoor Fixed LED Display Die Casting 360W Steel Aluminum
6500nits SMD Outdoor Fixed LED Display Die Casting 360W Steel Aluminum
6500nits SMD Outdoor Fixed LED Display Die Casting 360W Steel Aluminum
6500nits SMD Outdoor Fixed LED Display Die Casting 360W Steel Aluminum
6500nits SMD Outdoor Fixed LED Display Die Casting 360W Steel Aluminum
6500nits SMD Outdoor Fixed LED Display Die Casting 360W Steel Aluminum
6500nits SMD Outdoor Fixed LED Display Die Casting 360W Steel Aluminum
6500nits SMD Outdoor Fixed LED Display Die Casting 360W Steel Aluminum
6500nits SMD Outdoor Fixed LED Display Die Casting 360W Steel Aluminum
6500nits SMD Outdoor Fixed LED Display Die Casting 360W Steel Aluminum
6500nits SMD Outdoor Fixed LED Display Die Casting 360W Steel Aluminum
6500nits SMD Outdoor Fixed LED Display Die Casting 360W Steel Aluminum
Specifications
Brand Name :
Bako Vision
Model Number :
BDF
Certification :
RoHS CCC CE FCC ETL UL
Place of Origin :
China
MOQ :
1SQM
Price :
negotiable price
Payment Terms :
T/T, L/C
Supply Ability :
6000 sqm/month
Delivery Time :
25-35days
Packaging Details :
flight case/plywood case
Physical Pitch :
4mm, 6mm, 8mm, 10mm
Pixel Configuration :
SMD
Module Dimensions :
192mm x 192mm, 320mm x 160mm
Panel Dimensions :
960x960mm
Panel Material :
Steel/ Aluminum
Brightness :
6500nits
Refresh Rate :
1920Hz
Expected Lifetime :
1000,000Hrs
Servicing :
Rear
IP Rating :
IP65
Scan Method :
1/16 scan
Description

Product Description

Customer Question & Answer

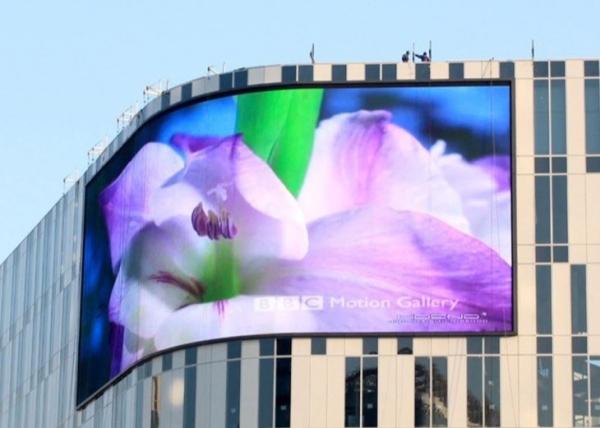

Outdoor Fixed Billboard Advertising Column Type Screen LED Display

The Billboard Led display screen now is widely applied in media advertising, transportation, traffic information distribution of station, quay and airport, conference, shopping mall and so on.



Outdoor Fixed Billboard Advertising Column Type Screen LED Display Features

* Standard cabinet size of 1024*768 mm, easy for assemble

* Die-casting aluminum design, lightweight for installing, save labor cost.

* New mask design makes LED light almost zero reflection, which ensures the
screen displaying effect;

* High refresh rate and high gray depth, Unique color calibration process, beautiful
natural picture

* Dust-proof and Waterproof of IP65, with -20°C - 60°C working temperature for
outdoor display adapted to the harsh environment.

* The viewing angle is up to 140 of horizontal and vertical, the image won't be out of
shape or color cast between the range.


* Fanless design, silent when operating,excellent thermal design, and cooling
performance

Outdoor Fixed Billboard Advertising Column Type Screen LED Display Specification


Outdoor LED Screen Specification:
BOF-4 BOF-6 BOF-8 BOF-10
Physical Pitch 4.81mm 6.67mm 8mm 10mm
Pixel Configuration SMD2727 SMD2727 SMD3535 SMD3535
Pixel Density 43,264 pixels/sqm 22,500 pixels/sqm 15,625 pixels/sqm 10,000 pixels/sqm
Module Dimension (W*H)(mm) 250*250 320*320 256*256 320*320
Panel Dimensions(mm) 1000*1000*150 1280*960*150 1280*768*150 1280*960*150
Physical Resolution of Module(W*H) 52*52 48*48 32*32 32*32
Physical Resolution of Panel(W*H) 208*208 192*144 160*96 128*96
Panel Material Steel/Aluminum Steel/Aluminum Steel/Aluminum Steel/Aluminum
Weight(kg/sqm) 65/45 65/45 65/45 65/45
Processing 16 bit 16 bit 16 bit 16 bit
Contrast Ratio 2,000:1 2,000:1 2,000:1 2,000:1
Average Power Consumption 360W/panel 360W/panel 360W/panel 360W/panel
Max Power Consumption 900W/panel 900W/panel 900W/panel 900W/panel
Brightness >6,500nits >6,500nits >6,500nits >6,500nits
Refresh Rate >1,920Hz >1,920Hz >1,920Hz >1,920Hz
Vertical Viewing Angle 160° 160° 160° 160°
Horizontal Viewing Angle 140° 140° 140° 140°
Servicing Front/Rear Front/Rear Front/Rear Front/Rear
IP Rating(Front/Rear) IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54




Advantages

* Competitive Price: Orders directly from the manufacturer to reduce intermediate expenditure, buy high-quality sign products with more reasonable price

* First-class Quality: We provide you with high-quality signs produced by our experienced technicians which use high quality raw materials

* Strict Leading Time: Depending on the type and quantity of ordered signs, we generally need only 4 to 15 days to complete the production

* OEM service offered, Customized service offered, Design service offered

* Competitive price, Short delivery, Timely transportation, Installation instruction

* Long time cooperate with signs company, construction company, design company, advertising company, chain shops, distributors, hotels, shopping malls and etc.

Tips

* Payment: We accept the L/C, T/T, Western Union.

* Shipment: We will ship within 30 working days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.

* Package: We usually pack the product in a wooden box or flight case.
