Specifications
Brand Name :
Bako Vision
Model Number :
BSP
Certification :
RoHS CCC CE FCC ETL UL
Place of Origin :
China
MOQ :
1SQM
Price :
negotiable price
Payment Terms :
T/T, L/C
Supply Ability :
6000 sqm/month
Delivery Time :
25-35days
Packaging Details :
flight case/plywood case
Pixels :
8mm, 10mm, 16mm
Tube chip color :
Full Color
Brightness :
6500cd/sqm
Warranty :
2years
Module size :
256mm*256mm, 320mm*320mm, 256mm*128mm
Life span :
100000hours
Color :
Full-color
Pixel density :
10000
Scan mode :
1/2 scan, 1/4 scan
Cabinet size :
1280*768*187mm, 1280*960*187mm
Design :
soft mask to protect the player
Description

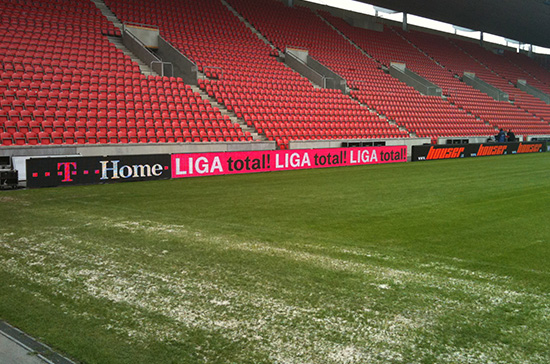

IP40 Sports Perimeter LED Display 6500cd/sqm Outdoor ETL

Products Description

FIFA Stadium Standard
Broad Viewing Angle
Fast to Install and Dismantle
High Refresh Rate for Live Camera
Details Images


BSP-8 BSP-10 BSP-16
Physical Pitch 8mm 10mm 16mm
Pixel Configuration SMD3535 SMD3535 SMD3535
Pixel Density 15,625 pixels/㎡ 10,000 pixels/㎡ 3,906 pixels/㎡
Module Dimensions(WxH)(mm) 256 x 256 320 x 320 256 x 128
NO. of Modules Per Panel(WxH) 5 x 3 4 x 3 5 x 7
Physical Resolution of Modules(WxH) 32 x 32 32 x 32 16 x 8
Physical Resolution of Whole Set(WxH) 160 x 96 128 x 96 160 x 56
Panel Material Steel/Aluminum Steel/Aluminum Steel/Aluminum
Weight(m²) 70/50kg /m² 70/50kg /m² 70/50kg /m²
Gray Scale 16 bit 16 bit 16 bit
Colors 281 trillion 281 trillion 281 trillion
Contrast Ratio 2,000: 1 2,000: 1 2,000: 1
Average Power Consumption 360 W / m² 360 W / m² 360 W / m²
Max Power Consumption 900 W / m² 900 W / m² 900 W / m²
Operating Temp/Humidity -20℃-50℃ / 10% - 90% -20℃-50℃ / 10% - 90% -20℃-50℃ / 10% - 90%
Storage Temp/Humidity -20℃-50℃ / 10% - 90% -20℃-50℃ / 10% - 90% -20℃-50℃ / 10% - 90%
Refresh Rate ≥2,880Hz ≥2,880Hz ≥2,880Hz
Brightness >6,500 nits >6,500 nits >6,500 nits
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs

IP40 Sports Perimeter LED Display 6500cd/Sqm Outdoor ETL FIFA Stadium Standard

FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.

Q2. What are your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. Do you provide samples? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q4. How about your delivery time?
A: Generally, the sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q6. Do you offer a guarantee for the products?
A: Yes, we offer a 2-5 years warranty on our products.

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q8: How can I get technical support?
A:1, We will train in our factory and send video for showing. The training includes system use, system maintenance, and equipment protection.


Company Info:

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world-class manufacturer of technologically advanced LED displays, focusing on high-end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailored work of OEM, ODM, creative LED models besides standard LED screens.

BAKO VISION's main markets are among America, Europe, the Middle East, and Asia, all of our products are certificated by RoHS, CCC, CE, FCC, ETL, UL. Standing firmly by quality, winning firmly by proficiency, in the past years of development, BAKO VISION's continuous growth and brand positioning are all relied on by the long-term partnership with a variety of channel customers over 120+ countries.
