MachineU > China Products > Service Equipment > Digital Signage > Digital Signage and Displays
Outdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium Material
Outdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium Material
Outdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium Material
Outdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium Material
Outdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium Material
Outdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium Material
Outdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium Material
Outdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium Material
Specifications
Brand Name :
Bako Vision
Model Number :
BSP Series
Certification :
CCC CE FCC
Place of Origin :
China
MOQ :
1sqm
Payment Terms :
L/C, T/T, Paypal, Western Union
Supply Ability :
6000sqm/month
Delivery Time :
20~25 days
Packaging Details :
Plywooden case/ flight case
Pixel configuration :
SMD3535
Panel Material :
Aluminium
Single cabinet weight :
70/50kg/sqm
Processing :
16bit
Contrast ratio :
2000:1
IP rating（front/rear） :
IP65/IP54
Description

Outdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium Material

18-BSP.pdf
Ultimate, Outdoor, Sports Display
Outdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium Material

Outdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium Material



Technical specifications:

BSP-8 BSP-10 BSP-16
Physical Pitch 8mm 10mm 16mm
Pixel Configuration SMD3535 SMD3535 SMD3535
Pixel Density 15,625pixels/m² 10,000pixels/m² 3,906 pixels/m²
Module Dimensions(W*H)(mm) 256*256 320*320 256*128
Panel Dimensions(mm) 1280*768*187 1280*960*187 1280*896*187
NO. Of Modules Per Panel(W*H) 5*3 4*3 5*7
Physical Resolution of Module(W*H) 32*32 32*32 16*8
Physical Resolution of Panel(W*H) 160*96 128*96 160*56
Panel Material Aluminium Aluminium Aluminium
Single Cabinet Weight 70/50kg/m² 70/50kg/m² 70/50kg/m²
Processing 16bit 16bit 16bit
Colour Number 281 trillion 281 trillion 281 trillion
Contrast Ratio 2000:1 2000:1 2000:1
Average Power Consumption 360W/panel 360W/panel 360W/panel
Max. Power Consumption 900W/panel 900W/panel 900W/panel
Operating Temp/Humidity -20ºC-50ºC/10%-90% -20ºC-50ºC/10%-90% -20ºC-50ºC/10%-90%
Storage Temp/Humidity -20ºC-50ºC/10%-90% -20ºC-50ºC/10%-90% -20ºC-50ºC/10%-90%
Refresh Rate >1920Hz >1920Hz >1920Hz
Brightness >6500 nits >6500 nits >6500 nits
Horizontal Viewing Angle 160° 160° 160°
Vertical Viewing Angle 140° 140° 140°
Expected Lifetime 100,000Hrs 100,000Hrs 100,000Hrs
IP Rating
(Front/Rear)		 IP65/IP54 IP65/IP54 IP65/IP54
Servicing Front/Rear Front/Rear Front/Rear

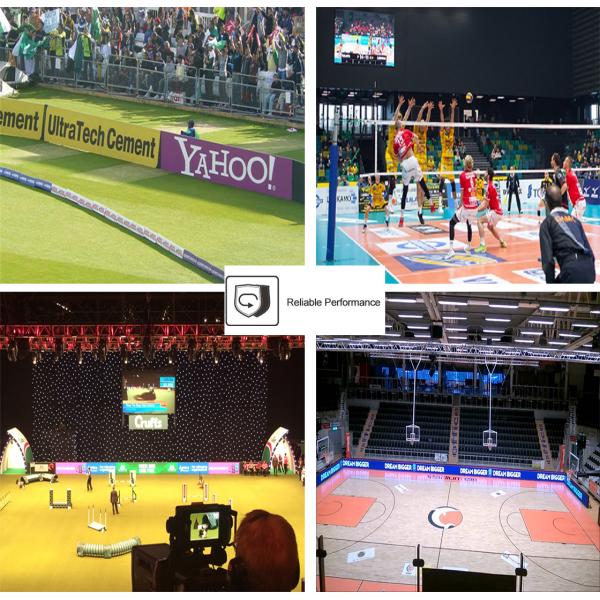

Applications:

Outdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium Material

Outdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium MaterialOutdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium MaterialOutdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium Material

Outdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium MaterialOutdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium MaterialOutdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium MaterialOutdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium MaterialOutdoor Waterproof Stadium Sports Perimeter LED Display P8 P10 P16 Aluminium Material
