P16 7500 Nits Sports Perimeter Led Display Banner Billboard High Refresh Rate
P16 7500 Nits Sports Perimeter Led Display Banner Billboard High Refresh Rate
P16 7500 Nits Sports Perimeter Led Display Banner Billboard High Refresh Rate
P16 7500 Nits Sports Perimeter Led Display Banner Billboard High Refresh Rate
P16 7500 Nits Sports Perimeter Led Display Banner Billboard High Refresh Rate
P16 7500 Nits Sports Perimeter Led Display Banner Billboard High Refresh Rate
Specifications
Brand Name :
BAKOVISION
Model Number :
P16
Certification :
CE, RoHs, FCC
Place of Origin :
China
MOQ :
1sqm
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5,000sqm per month
Delivery Time :
20-25days
Packaging Details :
Flight case or wooden box
Pitch :
16mm
cabinet size :
1280x960mm
Leds :
DIP346
Power supply :
Meanwell
Description

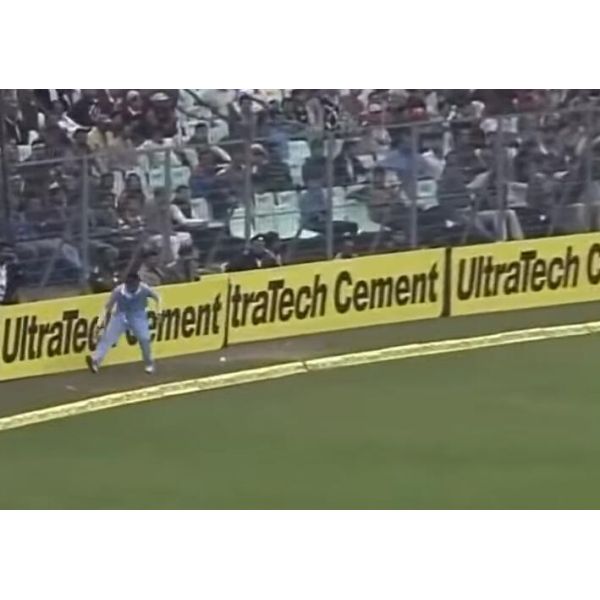

High Refresh Rate P16 7500 Nits Perimeter Led Display, Stadium Led Banner Billboard for Sports Ads

Features of perimeter display

1. Rubber mask: The rubber mask can protect football player and also protect led display itself;

2. Foam protector on the top of cabinet can also protect players ;

3. Adjustable bracket at the back of cabinet;
4. Good waterproof protection: Front is IP65 and back is IP54;
5. Good color uniformity, because we use top rate of Led;
7. Energy saving, due to we use high efficiency power supply, top rate of led, etc;

8. Double data backup: if one data cable doesn’t work, perimeter led display still can work well;
9. Easy transportation: we will make flight cases with wheels for clients. So it is convenient for transportation. We also can tailor special cart for moving perimeter led display;

9. 7,500nits brightness always available;

Specification of perimeter led display

Pixel Pitch 16mm
Pixel Density 3,906dots/sqm
Color Configuration 1R1G1B
LED Encapsulation DIP346
Module Size 256mm x 256mm
Module Resolution 16dots x 16dots
Drive Duty Static Constant Current
Brightness >8,000nits
Viewing Distance 16m - 160m
Viewing Angle H: 120°, V: 70°
Refresh Rate 2,000HZ
Frame Rate 120frame/sec
Grey Grade 256levels of Each Color
Color Grade 16.7M
Power Input AC110V/ 220V/ 50HZ
Max Power Consumption 1,600W/sqm
Ave. Power Consumption 400W/sqm
Storage Temperature -40℃ - +80℃
Working Temperature -20℃ - +60℃
Blind Spot Rate <1/10,000
MTBF >10,000 Hours
Life Span >100,000 Hours
Waterproof IP65
Operating Humidity 10% - 95%
Control System Synchronous, Asynchronous
Operating System Win 98, Win2000, XP, 07.etc
Input Source All Format (AVI, MPEG,VOB, RM, etc)
Certificate CE, LVD, RoHS

P16 7500 Nits Sports Perimeter Led Display Banner Billboard High Refresh RateP16 7500 Nits Sports Perimeter Led Display Banner Billboard High Refresh Rate
