P3mm IP65 Outdoor Fixed LED Display Durable Stable Back Service
P3mm IP65 Outdoor Fixed LED Display Durable Stable Back Service
P3mm IP65 Outdoor Fixed LED Display Durable Stable Back Service
P3mm IP65 Outdoor Fixed LED Display Durable Stable Back Service
P3mm IP65 Outdoor Fixed LED Display Durable Stable Back Service
P3mm IP65 Outdoor Fixed LED Display Durable Stable Back Service
P3mm IP65 Outdoor Fixed LED Display Durable Stable Back Service
P3mm IP65 Outdoor Fixed LED Display Durable Stable Back Service
P3mm IP65 Outdoor Fixed LED Display Durable Stable Back Service
P3mm IP65 Outdoor Fixed LED Display Durable Stable Back Service
Specifications
Brand Name :
Bako Vision
Model Number :
BOF-B
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1 SQM
Price :
negotiable price
Payment Terms :
L/C, T/T
Supply Ability :
6000 sqm/month
Delivery Time :
25-35days
Packaging Details :
flight case/plywood case
Pixel Pitch :
3mm
Module Size :
192*192
Panel Size :
960*960
Module Resolution :
64*64
Panel Resolution :
320*320
Panel Material :
Steel/Aluminum
Weight :
65/45kg/m2
Brightness :
>6500nits
Refresh Rate :
>1920Hz
IP Rating :
IP65
Servicing :
Rear
Lifetime :
100,000 Hrs
Description

P3mm IP65 Outdoor Fixed LED Display Durable Stable Back Service

High Brightness Outdoor LED Display, Full Color Video Wall Screen, Advertising LED Display

Quick Details:

1. SMD led encapsulation confirm wide view distance and good uniformity

2. High brightness, good waterproof IP65, anti-corrosion, anti-rust, long life span>100000hours

3.High pixel density, high resolution and high definition, perfect display vision

4. Lower power consumption, good heat dissipation, low noise created.

5. Cabinet with locks, connectors, easy and quick to assemble without tools in short time

6. Widely used for commercial display, advertising, stage background, mobile display. traffic display,sports led display etc.

Functions :
1. High refresh rate: With NOVA STAR control system, no scanning line when photographed
2. High gray level: 256 RGB each ,display 16.7M colors ,vivid and perfect video effect
3.High resolution: The most apparent features of the new generation of LED display
4.Good color uniformity: With brand Lamp Nationstar and high refresh MBI5124 IC.
5. High Brightness: >6500cd/m2 ,brightness automatically adjusted
6. High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time
7. Long life span: over100,000hours, warranty from 2 to 5 years.
8. You need = We design : Provide Personal- Customized led offer

Outdoor Fixed Installation LED Display Parameters:

BOF-B-3

BOF-B-4

BOF-B-5

BOF-B-6

BOF-B-8

Physical Pitch

3mm

4 mm

5 mm

6.67 mm

8 mm

Pixel Configuration

SMD 1921

SMD 1818

SMD 2727

SMD 2727

SMD 3535

Pixel Density

97,656 pixels/m²

62,500 pixels/m²

40,000 pixels/m²

22,376 pixels/m²

15,625 pixels/m²

Module Dimensions (W × H) (mm)

192 × 192

320 × 160

320 × 160

320 × 160

320 × 160

Panel Dimensions (mm)

960 × 960 × 150

960 × 960 × 150

960 × 960 × 150

960 × 960 × 150

960 × 960 × 150

Physical Resolution of Module (W × H)

60 × 60

80 × 40

64 × 32

48 × 24

40 × 20

Physical Resolution of Panel (W × H)

300 × 300

240 × 240

192 × 192

144 × 144

120 × 120

Average Power Consumption

360 W/m²

360 W/m²

36 W/m²

360 W/m²

360 W/m²

Max Power Consumption

900 W/ m²

900 W/ m²

900 W/ m²

900 W/ m²

900 W/ m²

Average Power After Energy Saving

-

-

-

90 W/ m²

90 W/ m²

Max Power After Energy Saving

-

-

-

230 W/ m²

230 W/ m²

Brightness

≥6500 nits

≥6500 nits

≥6500 nits

≥6500 nits

≥6500 nits

Refresh Rate

>1,920 Hz

>1,920 Hz

>1,920 Hz

>1,920 Hz

>1,920 Hz

Horizontal Viewing Angle

160°

160°

160°

160°

160°

Vertical Viewing angle

140°

140°

140°

140°

140°

Expected Lifetime

100, 000 Hrs

100, 000 Hrs

100, 000 Hrs

100, 000 Hrs


100, 000 Hrs

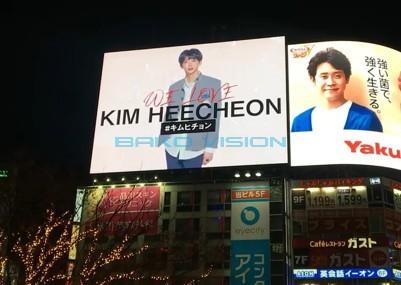

Outdoor Fixed Installation LED Display Cases:




Outdoor Fixed Installation LED Display Features:

1)This cabinet of SMD outdoor led display can serve as large advertising led wall with great visual effect.
2)It's suitable for stage, bank, promotion, exhibition, station, KTV, stadium, airport and all outdoor places.
3)Ultra-thin cabinet and modular design can save installation and maintenance cost and also enhance work efficiency.
4)Adopted MBI constant current driver which can make refresh rate up to 1920Hz load with single receiving card in one cabinet. High quality product ensure stable and clear image output.
5)Special waterproof design protect your product out of water, the high quality is worthy of trust.
6)The outdoor SMD led display features NOVA control system which ensures great quality output, high resolution display, fast loading time and high refresh rate.

Let me know if you have any interest or question about this product.
