Specifications
Brand Name :
BAKO VISION
Model Number :
BOR-4.8
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
8000m²/month
Delivery Time :
25-25 Working Days
Packaging Details :
Flight Case
Model :
BOR-4.8
Pixel Pitch :
4.81mm
Pixel Density :
43264 pixels/m²
LED Type :
SMD2121
LED Configuration :
1R1G1B
Gray Scale :
16bit
Description

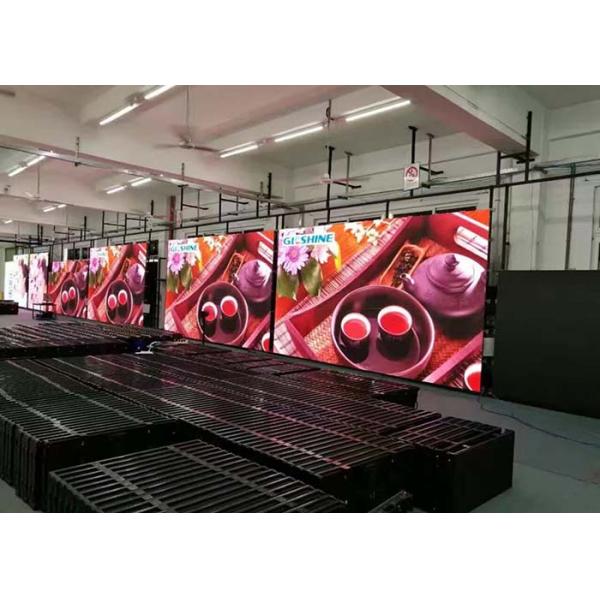

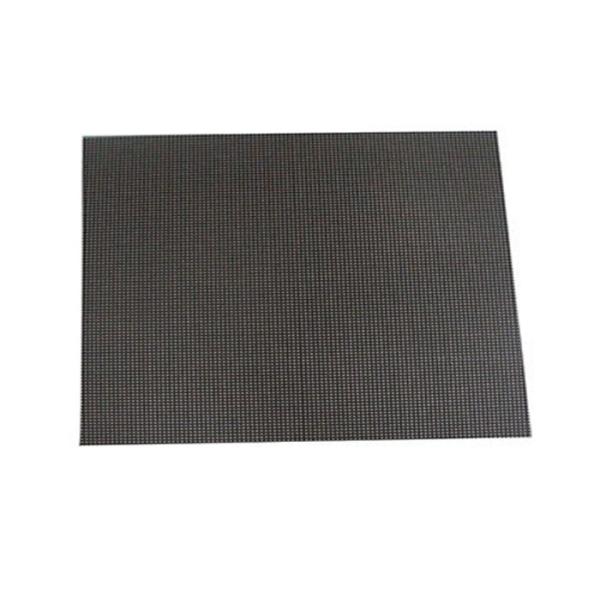

P4.81mm SMD2121 Indoor Rental LED Display 500*1000mm Cabinet

P4.81 500*1000mm cabinet Rental LED Display Panel 16bit Gray Scale Inventory in Los Angeles

Description:

P4.81 outdoor rental LED display panel is perfectly suited for high end video wall solution. Its magnetic modules can be easily accessed for maintenance at both back and front sides.

Feature:

1. High and adjustable brightness can meet the demands of the changing requirement of Customer in different environments.
2. No mosaic due to excellent flatness and nice uniformity of light-emitting.
3. The pixel is tall, the quality is exquisite and realistic, the color is pure and thick.
4. The flatness is good and the picture is uniform and pleasing to the eye.
5. High grayscale and high refresh, the studio video effect is realistic.
6. Safety performance structure, enhanced design is not easy to deform.
7. Large-angle imaging display technology to meet the wide range Angle to view unbiased color.
8. It can be designed and maintained on the front and back, easy and fast and easy to maintain.

9. Waterproof can suitable for any condition and any weather.

Technical Parameter:

BOR-II-4
Physical Pitch 4.81mm
Pixel Configuration SMD2525/2727
Pixel Density 43,264 pixels/Sqm
Module Dimensions(W x H) (mm) 250 x 250
Panel Dimensions (mm) 500 x 500 x 80 / 500 x 1000 x 80
NO. of Modules Per Panel (W x H) 2 x 2 / 2 x 4
Physical Resolution of Module (W x H) 52 x 52
Physical Resolution of Panel (W x H) 104 x 104 / 104 x 208
Panel Material Die-Casting Aluminum
Single Cabinet Weight 9 / 15 kg/panel
Processing 16bit
Colours 281 trillion
Contrast Ratio 4,000 : 1
Average Power Consumption 325 W /Sqm
Max Power Consumption 780 W /Sqm
Operating Temp/Humidity -20℃ - 60℃ / 10℃ - 60℃
Storage Temp/Humidity -30℃ - 60℃ / 10℃ - 60℃
Refresh Rate >1,920 Hz
Brightness ≥4,000nits
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Expected Lifetime 100,000 Hrs
Max Stacking 20/10
Max Hanging 20/10
Servicing Front / Rear
IP Rating (Front/Rear) IP 65 / IP 54
Scan Method 1/13 Scan

Service:

1. Reply your inquiry in 24 working hours.

2. Customized design is available,OEM & ODM are welcomed.


3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

4. Warmly welcome your visit in our company if available.


5. Guidance service: We can guide on line if customers have questions about the installation and usage.

FAQ:

Q1. Can I have a sample order for led Display?


A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2. What about the lead time?


A:Sample needs 3-5 days, mass production time needs 10-15days for order quantity more than.


Q3. Do you have any MOQ limit for led light order?


A: Low MOQ, 1pc for sample checking is available.

Q4. How to proceed an order for led Dispaly?


A: Firstly, let us know your requirements or application.


Secondly, We quote according to your requirements or our suggestions.


Thirdly, customer confirms the samples and places deposit for formal order.


Fourthly, We arrange the production.
