Specifications
Brand Name :
Bako Vision
Model Number :
P2.97
Certification :
CCC,CE,ETL,RoHS,FCC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000m²/Year
Delivery Time :
25-30 Days
Packaging Details :
Flight case/ Plywood case
Material :
Die-Casting Aluminum
Light :
Nationstar
Contrast Ratio :
4000:1
Usage :
Indoor Rental
Warranty :
2 Years
Expected Lifetime :
more than 100,000Hrs
Power Supply :
Meanwell
Feature :
Fanless design
Description

P2.97 HD 500mmx500mm Panel Indoor Rental Display for Stage Events

P2.97 HD Indoor Rental Display Description
● Front or Rear Maintenance

● TUV Certificated and Reddot Awarded

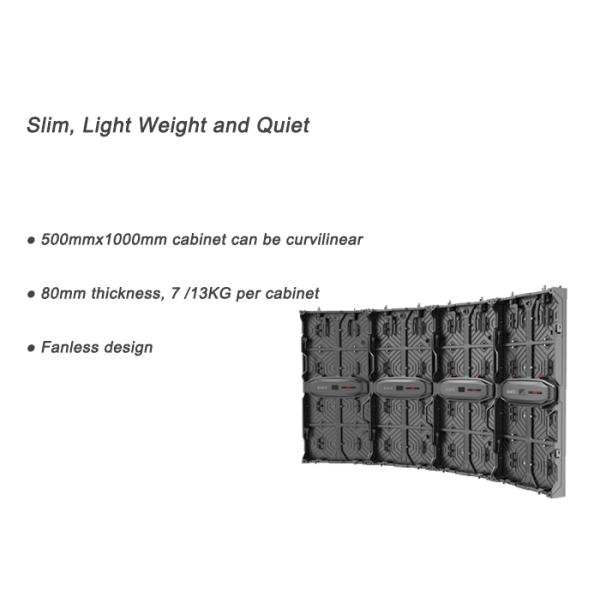

● Cabinet 500mmx500mm or 500mmx1000mm

● Curvilinear, Concave, Convex

P2.97 HD Indoor Rental Display Specs

 BIR-II-2
Physical Pitch(mm)2.97mm
Pixel ConfigurationSMD2121
Pixel Density112,896 pixels/㎡
Module Dimensions (W × H) (mm)250x250
Panel Dimensions (mm)500x500x80/500x1000x80
No. of Modules Per Panel (W × H)2x2/2x4
Physical Resolution of Module (W x H)84x84
Physical Resolution of Panel (W x H)168x168/168x336
Panel MaterialDie-casting Aluminum
Single Cabinet Weight8/14 kg / panel
Gray Scale16 bit
Colours281 trillion
Contrast Ratio4,000:1
Average Power Consumption400 W / ㎡
Max Power Consumption800 W / ㎡
Operating Temp/Humidity-10°-60℃/10%-60%
Storage Temp/Humidity-30°-60℃/10%-60%
Refresh Rate>1,920 Hz
Brightness≥1,200nits
Horizontal Viewing Angle160°
Vertical Viewing Angle140°
Expected Lifetime100,000 Hrs



P2.97 HD Indoor Rental Display Features

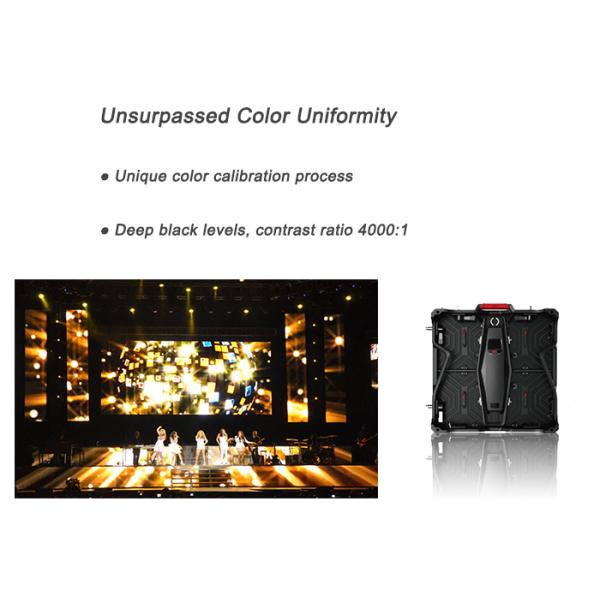

1. Unsurpassed color uniformityP2.97 HD 500mmx500mm Panel Indoor Rental Display for Stage Events

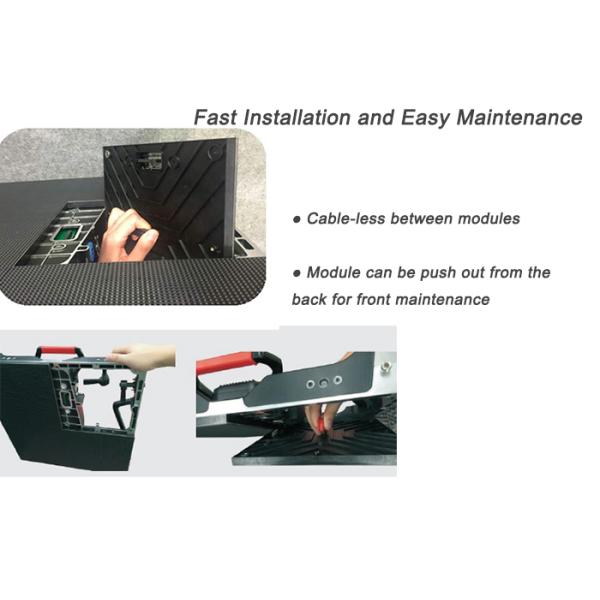

Fast Installation and Easy MaintenanceP2.97 HD 500mmx500mm Panel Indoor Rental Display for Stage Events

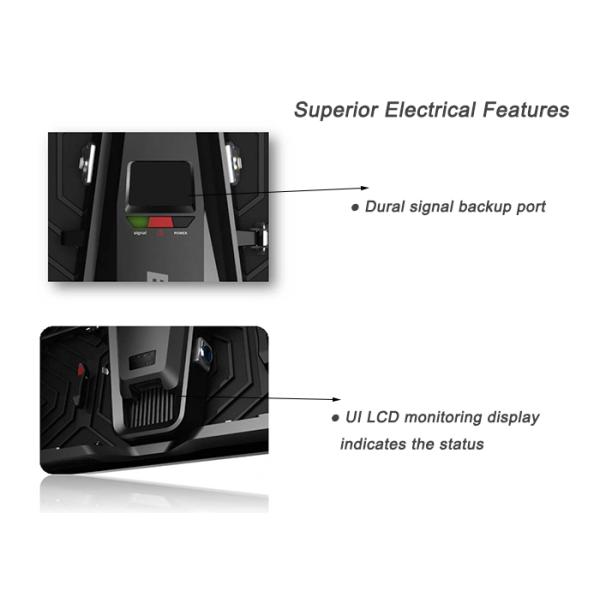

2. Superior Electrical Features

P2.97 HD 500mmx500mm Panel Indoor Rental Display for Stage Events

P2.97 HD 500mmx500mm Panel Indoor Rental Display for Stage Events
3. Reddot Design awarded

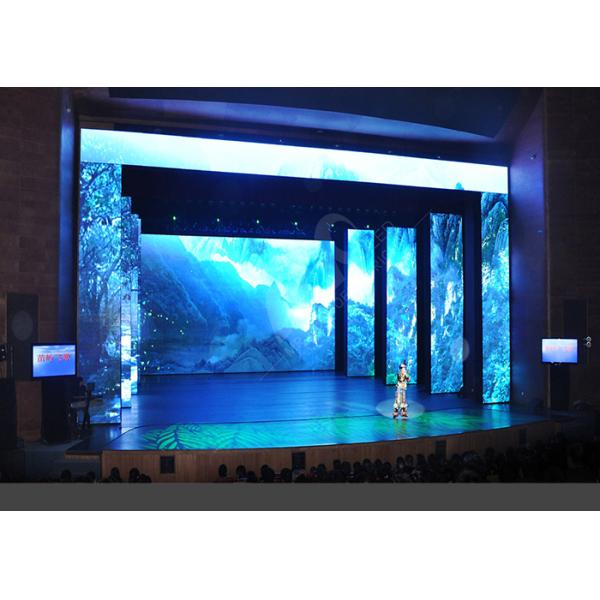

Cases

P2.97 HD 500mmx500mm Panel Indoor Rental Display for Stage Events

Company Introduction:

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005,a world class manufacturer of
technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.


BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
P2.97 HD 500mmx500mm Panel Indoor Rental Display for Stage Events
FAQ

Q1:How to choose a proper led screen for your need?
A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?

Q2:Which pixel pitch should i choose?
A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).
Q3:Which control system should i choose?
A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.
Q4:How to pay?
A:We accept L/C, T/T bank, or paypal or westerunion.
Q5:How to ship?
A:It is optional and we respect customer's choice. You can choose to ship by air cargo, by internation express company, or by sea according to your goods weight and volume and the delivery time you need.
Q6:How to install it after i received it?
A:We will offer you the drawing to guide you for installation, we could also offer steel drawing, software set up drawing or photo or send our engineer fly to you for help if needed.
