Specifications
Brand Name :
BAKO VISION
Model Number :
IRB Series
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
8000m²/month
Delivery Time :
20-25 days
Packaging Details :
Flight Case
Pixel Pitch :
5mm
Driving Method :
1/12 Scan
Input Voltage :
AC 110/220±10%
Temperature :
-20~50℃/ -40~60°C
Pixel Density :
40000 pixels/m²
Pixel Failure :
<0.0003
Description

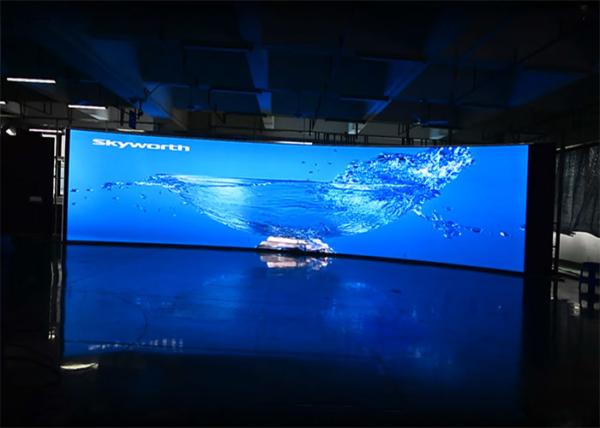

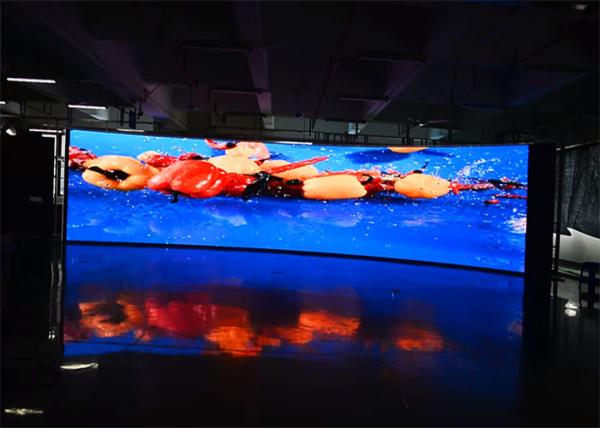

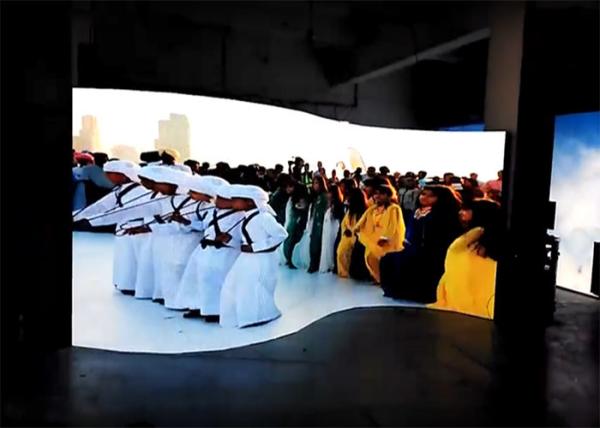

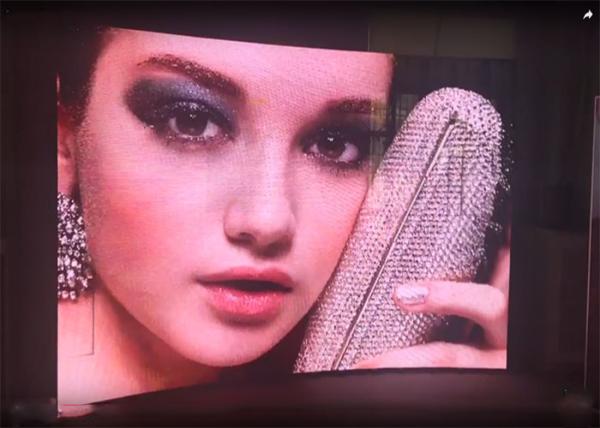

Wide Viewing Angle Indoor Rental LED Display, High Resolution 1/12 Scan LED Screen

Description:

P5 indoor rental LED display have unique die casting aluminum cabinet structure. Stable, durable and light weight cabinet also make the installation easier.

Feature:

1 Integrated design: power and receiver card integrated in the control panel, no signal cable between the module and the power line, greatly improving the stability and reliability;


2 Stable circuit control technology, simple operation, easy maintenance;


3 Unique die-cast aluminum box structure, stable, durable, lightweight;


4 very "light, thin, dense" feature, in order to provide a greater realization of creative space;


5 Accurate, fast and flexible installation location, can effectively respond to different application areas;


6 Deep gray scale processing technology, high-quality screen refresh, and create fantastic stage effects;


7 Easy maintenance: with power and signal work status self-check function, real-time display each product's power and signal work status, when a product does not display screen, to help you quickly determine the problem quickly and make the appropriate repair measures;

Technical Parameter:

Model IRB-5
Pixel Pitch 5mm
Pixel Density 40000 pixels/m2
LED Type SMD2121
LED Configuration 1R1G1B
Cabinet Dimension 480*480mm
Cabinet Resolution 96*96pixels
Cabinet Weight 7kg
Cabinet Material aluminum
Ingress Protection(front/rear) IP40/IP21
Brightness >1200nits
Viewing Angle(H/V) 140°/140°
Driving Method 1/12 Scan
Frame Refresh ≥ 60Hz
Data Refresh Rate >1500Hz
Gray Scale 16bit
Power Consumption(avg.) 240w/m2
Input Voltage AC 110/220±10%
50~60Hz
Temperature
(operating/storage)
-20~50°C
/ -40~60°C
Humidity
(operating/storage)
10%~90%RH
/10%~85%RH
MTBF ≥1000hrs
Life Span ≥100000hrs
Pixel Failure <0.0003

FAQ:


1, What is the warranty of your led display?
A: We offer 2 years warranty and more than 100000 hours screen life span

2, what is your payment term? How long it takes to delivery?
A: We usually accapt the T/T or L/C. Both of them will at least 30% deposit in advance,and the rest of 70% will paid before delivery. The lead time is usually 20 day.

3, How can you ensure the led display product quality?
A: Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, to ensure transportation safety and normal use of our products.

4, What is your pre-sale and post-sale service?
A: For pre-sale service, we have professional sales team and technical team,who are willing to answer your question within 24 hours.
For post-sale service,we will instruct you how toinstallation,how to use,how to change the broken moudles,and we can also send the technicals to your country,in general,our led display will not have a big problem,you can rest assured to buy.

Shipment:

Delivery Method: Flight case: 4-8 unit display Panels are packaged in one case.


Delivery Time: 20-25 Working Days.


Payment Item: T/T, L/C, West Union.
