Specifications
Brand Name :
Bako Vision
Model Number :
BSP
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1 SQM
Price :
negotiable price
Payment Terms :
L/C, T/T
Supply Ability :
6000 sqm/month
Delivery Time :
25-35days
Packaging Details :
flight case/plywood case
Display function :
Video,photo
Usage :
Stadium
Pixels :
10mm
Tube chip color :
Full Color
Brightness :
6500cd/sqm
Warranty :
2 years
Module size :
320*320
Application :
soccer field advertisement screen
Life span :
≥100000 hours
Color :
Full-color
Pixel density :
10,000pixels/sqm
Cabinet size :
1280*960mm
Description

P10 Stadium Screen Viewing Angle Sports Display

10mm Stadium Big Screen Viewing Angle High Refresh Rate Sports Display

P10 Perimeter LED Display Screen Board for Sport Events

Application:

Especially applicable for football stadium, basketball staidum, cricket stadium, volleyball field, Ice Ball stadium, and other sports fields.

Specification

BSP-8 BOF-10 BOF-16
Physical Pitch 8 mm 8 mm 8 mm
Pixel Configuration SMD 3535 SMD 3535 SMD 3535
Pixel Density 15,625 pixels/m² 15,625 pixels/m² 15,625 pixels/m²
NO.of Modules Per Panel (W × H) 256 × 256 320 × 320 256 × 128
Module Dimensions (W× H)(mm) 1280 × 768 × 187 1280 × 960 × 187 1280 × 896 × 187
Panel Dimensions (mm) 5 × 3 4 × 3 5 × 7
Physical Resolution of Module (W × H) 32 × 32 32 × 32 16 × 8
Physical Resolution of Panel (W × H) 160 × 96 128 × 96 160 × 56
Panel Material Steel / Aluminum Steel / Aluminum Steel / Aluminum
Average Power Consumption 360 W/m² 360 W/m² 360 W/m²
Max Power Consumption 900 W/m² 900 W/m² 900 W/m²
Refresh Rate >1,920 Hz >1,920 Hz >1,920 Hz
Brightness >6,500 nits >6,500 nits >6,500 nits
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Front / Rear Front / Rear Front / Rear
IP Rating (Front/Rear) IP65 IP65 IP65
Operating Temp/Humidity -20-50℃ / 10-90% -20-50℃ / 10-90% -20-50℃ / 10-90%
Storage Temp/Humidity -20-50℃ / 10-90% -20-50℃ / 10-90% -20-50℃ / 10-90%
Scan Method 1/4 Scan 1/2 Scan Staic Scan

Features:

  • High brightness which is adjustable to meet the needs of various working environment sufficiently, so people can get clear picture from far away;
  • Soft mask and soft top cover to protect both players and the led screen itself.
  • Broad viewing angle: due to use SMD led, so the viewing angle is 140 degree for Vertical and horizontal direction;
  • All raw materials go through the strictly testing of high/low temperature and high humidity, anti-ultraviolet rays, anti-corrosion.
  • IP65 protection grade, durable nature enables the screen to work in all outdoor weather conditions.

Multiple function: if there is no game, customers can use it as normal rental led display for rental business.

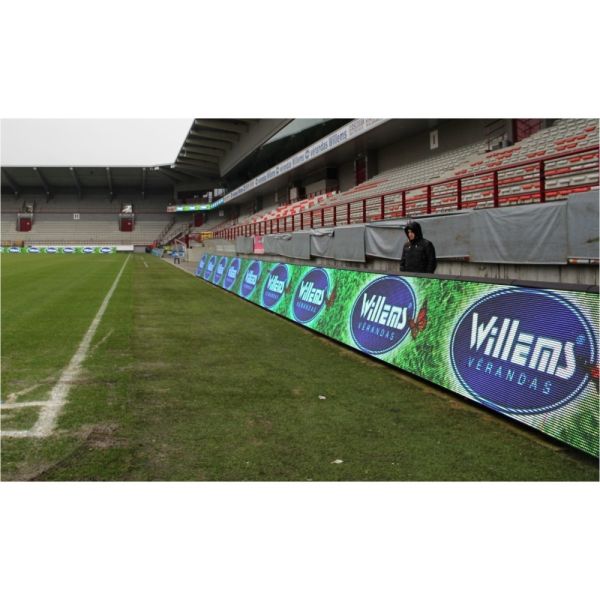

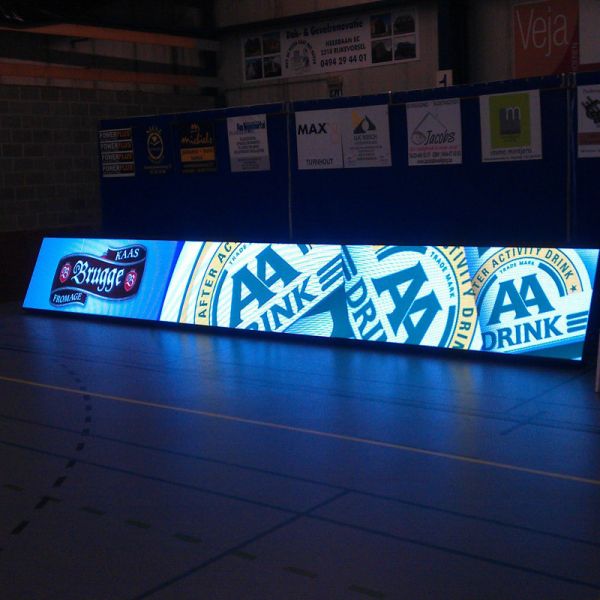

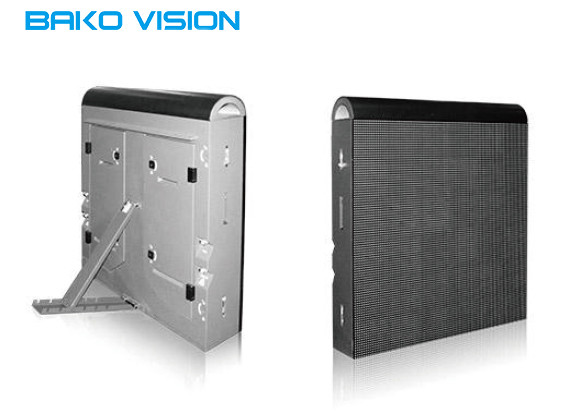

​P10 Stadium Sports Perimeter LED Display SMD 3535 IP65 Wide Viewing Angle

​P10 Stadium Sports Perimeter LED Display SMD 3535 IP65 Wide Viewing Angle​P10 Stadium Sports Perimeter LED Display SMD 3535 IP65 Wide Viewing Angle

FAQ:

1. How can you ensure the led display product quality?
Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, to ensure transportation safety and normal use of our products.

2. What is your terms of payment?

T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

3.How to choose a proper led screen for need?
You need to think about the following three questions.
1) Where will you use for?Just for indoor or outdoor?

2) Did you want to install it in one fixed place or want it to move anytime and anyway convenient?
3) what is the specific size of the led screen you would like to purchase?

4. How to install it after received?
We will offer you the drawing to guide you for installation, even send our engineer to you for help if needed.

About us:

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.

BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.

BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
