Specifications
Brand Name :
Bako Vision
Model Number :
BD
Certification :
CCC.CE.ETL.RoHS
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000m²/month
Delivery Time :
20-25 days
Packaging Details :
Flight Case
Module Dimensions (Wxh) (mm) :
250X250mm
Pixel Configuration :
SMD1921
Panel Dimensions (mm) :
500X1000
Panel Material :
Die-Casting Aluminum
Single Cabinet :
24 Kg/Panel
Life Span :
100,000 Hrs
Contrast Ratio :
4,000 : 1
Best Viewing Distance :
8m
Description

P6.25 Interative High Brightness Radar System Indoor Rental Dance Floor LED Display

Dance Floor Features:

1.BD-Dance floor led display.This product can sense function, all-round multi-angle touch, can interact with the audience, such as: interactive games, play interactive sensor video, etc.

2. Lower cost and durable material

This series have aluminum cabinet for option. The material is durable for lomg time use under different environment. It adop the energy-saving technology to save the cost a lot.

3.Higher refresh rate

This video dance floor adopt high quality MBI IC with high refresh function for indoor appliacation. It can reach a better levl between brightness, grey level and refresh rate.

4. The room can be directly scrubbed with a wet towel, strong shock resistance and good slip resistance (the actor can jump on it at will, will not slip)

Indoor Rental Dance Floor LED Display P6.25 Interative High Brightness Radar System

Advantages

1. Interactive ----Radar system

If you want have a interactive led floor , the Radar system is emssentail .

It can be radiation 10 meters of the diameter , when people walk on the area floor , it can be interactive .

2. LED tiles screen has super PC cover bearing design which reaches load-bearing 1.5 tons.

3. Automatic brightness control

Front service , Strict quality control process, ensure 100,000 hours' service time, enjoy peace of mind for years to come

Parameter

BD-6 BD-8
Physical Pitch 6.25mm 8.928mm
Pixel Configuration SMD2727 SMD3528
Pixel Density 25,600 pixels/m² 25600 pixels/m²
Module Dimensions(W*H)(mm) 250*250 250*250
Panel Dimensions(mm) 500*1000 500*1000
NO. of Modules Per Panel (W*H) 2*4 2*4
Panel Material Die-Casting Aluminum Die-Casting Aluminum
Colors 281Trillion 281Trillion
Processing 16 Bit 16 Bit
Physical Resolution of Module(W*H)(mm) 40*40 28*28
Physical Resolution of Panel(W*H)(mm) 80*160 56*112
Single Cabinet Weight 24kg/panel 25kg/panel
Average Power Consumption 300 W/panel 300 W/panel
Max Power Consumption 880 W/panel 880 W/panel
Brightness 4500 nits 4500nits
Viewing Angle H:160°/ V:140° H:160°/ V:140°
Operating Temp/ Humidity -10ºC-60ºC/10%-60% -10ºC-60ºC/10%-60%
Storage Temp/ Humidity -30ºC-60ºC/10%-60% -30ºC-60ºC/10%-60%
Expected Lifetime 100,000 Hrs 100,000 Hrs
Servicing Front Front
IP Rating(Front) IP 65 IP 65
Best viewing distance 8m 8m
Refresh Rate >1,920 Hz >1,920 Hz
Scan Method 1/5 Scan 1/3scan

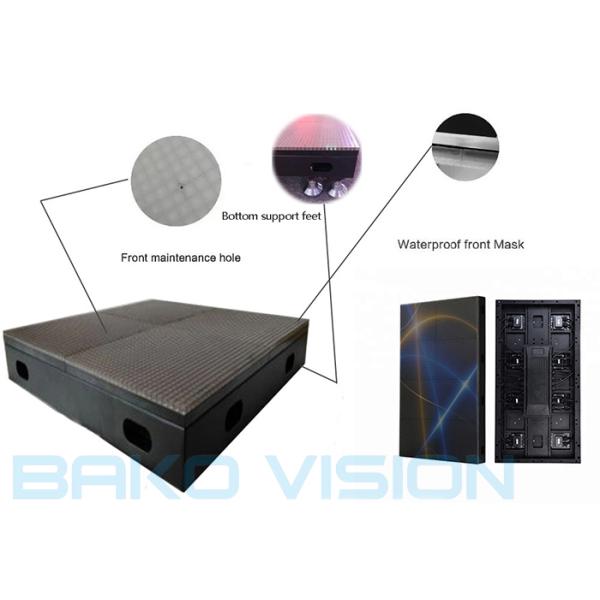

Pruduct details

LED tiles screen has super PC cover bearing design which reaches loa-bearing 1.5 tons. front service, IP65 waterproof.

Extradunarily heat sink design, work properly for a long time without cooling fans

Compact, rugged, and light weight aluminum alloy construction.

Indoor Rental Dance Floor LED Display P6.25 Interative High Brightness Radar System

Indoor Rental Dance Floor LED Display P6.25 Interative High Brightness Radar System

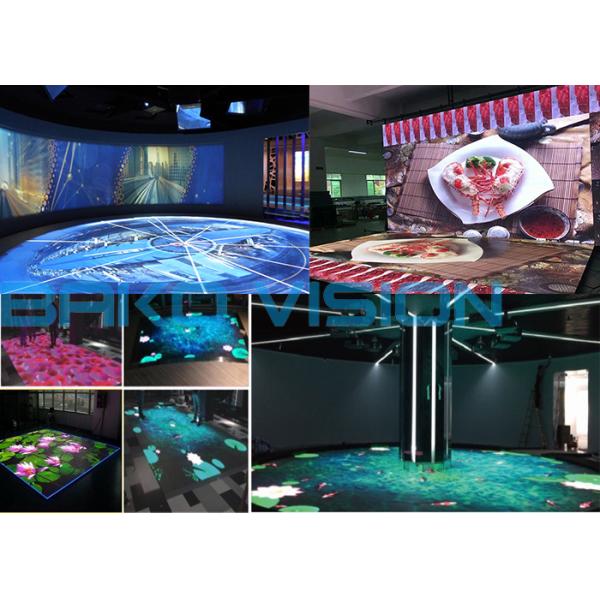

Application Application

1. Shopping Centres

2. Shops - Parties

3. Exhibitions and Trade Fairs

4. Corporate Events

5. Discotheques / Night Clubs

6. Children´s Entertainment

7. Seminars

8. Award Ceremonies

9. Product Launches

10. Advertising, Company Reception Areas

Indoor Rental Dance Floor LED Display P6.25 Interative High Brightness Radar System

Packing/ Shipping -Flight case/ By sea or by air

Indoor Rental Dance Floor LED Display P6.25 Interative High Brightness Radar System

Our company

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.

Indoor Rental Dance Floor LED Display P6.25 Interative High Brightness Radar System

Our Service

1) Reply your inquiry in 24 working hours.
2) Customized design is available,OEM & ODM are welcomed.
3) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4) Special discount and protection of sales area provided to our distributor.
5) Warmly welcome your visit in our company if available.
6) . Warranty
(A) We provide warranty of all components for 24 months. During this time, we will replace or repair our goods for free if there is something wrong with them.
(B) We will provide maintenance for a lifetime and charge for the raw materials only.

7) Technology Training
(A) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(B) We will send our engineers to your country by negotiation.
