Specifications
Brand Name :
Bako Vision
Model Number :
Outdoor LED Display
Certification :
CCC,FCC,CE
Place of Origin :
China
MOQ :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000sqm/ Month
Delivery Time :
20~25 days
Packaging Details :
Plywood case / Flight Case
Physical Pitch :
P3, P4, P5, P6, P8, P10
Brightness :
>6,500 nits
Servicing :
Rear
LED Lamp :
Nationstar
Operating Temp/Humidity :
-20℃- 50℃ / 10% - 90%
Panel Dimensions (mm) :
960 × 960 × 150mm
Price :
$399~999
Description

Commercial P8mm Outdoor LED Display Billboard IP65 Advertising Board

Digital Billboard Description

BOF-outdoor fixed led display is an high definition media led screen, with IP65 waterproof function and 1920 refresh rate. Suitable brightness adjustable for outdoor day and night. And it is widely used in Semi-outdoor and outdoor advertising ,Competitive price,Long life time and hgih quality.

Digital Billboard Features

1. High resolution
The most apparent features of the new generation of LED display.

2. Black, White, Gray Cabinet to choose
We have three cabinet color to choose. For different country market. When the temperature is too high for a long time, the white box can be used to reduce the heat absorption.

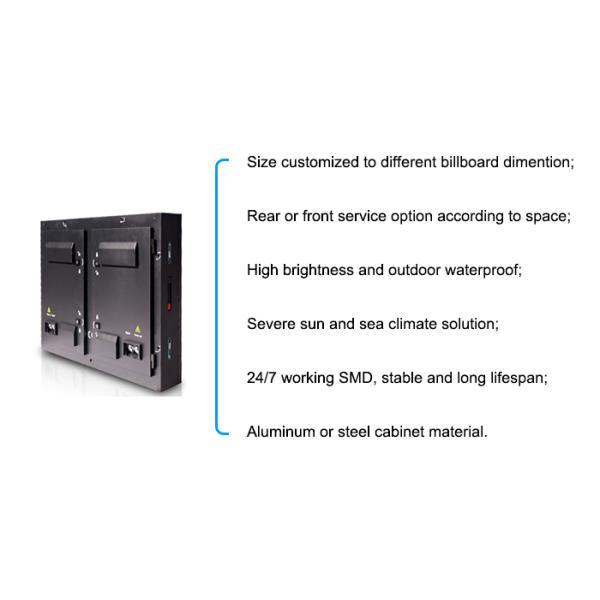

3. Easy maintenance
After adopting the classic back maintenance,it's applied to large size LED and roof mounting,wall mounting and pillar base.

4. Steel or Aluminum material
The steel material is much cheapter than Aluminum, and the steel cabinet can be customized.
The alumunim materials has good resistance to salt spray, strong acid and corrosion resistance, good heat dissipation.

Commercial P8mm Outdoor Fixed LED Display Billboard 6500 Nits IP65 Nationstar Lamp

Commercial P8mm Outdoor Fixed LED Display Billboard 6500 Nits IP65 Nationstar Lamp

Physical Pitch 3.2mm 4mm 5mm 6.67mm 8mm
Pixel Configuration SMD 1921 SMD 1818 SMD 2727 SMD 2727 SMD 2727
Pixel Density 97,656 pixels/m² 62,500 pixels/m² 40,000 pixels/m² 22,376 pixels/m² 15,625 pixels/m²
Module Dimensions (W × H) (mm) 192 × 192 320 × 160 320 × 160 320 × 160 320 × 160
Panel Dimensions (mm) 960 × 960 × 150
NO.of Modules Per Panel (W × H) 5 × 5 3 × 6 3 × 6 3 × 6 3 × 6
Physical Resolution of Module (W × H) 60 × 60 80 × 40 64 × 32 48 × 24 40 × 20
Physical Resolution of Panel (W × H) 300 × 300 240 × 240 192 × 192 144 × 144 120 × 120
Panel Material Steel / Aluminum
Weight (m²) 65 / 45
Gray Scale 16 bit
Colours 281 trillion
Contrast Ratio 2,000 : 1
Average Power Consumption 360 W/m²
Max Power Consumption 900 W/m²
Average Power After Energy Saving - - - 90 W/m² 90 W/m²
Max Power After Energy Saving - - - 230 W/m² 230 W/m²
Brightness >6,500 nits
Refresh Rate >1,920 Hz
Viewing Angle 160°(V)140°(H)
Expected Lifetime 100,000 Hrs
Servicing Rear
IP Rating IP65
Operating Temp/Humidity -20℃- 50℃ / 10% - 90%
Storage Temp/Humidity -20℃-50℃ / 10% - 90%
Scan Method 1/16 Scan

Commercial P8mm Outdoor Fixed LED Display Billboard 6500 Nits IP65 Nationstar Lamp

LED Vision Technology Limited  , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.

BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.

BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
