Lightweight Fixed Outdoor Waterproof Led Advertising Panels 160°/140° Viewing Angle
Lightweight Fixed Outdoor Waterproof Led Advertising Panels 160°/140° Viewing Angle
Lightweight Fixed Outdoor Waterproof Led Advertising Panels 160°/140° Viewing Angle
Lightweight Fixed Outdoor Waterproof Led Advertising Panels 160°/140° Viewing Angle
Lightweight Fixed Outdoor Waterproof Led Advertising Panels 160°/140° Viewing Angle
Lightweight Fixed Outdoor Waterproof Led Advertising Panels 160°/140° Viewing Angle
Lightweight Fixed Outdoor Waterproof Led Advertising Panels 160°/140° Viewing Angle
Lightweight Fixed Outdoor Waterproof Led Advertising Panels 160°/140° Viewing Angle
Specifications
Brand Name :
Bakovision
Model Number :
BDF Series
Certification :
CE ETL FCC RoHS ISO CCC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000 sqm/month
Delivery Time :
15 days
Packaging Details :
Wooden case or flight case
Physical Pitch :
8mm
LEDs :
Nationstar
Receiver Card :
Novastar
IP Rating :
IP65/IP54
Servicing :
Front/Rear
Viewing Angle :
160°/140°
Brightness :
≥5500nits
Contrast Ratio :
4000:1
Description

P8mm Lightweight Outdoor Fixed LED Display for Advertising 1024mm×768mm


Features

  • High refresh rate>1920Hz
  • Die casting cabinet, slim and light weight, 27-32kg per cabinet. Ideal substitution for traditional outdoor bulky and heavy cabinet.
  • Outdoor waterproof with IP65, fully adapt to outdoor environment.
  • Suitable brightness adjustable for outdoor day and night.
  • Special fast lock system design guarantees a quick and easy installation.
  • Wide viewing angle. 160° for horizontal, 140° for vertical. What is more, cabinet can be reclined between 0-30 degree to ensure the best angle for audience.


Application: DOOH display, Stage Rental, Window Display, Bar Club, Car Show, Building Façade, Stadium, Exhibition Hall, Reception Hall, Chain Store, Theme Resort, Shopping Mall.

Specification

Physical Pitch8mm
Pixel ConfigurationSMD2727
Pixel Density15,625 pixels/m²
Module Dimensions512×256mm
Panel Dimensions1024×768×100mm
NO. of Modules Per Panel2×3
Physical Resolution of Module64×32dots
Physical Resolution of Panel128×96dots
Panel MaterialDie - Casting
Single Cabinet Weight35kg
Grayscale16bit
Colors281trillion
Contrast Ratio4000:1
Average Power Consumption350W/ m²
Max Power Consumption700 W/ m²
Refresh Rate＞1920Hz
Brightness＞5500nits
Expected Lifetime100,000Hrs
ServicingFront/Rear
IP Rating(Front/Rear)IP65/IP54

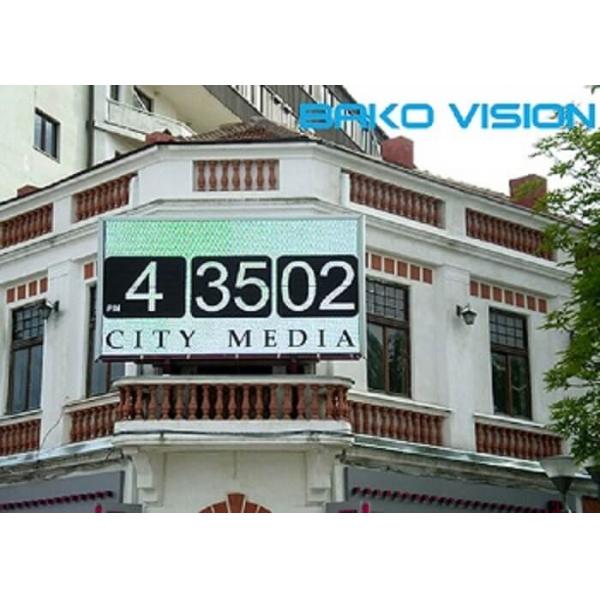

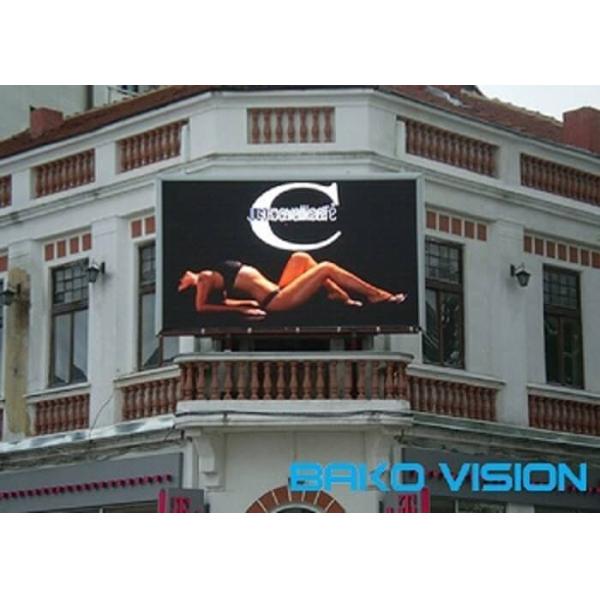

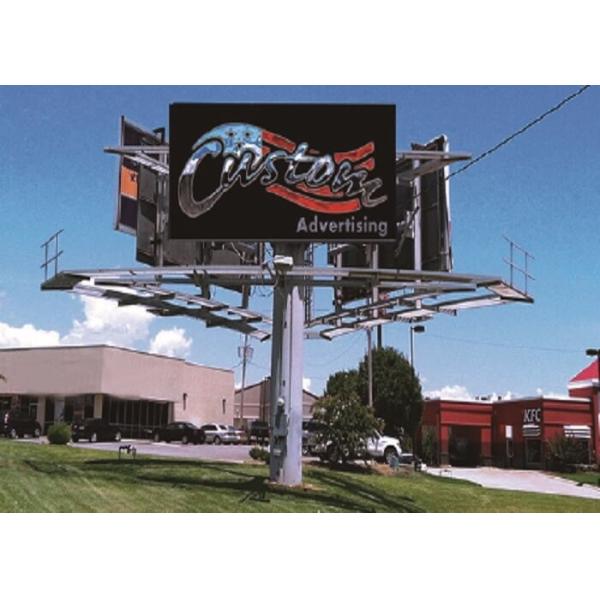

Case
Lightweight Fixed Outdoor Waterproof Led Advertising Panels 160°/140° Viewing Angle























Lightweight Fixed Outdoor Waterproof Led Advertising Panels 160°/140° Viewing Angle


































Our services
Pre-producing

  • Get complete requirements of clients.
  • To do a thorough analysis.
  • Offer a most reasonable and scientific solution.
  • Customized design.


In producing

  • Producing progress updating for clients.
  • Particular installation CAD and design diagram for clients.


After service

  • 2 years free maintenance.
  • 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers.
  • Free training for customers in factory.
  • Engineer onsite guide if needed.
