P10 SMD Module Size 320X320mm Full Color 6500 Nits Outdoor Fixed Advertising Screen
P10 SMD Module Size 320X320mm Full Color 6500 Nits Outdoor Fixed Advertising Screen
P10 SMD Module Size 320X320mm Full Color 6500 Nits Outdoor Fixed Advertising Screen
P10 SMD Module Size 320X320mm Full Color 6500 Nits Outdoor Fixed Advertising Screen
P10 SMD Module Size 320X320mm Full Color 6500 Nits Outdoor Fixed Advertising Screen
P10 SMD Module Size 320X320mm Full Color 6500 Nits Outdoor Fixed Advertising Screen
P10 SMD Module Size 320X320mm Full Color 6500 Nits Outdoor Fixed Advertising Screen
P10 SMD Module Size 320X320mm Full Color 6500 Nits Outdoor Fixed Advertising Screen
Specifications
Brand Name :
BAKO VISION
Model Number :
BOF
Certification :
CCC, CE, FCC, ETL
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100,00 sqm / month
Delivery Time :
20 days
Packaging Details :
Plywood Case/ Flight Case
Pixel Configuration :
SMD 3535
Pixel Density :
15,625 pixels/ m²
Module Dimensions (W*H)(mm) :
256*256
Panel Material :
Steel / Aluminum
Viewing Angle :
V:160 Degree / H: 140 Degree
Colors :
281 Trillion
Storage Temp/Humidity :
-20ºC-50ºC/10%-90%
Description

P10 SMD Module Size 320X320mm Full Color 6500 Nits Outdoor Fixed Advertising Screen

Product Description:

1.Fast lock system design guarantees a quick and easy installation
2. Low consumption, stable performance, highly durable
3. High definition, high refresh rate 1,920Hz and 16bits gray scale, give you more colorful video and image.

4. Quick and accurate installation location type, suitable for many different installation environment
5. High screen flatness, location accuracy and seamless connection
6. Environmental adaptability, outdoor all-weather work, IP 65 waterproof.


P10 SMD Module Size 320X320mm Full Color 6500 Nits Outdoor Fixed Advertising Screen

Specifications, the catalogue can be download⇒2. Outdoor Fixed Screen-Rear Service.pdf

BOF-10
Physical Pitch 10 mm
Pixel Configuration SMD 3535
Pixel Density 10,000pixels/m²
Module Dimensions(W*H)(mm) 320*320
Panel Dimensions(mm) 1280*960*150
NO. of Modules Per Panel (W*H) 4*3
Panel Material Steel/ Aluminum
Colors 281 trillion
Brightness >6,500 nits
Weight (kg/m²) 65/45
Processing 16 bit
Refresh Rate >1920 Hz
IP Rating IP65/ IP54
Viewing Angle V:160 degree
H: 140 degree
Expected Lifetime 100,000 Hrs
Operating Temp/Humidity -20ºC-50ºC/
10%-90%
Storage Temp/Humidity -20ºC-50ºC/
10%-90%
Physical Resolution of Module(W*H)(mm) 32*32
Physical Resolution of panel(W*H)(mm) 128*96
Avg./ Max. Power Consumption 360/900W/ panel
Servicing Front/Rear

Outdoor rate

IP65 rating for front and rear

suitable brightness adjustable for outdoor day and night.

Strong and high bright LED

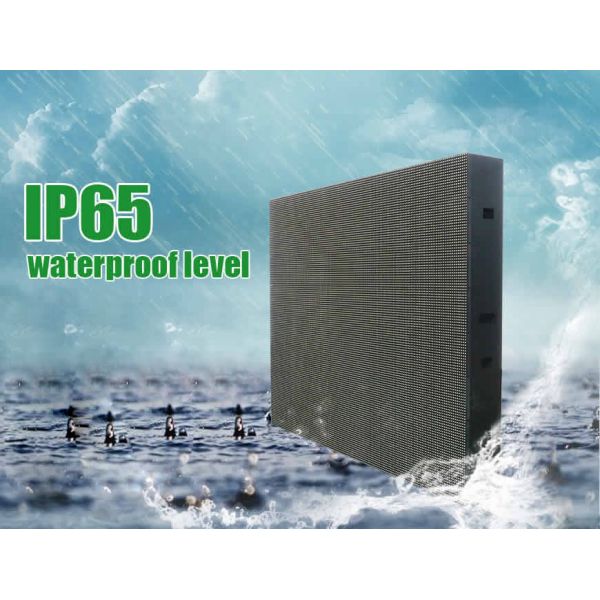

IP65 Waiterproof, you can click the photo as follow and then you will get the video. ↓↓↓↓↓↓↓↓

P10 SMD Module Size 320X320mm Full Color 6500 Nits Outdoor Fixed Advertising Screen

Control system

P10 SMD Module Size 320X320mm Full Color 6500 Nits Outdoor Fixed Advertising Screen

Front and Rear Maintence

1.Easy to assemble and dissemble with special hexagon wrench

2. All modules are cross color enhancing, and the edge compression is strong, not deformation, the flatness of display cabinet will be better

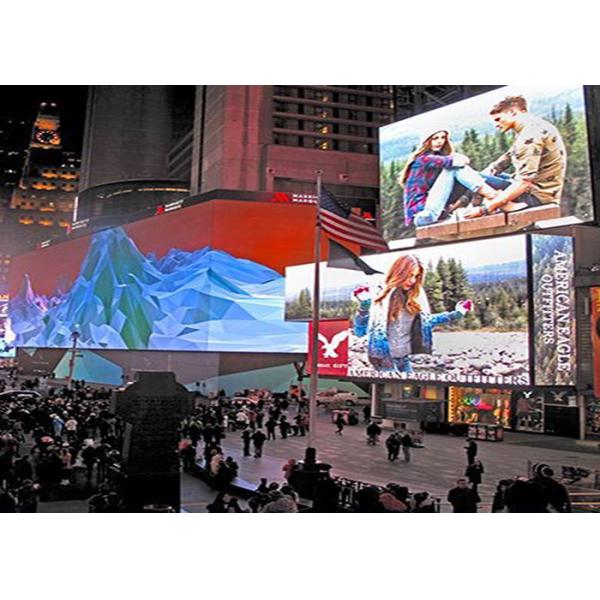

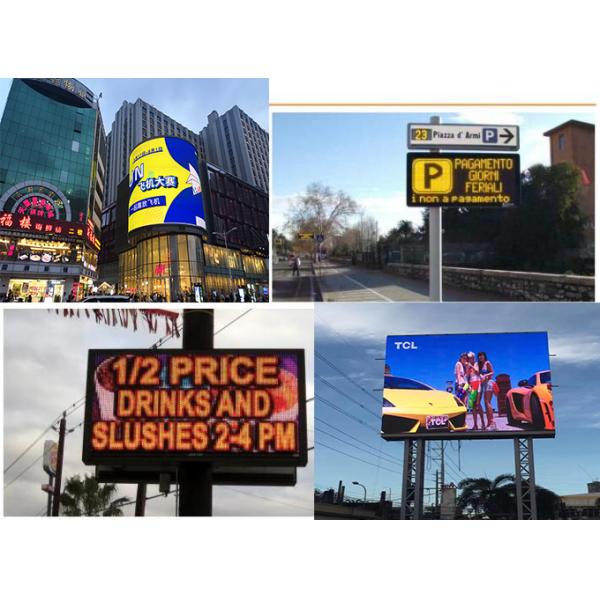

Widely application.

P10 SMD Module Size 320X320mm Full Color 6500 Nits Outdoor Fixed Advertising Screen

For 16:9 Aspect Ratio .Best view angle

Display brightness adjustable:According to changes in ambient light to adjust the brightness of the display (6500nit), to ensure that the human eye best viewing comfort and display while saving energy and environmental protection, greatly reducing your operating costs.

P10 SMD Module Size 320X320mm Full Color 6500 Nits Outdoor Fixed Advertising Screen

Main Export Markets:

  • North America
  • South America
  • Europe
  • Asia
  • Mid East/Africa
  • Pacific

P10 SMD Module Size 320X320mm Full Color 6500 Nits Outdoor Fixed Advertising Screen

Why choose BAKOVISION?

1. Strict processing procedures makes perfect product. Every production procedure, we have QC to check the quality;

2. more than 10 years experience in led display industry, we have most talented engineers to design best products for our clients;

3. Top quality machines to make top quality products;

4. Most competitive price make our led displays are afordable;

5. "Customer first" is our belief. We promise to offer best products w

ith good service for our clients;
