Specifications
Material :
Die-Casting Aluminum
Light :
Nationstar
Driver IC :
MBI5124
Usage :
Outdoor
Warranty :
2 Years
Expected Lifetime :
more than 100,000Hrs
Brand Name :
Bako Vision
Model Number :
BDF
Certification :
CCC,CE,ETL,RoHS,FCC
Place of Origin :
China
MOQ :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
8000m²/Year
Delivery Time :
25 Days
Packaging Details :
Flight case/ Plywood case
Price :
Negotiation
Description

Fixed LED Advertising Billboard Display , P8 Outdoor Led Screen Nationstar 240W

Product Description:

The cabinet appearance is designed according to spaceship,giving people the opinion of beautiful and high-level product.

Features:​

  • 1024*768mm Series, creative appearance
  • Die casting Aluminum,Lighter weight, 35kg
  • Both Front and rear service

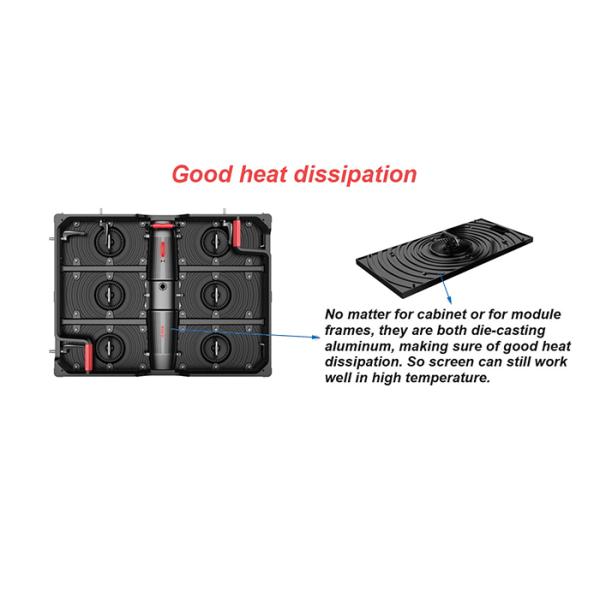

  • Good Heat Dissipation

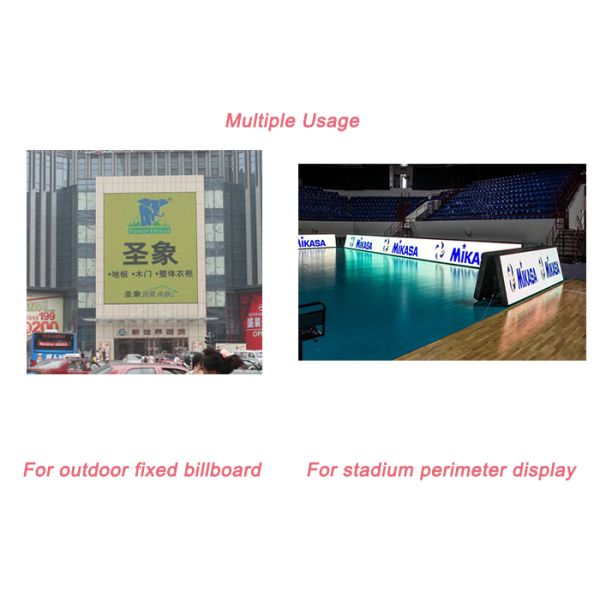

  • Can be transformed to be perimeter display
  • Diecasting module frame, allow the screen to work at hot temperature
  • Strong design, with strong materials, make this product high precision and good quality

Parameters:

Pixel Pitch P3.2 P4 P5.33 P6.4 P8 P10.66 P12.8 P16
LED Type SMD1921 SMD1921 SMD1921 SMD2727 SMD2727 SMD2727 SMD2727 DIP346
Module Size 512*256MM
Cabinet Size 1024*768*100
Module Resolution 160*80 128*64 96*48 80*40 64*32 48*24 40*20 32*16
Cabinet Weight 35KG
Cabinet Material Die-casting aluminum
Gray Scale 16bit
Contrast Ratio 2000:1/4000:1
View Angle(H/V) 160°/140°
Refresh Rate >1920Hz
Brightness ≥5500nits
IP Rating IP65/IP54
Servicing Front/Rear
Operating Temp/Humidity -20℃-60℃/10%-90%
Expected Lifetime 100,000Hrs
Average Power Consumption 240W/panel

Details:

Fixed LED Advertising Billboard Display , P8 Outdoor Led Screen Nationstar 240W

Fixed LED Advertising Billboard Display , P8 Outdoor Led Screen Nationstar 240WFixed LED Advertising Billboard Display , P8 Outdoor Led Screen Nationstar 240WFixed LED Advertising Billboard Display , P8 Outdoor Led Screen Nationstar 240WFixed LED Advertising Billboard Display , P8 Outdoor Led Screen Nationstar 240WFixed LED Advertising Billboard Display , P8 Outdoor Led Screen Nationstar 240WFixed LED Advertising Billboard Display , P8 Outdoor Led Screen Nationstar 240W

Cases:

Fixed LED Advertising Billboard Display , P8 Outdoor Led Screen Nationstar 240W

Company Introduction:

LED Vision Technology Limited  , started in Shenzhen in 2005,a world class manufacturer of

technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.

FAQ

Q1:How to choose a proper led screen for your need?


A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?


Q2:Which pixel pitch should i choose?


A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).


Q3:Which control system should i choose?


A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.


Q4:How to pay?


A:We accept L/C, T/T bank, or paypal or westerunion.

Q5:How to ship?


A:It is optional and we respect customer's choice. You can choose to ship by air cargo, by internation express company, or by sea according to your goods weight and volume and the delivery time you need.

Q6:How to install it after i received it?


A:We will offer you the drawing to guide you for installation, we could also offer steel drawing, software set up drawing or photo or send our engineer fly to you for help if needed.
