Nationstar Indoor Rental LED Display Screen Full Color SMD Fast Installation
Nationstar Indoor Rental LED Display Screen Full Color SMD Fast Installation
Nationstar Indoor Rental LED Display Screen Full Color SMD Fast Installation
Nationstar Indoor Rental LED Display Screen Full Color SMD Fast Installation
Nationstar Indoor Rental LED Display Screen Full Color SMD Fast Installation
Nationstar Indoor Rental LED Display Screen Full Color SMD Fast Installation
Nationstar Indoor Rental LED Display Screen Full Color SMD Fast Installation
Nationstar Indoor Rental LED Display Screen Full Color SMD Fast Installation
Specifications
Brand Name :
BAKO VISION
Model Number :
BIR-I
Certification :
CE,CCC,FCC,ETL,EMC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
6000sqm/month
Delivery Time :
15-25 Working Days
Packaging Details :
Flight case or plywood case
Contrast ratio :
4000:1
Processing :
16bit
Weight :
7kg/cabinet
Pixel Configuration :
SMD2121
LEDs :
Nationstar
Panel size :
500x500x80mm
Panel Material :
Die-casting Aluminum
Expected Lifetime :
100000 Hours
Warranty :
2 years
View Angle :
160 degree
Description

Full color Indoor Rental LED Display Screen SMD Fast Installation

Specifications:

Model BIR-I-2 BIR-I-3 BIR-I-4 BIR-I-6
Physical Pitch 2.97mm 3.91mm 4.81mm 6.25mm
Pixel Configuration SMD2121 SMD2121 SMD2121 SMD3528
Pixel Density 112896 pixels/m² 65536 pixels/m² 43264 pixels/m² 25600 pixels/m²
Module Dimensions
(W× H) (mm)		 250*250/250*500 250*250/250*500 250*250/250*500 250*250/250*500
Panel Dimensions (mm) 500*500*80
500*1000*80		 500*500*80
500*1000*80		 500*500*80
500*1000*80		 500*500*80
500*1000*80
NO .of Modules Per Panel (W × H) 2x2 2x2 2x2 2x2
Physical Resolution of Module ( W× H) 84*84/64*168 64*64/64*128 52*52/52*104 40*40/40*80
Panel Material 168*168/128*336 128*128/128*256 104*104/104*208 80*80/80*160
Single Cabinet Weight 7/13KG/Panel 7/13KG/Panel 7/13KG/Panel 7/13KG/Panel
Panel Material Die-Casting Aluminum Die-Casting Aluminum Die-Casting Aluminum Die-Casting Aluminum
Processing 16bit 16bit 16bit 16bit
Colour Number 281trillion 281trillion 281trillion 281trillion
Contrast Ratio 4000:1 4000:1 4000:1 4000:1
Average Power Consumption 60/120W/Panel 60/120W/Panel 60/120W/Panel 60/120W/Panel
Max Power Consumption 110/400W/Panel 110/400W/Panel 110/400W/Panel 110/400W/Panel
Operating Temperature -10~60ºC/10~60ºC -10~60ºC/10~60ºC -10~60ºC/10~60ºC -10~60ºC/10~60ºC
Storage Temperature -30~60ºC/10~60ºC -30~60ºC/10~60ºC -30~60ºC/10~60ºC -30~60ºC/10~60ºC
Refresh Rate >1920Hz >1920Hz >1920Hz >1920Hz
Brightness 900-1200nits 900-1200nits 900-1200nits 900-1200nits
Horizontal Viewing Angle 160° 160° 160° 160°
Vertical Viewing angle 140° 140° 140° 140°
Max Stacking 20/10 20/10 20/10 20/10
Max Hanging 20/10 20/10 20/10 20/10
Expected Lifetime 100,000hours 100,000hours 100,000hours 100,000hours
Servicing Front/Rear Front/Rear Front/Rear Front/Rear
IP Rating (Front/Rear) IP40/IP21 IP40/IP21 IP40/IP21 IP40/IP21
Certification CCC,CE,FCC,ETL CCC,CE,FCC,ETL CCC,CE,FCC,ETL CCC,CE,FCC,ETL

BIR-I Indoor Rental LED Display

One Chassis, Various Module Options

TUV Certificated and Reddot Awarded (Private Model)

Cabinet 500mmx500mm or 500mmx1000mm

High Definition Indoor Display

Curvilinear, Concave, Convex

Superior Electrical Features

The dual signal backup port

UI LCD monitoring display indicates

Fast Installation and Easy Maintenance

Truss hanging and ground support both available

Cable-less between modules

Front and rear access

Tools free installation

Unsurpassed Color Uniformity

The unique color calibration process

Tight bin selection for LED wavelength

Deep black levels, contrast ratio 4000:1

Slim, Light Weight and Quiet

500mmx500mm or 500mmx1000mm cabinet

80mm thickness, 7 KG per cabinet

Fanless design

Factory

Nationstar Indoor Rental LED Display Screen Full Color SMD Fast Installation

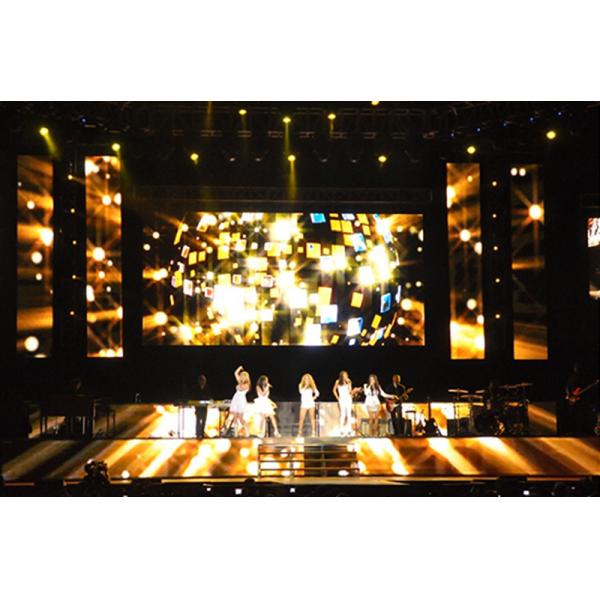

Case:

Project Accomplished: June 12, 2016

Location: US, American Idol Show

Screen Dimension: 256m²

Product Model: BIRI-3, P3.91 Indoor Rental Led Display

Nationstar Indoor Rental LED Display Screen Full Color SMD Fast Installation

Part OF Exhibitions during this year

Nationstar Indoor Rental LED Display Screen Full Color SMD Fast Installation

Our Service:

1. We guarantee all our display, modules, spare parts for TWO years.

2. We provide technology training for free, which contains the operation and maintenance training of the LED display in the factory.

3. After sales, if you have any problem with our products, you can inform us by E-mail, we will reply to you at once.

4. We can provide the training and technical support for the customer in the factory if the customer asks.

5. we have a warehouse in the USA and our engineer stay in the USA to deal with after-sales and provide technical support.

6. We often attend exhibitions around the world every year, so we can visit you if you need at that time.
