Specifications
Brand Name :
BAKO VISION
Model Number :
BOF
Certification :
CCC.CE.ETL.FCC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
6000 m²/month
Delivery Time :
15 -20 days
Packaging Details :
Flight Case/ Plywood Case
Pixel Pitch :
10mm
Brightness :
≥6500nits
Average Power Consumption :
360W/Panel
LEDs :
Nationstar
IP Rating(Front/Rear) :
IP65/IP54
Power Supply :
Meanwell
Control System :
NOVA
Panel Material :
Steel/ Aluminum
Warranty :
2 years
Expected Lifetime :
100000 hours
Description

SMD Waterproof P10 Outdoor LED Display Panel 6500nits High Refresh Rate

Features:
1. Nationstar LEDs, long lifetime with high brightness 6500nits, visible from every direction even face to sunshine directly.
2. SMD technology, LEDs ensure a large viewing angle, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.

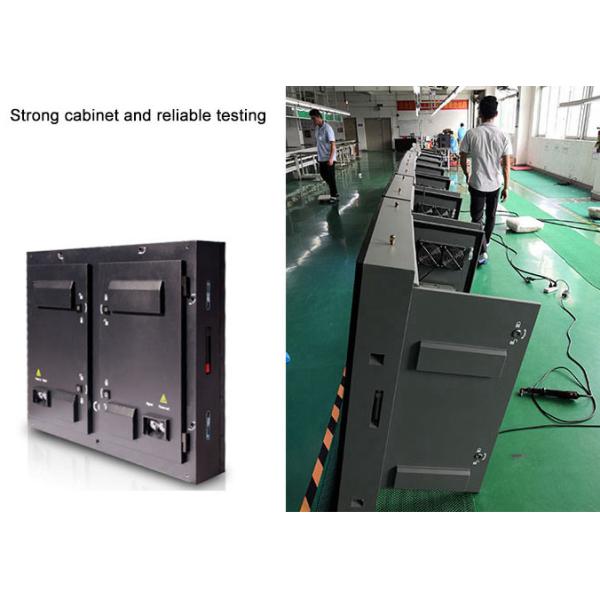

3. Cabinet design lightweight, side handle for easy carrying and assemble job.
4. IP65 waterproof and dust resistance, durable for any weather conditions.
5. Meanwell brand power supply, saving energy and high efficiency.
6. Digital process: 16bits, contrast ratio 2,000:1, vivid color.
7. Front access makes easy maintenance.
8. There can improve the resolution by changing new module with a smaller pixel, no need to purchase a new screen, this can save lots of costs.


Specifications:

Pixel Pitch P4.81 P6.67 P8 P10
LED Type SMD2727 SMD2727 SMD3535 SMD3535
Module Size(mm) 250x250 320x320 256x256 320x320
Panel Size(mm) 1000x1000x150 1280x960x150 1280x768x150 1280x960x150
Module Resolution(WXH) 52x52 48x48 32x32 32x32
Cabinet Weight 65/45kg
Cabinet Material Steel/ Aluminum
Gray Scale 16 bit
Contrast Ratio 2000:1
View Angle(H/V) 160°/ 140°
Refresh Rate >1920Hz
Brightness >6500nits
IP Rating IP65 / IP54
Servicing Front / Rear
Operating Temp/Humidity -20ºC-50ºC / 10%-90%
Expected Lifetime 100,000Hrs
Power Consumption Average: 360W/ Panel, Max: 900W/Panel

SMD Waterproof P10 Outdoor LED Display Panel High Refresh Rate

SMD Waterproof P10 Outdoor LED Display Panel High Refresh Rate

SMD Waterproof P10 Outdoor LED Display Panel High Refresh Rate

About us:

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a professional manufacturer of technologically advanced LED displays, focusing on high-end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

Our main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied on the long term partnership with variety channel customers over 120+ countries.

FAQ:

Q1. Are you a trading company or manufacturer?

A: We are a professional led display manufacturer OVER FOURTEEN YEARS.

Q2. What's your payment term?

A: T/T, L/C, Western Union or others

Q3. Do you provide samples ? is it free?

A: We can provide the sample if we have ready parts in stock, but the customers need to pay the sample cost and the courier cost.

Q4. How about your delivery time?

A: Generally, the sample needs 5-7 days, 15-25 working days for batch order

Q5. How do you ship the goods and how long does it take to arrive?

A: We usually ship goods by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Air Freight and sea shipping are also optional.

Q6. Do you offer a guarantee for the products?

A: Yes, we offer 2 years warranty for our products. we have a warehouse in the USA and our engineer stay in the USA to deal with after-sales and provide technical support.

Q7: How can I get technical support?

A: We will train in our factory and send video for showing. The training includes system use, system maintenance, and equipment protection. We often attend exhibitions around the world every year, so we can visit you if you need at that time.
