Specifications
Brand Name :
Bako Vision
Model Number :
Floor LED
Certification :
CCC, CE, ETL, ROHS
Place of Origin :
CHINA
MOQ :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 M2/Month
Delivery Time :
20 days
Packaging Details :
Wooden case/ Flight case
Pixel Configuration :
SMD2121
Refresh Rate :
>1920 Hz
Panel Material :
Die-Casting Aluminum
Sigle Cabinet Weight :
7/ Panel
Contrast Ratio :
4000:1
Life Span :
100,000 Hrs
Servicing :
Front / Rear
Brightness :
1200 Nits
Price :
$399~999
Description

P3.91 Digital Dance Floor LED Screen Touch Modules SMD For Ground Projection

Products Feature

(1) Interactive Floor and Touch module, The module is equipped with sensors and corresponding IC. Make the video more humanize.

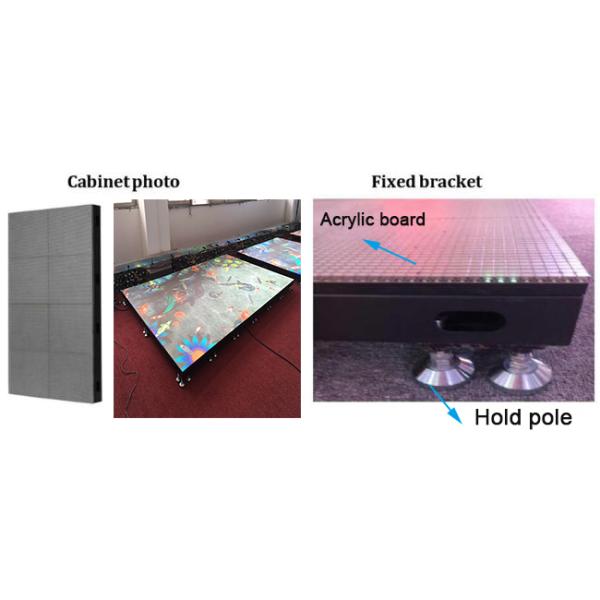

(2) Cabinet Size: 500mm*500mm. Fast locks design, cabinets can be easily assemblied in 7 seconds.

P3.91 Digital Dance Floor LED Screen Touch Modules SMD For Ground Projection


(3) Acrylic Waterproof Interactive Dance Floor led screen.
(4) Strong bearing capacity. Strong and dearable Aluminum Cabinet,highly load earable

P3.91 Digital Dance Floor LED Screen Touch Modules SMD For Ground Projection


(5) Professional cooling channel design, to ensure that the screen body heat export quickly and efficiently, make product performance is not affected by heat .
Parameter

Floor LED Screen
Physical Pitch3.91mm
Pixel ConfigurationSMD2121
Pixel Density 65,536 pixels/m²
Module Dimensions(W*H)(mm)250*250/250*500
Panel Dimensions(mm)500*500*80/500*1000*80
NO. of Modules Per Panel (W*H)2*2
Panel MaterialDie-Casting Aluminum
Colors281Trillion
Processing16 Bit
Physical Resolution of Module(W*H)(mm)64*64/64*168
Physical Resolution of Panel(W*H)(mm)128*128/128*256
Single Cabinet Weight7/13kg/panel
Average Power Consumption60/120W/panel
Max Power Consumption110/400W/panel
Brightness900-1200 nits
Viewing AngleH:160°/ V:140°
Expected Lifetime100,000 Hrs
ServicingFront/Rear
IP Rating(Front/Rear)IP 40/IP21
Max Stacking20/10
Max Hanging20/10
Refresh Rate>1,920 Hz


Pruduct details

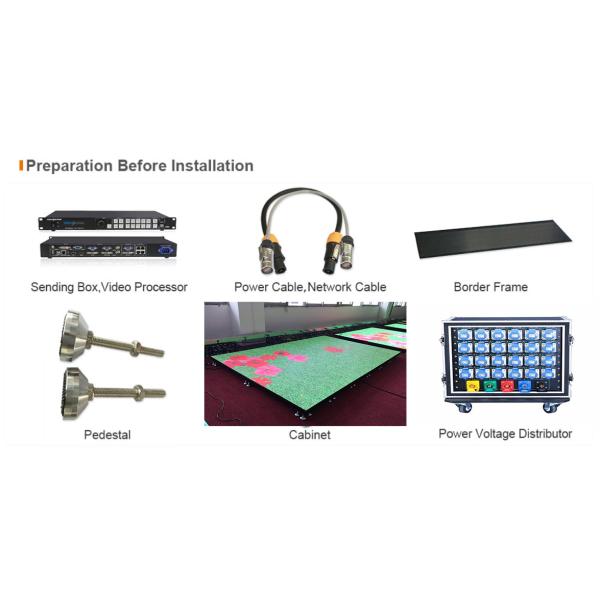

The Installation Procedure of Dance Floor LED Screen.

P3.91 Digital Dance Floor LED Screen Touch Modules SMD For Ground Projection

High refresh rate

P3.91 Digital Dance Floor LED Screen Touch Modules SMD For Ground Projection

P3.91 Digital Dance Floor LED Screen Touch Modules SMD For Ground Projection

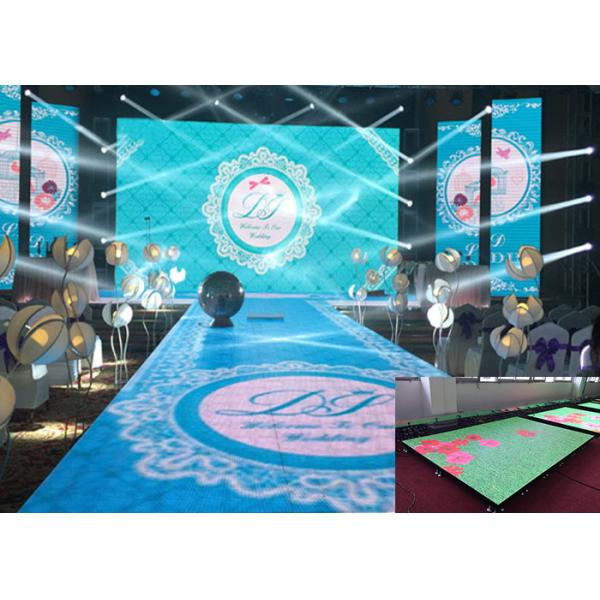

Widely use

P3.91 Digital Dance Floor LED Screen Touch Modules SMD For Ground Projection

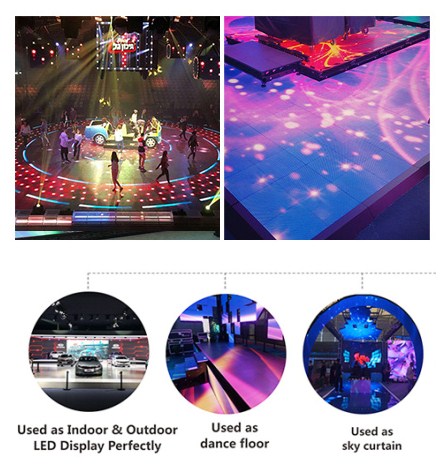

Widely use Stage rental, shopping mall, DJ touring, Weding, car show, fashion store, house of worship,night club and so on.

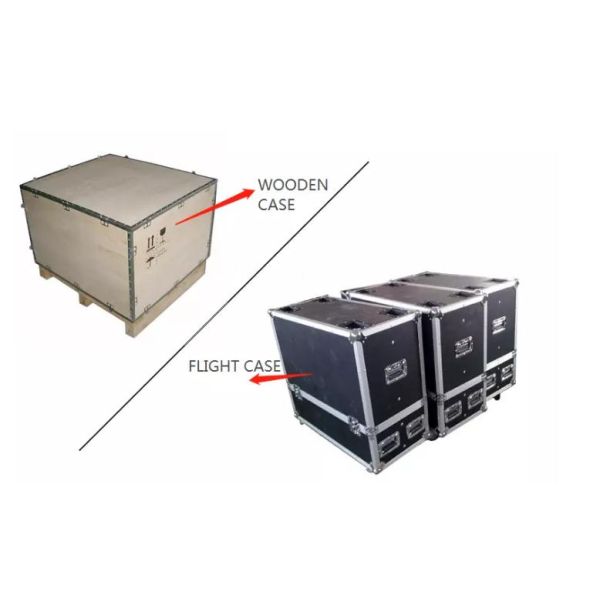

Packing

P3.91 Digital Dance Floor LED Screen Touch Modules SMD For Ground Projection

About us
LED Vision Technology Limited  , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

P3.91 Digital Dance Floor LED Screen Touch Modules SMD For Ground Projection

Why choose BAKOVISION?
1. Strict processing procedures makes perfect product. Every production procedure, we have QC to check the quality;
2. more than 10 years experience in led display industry, we have most talented engineers to design best products for our clients;
3. Top quality machines to make top quality products;
4. Most competitive price make our led displays are afordable;
5. "Customer first" is our belief. We promise to offer best products w
ith good service for our clients;
FAQ

1. How to install it after I received it?
We will offer you the drawing to guide you for installation, we could also offer drawing, software set up drawing or photo or arrange our engineer to help if needed.

2. How could I buy the products I need if there is no price in the website and could I get some samples first?
A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.We welcome sample order to test and check quantity.

3. I would like to ask you if it's possible to have my logo on the product.
A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra-service,so a little bit extra service fee is needed.
