Specifications
Brand Name :
BAKO VISION
Model Number :
BIR-I
Certification :
CE,CCC,FCC,ETL,EMC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
6000sqm/month
Delivery Time :
15-25 Working Days
Packaging Details :
Flight case or plywood case
Contrast ratio :
4000:1
Processing :
16bit
Pixel Configuration :
SMD2121
Refresh Rate :
>1920Hz
Panel size :
500x500mm or 500x1000mm
Panel Material :
Die-casting Aluminum
Expected Lifetime :
100000 Hours
Power Supply :
Meanwell or G-eneergy
Physical pitch :
3.91mm
Control System :
Novastar
Description

Indoor P3.91 Led Display Screen SMD High Resolution Full Color Video Wall

BIR-I Indoor Rental LED Display Screen

Advantages:

1) The appearance is very simple and elegant, looks very high-end

2) With specially designed fast lock system, easy to install and dismantle

3) The new structure design enables diversified installation to meet the hanging-up and stacking requirements.

4) High contrast rate up to 4000:1 by using black LED

5) High refresh rate with NOVA control system, no scanning line when photographed.

6) Due to the lightweight and low power consumption, it can reduce the labor cost, operating cost and transportation cost

7) 16bit color, showing very clear and vivid video and images.

8) Good thermal design, excellent heat dissipation even no fan installation

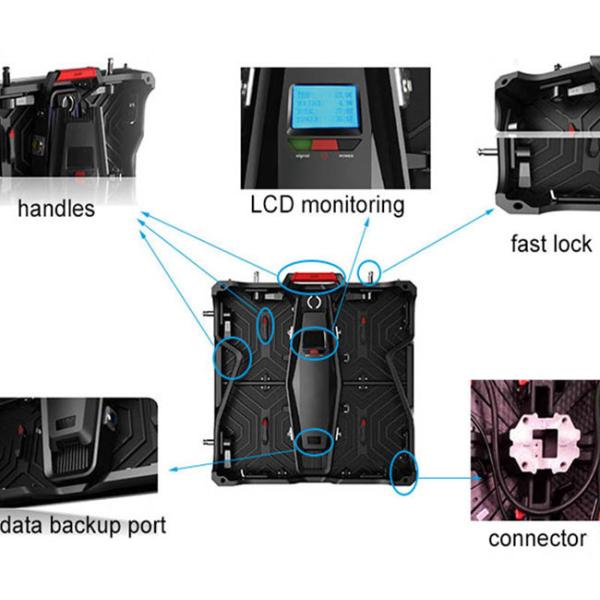

Superior Electrical Features

The dual signal backup port

UI LCD monitoring display indicates

Fast Installation and Easy Maintenance

Truss hanging and ground support both available

Cable-less between modules

Front and rear access

Tools free installation

Unsurpassed Color Uniformity

The unique color calibration process

Tight bin selection for LED wavelength

Deep black levels, contrast ratio 4000:1

Slim, Light Weight and Quiet

500mmx500mm or 500mmx1000mm cabinet

80mm thickness, 7 KG per cabinet

Fanless design

Specifications:

Model BIR-I-2 BIR-I-3 BIR-I-4 BIR-I-6
Physical Pitch 2.97mm 3.91mm 4.81mm 6.25mm
Pixel Configuration SMD2121 SMD2121 SMD2121 SMD3528
Pixel Density 112896 pixels/m² 65536 pixels/m² 43264 pixels/m² 25600 pixels/m²
Module Dimensions
(W× H) (mm)
250*250/250*500 250*250/250*500 250*250/250*500 250*250/250*500
Panel Dimensions (mm) 500*500*80
500*1000*80
500*500*80
500*1000*80
500*500*80
500*1000*80
500*500*80
500*1000*80
NO .of Modules Per Panel (W × H) 2x2 2x2 2x2 2x2
Physical Resolution of Module ( W× H) 84*84/64*168 64*64/64*128 52*52/52*104 40*40/40*80
Panel Material 168*168/128*336 128*128/128*256 104*104/104*208 80*80/80*160
Single Cabinet Weight 7/13KG/Panel 7/13KG/Panel 7/13KG/Panel 7/13KG/Panel
Panel Material Die-Casting Aluminum Die-Casting Aluminum Die-Casting Aluminum Die-Casting Aluminum
Processing 16bit 16bit 16bit 16bit
Colour Number 281trillion 281trillion 281trillion 281trillion
Contrast Ratio 4000:1 4000:1 4000:1 4000:1
Average Power Consumption 60/120W/Panel 60/120W/Panel 60/120W/Panel 60/120W/Panel
Max Power Consumption 110/400W/Panel 110/400W/Panel 110/400W/Panel 110/400W/Panel
Operating Temperature -10~60ºC/10~60ºC -10~60ºC/10~60ºC -10~60ºC/10~60ºC -10~60ºC/10~60ºC
Storage Temperature -30~60ºC/10~60ºC -30~60ºC/10~60ºC -30~60ºC/10~60ºC -30~60ºC/10~60ºC
Refresh Rate >1920Hz >1920Hz >1920Hz >1920Hz
Brightness 900-1200nits 900-1200nits 900-1200nits 900-1200nits
Horizontal Viewing Angle 16 16 16 16
Vertical Viewing angle 140° 140° 140° 140°
Max Stacking 20/10 20/10 20/10 20/10
Max Hanging 20/10 20/10 20/10 20/10
Expected Lifetime 100,000hours 100,000hours 100,000hours 100,000hours
Servicing Front/Rear Front/Rear Front/Rear Front/Rear
IP Rating (Front/Rear) IP40/IP21 IP40/IP21 IP40/IP21 IP40/IP21
Certification CCC,CE,FCC,ETL CCC,CE,FCC,ETL CCC,CE,FCC,ETL CCC,CE,FCC,ETL

Indoor P3.91 Led Display Screen SMD High Resolution Full Color Video Wall

Indoor P3.91 Led Display Screen SMD High Resolution Full Color Video Wall

Indoor P3.91 Led Display Screen SMD High Resolution Full Color Video Wall

About us:

LED Vision Technology Limited  , Stock Code: 871745, started in Shenzhen in 2005, a professional manufacturer of technologically advanced LED displays, is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION product lines have included I/O HD, Creative, Media LED screen, meanwhile, based on our experienced R&D team,

we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.

FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led display manufacturer OVER FOURTEEN YEARS.

Q2. What's your payment term?
A: T/T, Western Union, L/C

Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q4. How about your delivery time?
A: Generally, the sample needs 5-7 days, 15-25 days working days for batch order

Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship goods by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Air Freight and sea shipping are also optional.

Q6. Do you offer a guarantee for the products?
A: Yes, we offer 2 years warranty for our products. we have a warehouse in the USA and our engineer stay in the USA

to deal with after-sales and provide technical support.

Q7: How can I get technical support?
A: We will train in our factory and send video for showing. The training includes system use, system maintenance,

and equipment protection. We often attend exhibitions around the world every year, so we can visit you if you need at that time.
