Specifications
Brand Name :
Bako Vision
Model Number :
P2.97
Certification :
RoSH,EMC,SASO,CE,Form-E,CO,Form-A
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
6000sqm/month
Delivery Time :
7 DAYS
Packaging Details :
Flight case/wooden case
Pixel Pitch :
2.97mm
Pixel Density :
112,896 pixels/m2
Cabinet size :
500*500/500*1000mm
LED Lamps :
SMD2121
Weight :
7/14KG/SQM
Description

SMD2121 Indoor Rental LED Display 140° Viewing Angle For Show Rental

Newest P3 Full Color Video Screen Indoor Stage Rental LED Display With High Brightness

LED Display Rental Key Feature

• Optional of Convex Shaped, Concave Shaped and Wave Shaped screens

• Ultra slim and lightweight

• Rental Slim aluminum structure

• Seamless splicing

• Quick lock system, easy installation

• High refresh rate and high contrast

• Wide viewing angle

• Working status indicator available

Be distinguished by its design, P3 Indoor event audio visual equipment LED video walls are consisted to be the best event production on the market. Aim at high-end market, its quality, reliability and excellent visual effect contribute the most to its success.Dies casting aluminum material design, it only weighs 8KG per unit.With multi fast locks and alignment pins, flatness and seamless are greatly reduced.

LED Display Rental Application

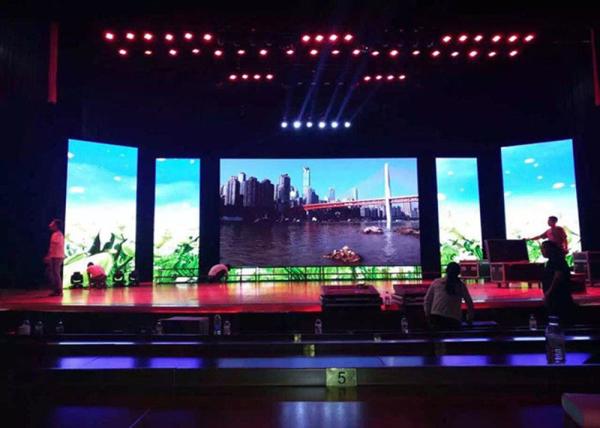

stage performance, bar entertainment, ceremonial wedding, conference, exhibition, musical theater and other event rental application;

LED Display Rental Specification

Model BIR-II-2
Pixel Pitch 2.97mm
Pixel Density 112,896 pixels/m2
LED Type SMD2121
LED Configuration 1R1G1B
Cabinet Dimension 500*500mm
Cabinet Resolution 128*128pixels
Cabinet Weight 7kg
Cabinet Material aluminum
Ingress Protection(front/rear) IP40/IP21
Brightness >1200nits
Viewing Angle(H/V) 140°/140°
Driving Method 1/16 Scan
Frame Refresh ≥ 60Hz
Data Refresh Rate >1500Hz
Gray Scale 16bit
Power Consumption(avg.) 280w/m2
Input Voltage AC 110/220±10%/50~60Hz
Temperature(operating/storage) -20~50°C / -40~60°C
Humidity(operating/storage) 10%~90%RH/10%~85%RH
MTBF ≥1000hrs
Life Span ≥100000hrs
Pixel Failure <0.0002

FAQ

Q1. How to proceed an order for LED display?

1. let us know your demands or application.

2. We give you offer according to your requirements or our suggestions.

3. You confirms the offer and documents then pay deposit for start order.

4. We arrange the production,and inform you producing status.

Q2. What about the lead time?

LED Module and Parts: 1-7working days LED Display Panels: 5-20working days

Q3. Do you have any MOQ limit for led light order?

A: Sample for checking is available

Q4. What about shipping and how long does it take to arrive?

1. Our nearest ports are Shenzhen ,Guangzhou or Hongkong.

2. By Express: 5 - 7 Days / By Air:5 - 10 Days / By Sea: 20 - 40 Days.

3. Delivery to your address directly,and you just wait the items at your door and no need do anything.

Q5. You can print my logo on led display?

Can, Please send us your LOGO design and confirm with us before our production.

Q6. The display received in parts?I have to install each part together?

Yes, but it's quite easy. We will send you the instruction and also can remote to support you for operate the software, everything.

Q7: How about guarantee and deal with the faulty?

1. 2-5 years warranty.

2. Make sure 100% no quality problems before shipping.

3. Provide 1% free main parts of module and power supply, and suggust you buy more parts for long time maintenance,and guide you how to repair. 4.For defective batch products, we will repair them and resend to you or send you a new led screen or refound you the payment.
