Specifications
Brand Name :
Bako Vision
Model Number :
P2.97
Certification :
CE,CCC,ETL,FCC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000 sqms/month
Delivery Time :
25-30days
Packaging Details :
Plywooden case
Panel Material :
Steel/Aluminum
Brightness :
>6,000 nits
Servicing :
Front
IP Rating(Front/Rear) :
IP65/IP54
Refresh Rate :
>1,920 Hz
Processing :
16 bit
Description

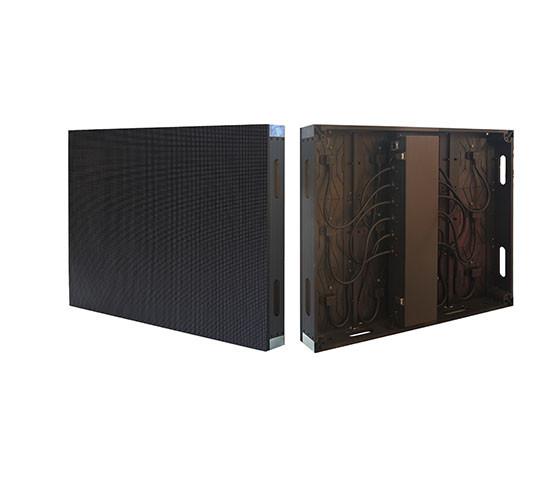

Front-access P2.97 outdoor led video display panel with 6,000nits brightness

P2.97 outdoor led video display panel Specification

  BOF-B-2.97
Physical Pitch 2.97 mm
Pixel Configuration SMD1921
Pixel Density 112,896 pixels/m²
Module Dimensions (W × H) (mm) 250 x 250
Panel Dimensions (mm) 500x1,000mm
NO .of Modules Per Panel (W × H) 2 x 4
Physical Resolution of Module (W × H) 84 x 84
Physical Resolution of Panel (W × H) 168 x 168
Panel Material Steel / Aluminum
Weight(m²) 65/45
Processing 16 bit
Colours 281 trillion
Contrast Ratio 2,000 : 1
Average Power Consumption 360W/m²
Max Power Consumption 900 W/ m²
Brightness 6,000 nits
Refresh Rate >1,920 Hz
Horizontal Viewing Angle 160°
Vertical Viewing angle 140°
Expected Lifetime 100, 000 Hrs
Servicing Rear
IP Rating IP 65
Operating Temp/Humidity -20℃-50℃ / 10%-90%
Storage Temp/Humidity -20℃-50℃ / 10%-90%
Scan Method 1/8 Scan

Company introduction:

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

The advantages of Shenzhen Bako Vision Technology Co., Ltd:

1. We are engaged in led display industry for more than 12 years;

2. Over 20,000sqm workshop with 500 skilled workers and 100 talented engineers;

3. Export to 200 countries, and 98% got positive feedback from our clients;

4. Some products won reddot award;

5. We not only offer high quality products, but also offer full package solution like offer professional solution, inspection on site, framework drawing, guidance during installation, training, 24 hours online after sales service, etc.

Features of our products:

1. Front-access module design makes easy service;

Front Access P2.97 Outdoor Fixed LED Display With 6000nits Brightness

2. IP65 for module waterproof IP rate;

Front Access P2.97 Outdoor Fixed LED Display With 6000nits Brightness

3. Inside cabinet, dust-proof net is embedded, esp for installation location such as near highway, desserts area, etc;

4. Exhausted fans are embedded inside cabinet box for heat sink, since high temperature is the killer of led display;

5. For location like sea island or highway, we offer double deck cabinet, and brush more thicker layer of paint for preventing humidity;

6. For outdoor ads display, we only recommend clients of Nationstar leds, because of reliability and excellent performance;

7. Once order is fixed, we will make design of framework for our clients for reference, based on actual installation location;

8. In the middle of installation, we send engineer to guide our clients how to do installation;
