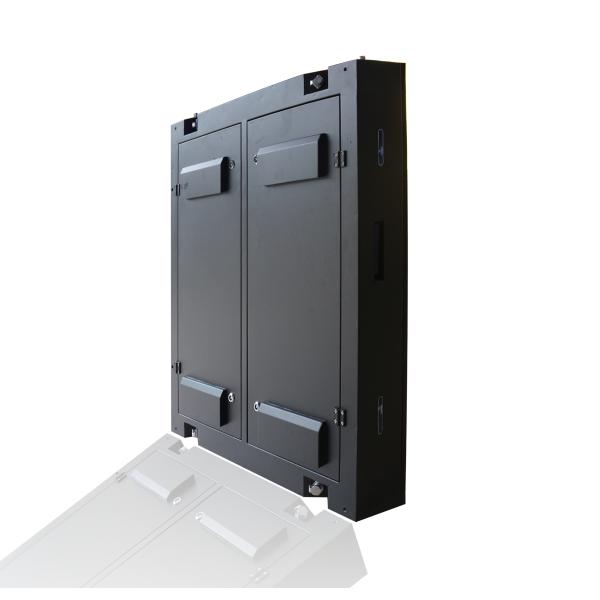

Outdoor LED Display P10 SMD LED Billboard Large Advertising Sign with Nationstar LEDs
Outdoor LED Display P10 SMD LED Billboard Large Advertising Sign with Nationstar LEDs
Outdoor LED Display P10 SMD LED Billboard Large Advertising Sign with Nationstar LEDs
Outdoor LED Display P10 SMD LED Billboard Large Advertising Sign with Nationstar LEDs
Outdoor LED Display P10 SMD LED Billboard Large Advertising Sign with Nationstar LEDs
Outdoor LED Display P10 SMD LED Billboard Large Advertising Sign with Nationstar LEDs
Specifications
Brand Name :
Bako Vision
Model Number :
BOF-B Series
Certification :
CE ROHS EMC ETL FCC CCC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000 sqm/month
Delivery Time :
15-25 days
Packaging Details :
Plywood case
Pixel Pitch :
P3, P4, P5, P6.67, P8, P10, P16
Pannel Material :
Steel/Aluminum
Maintenance Way :
Front/Rear
Refresh Rate :
＞1920Hz
Brightness :
＞5500 nits
IP Rating(Front/Rear) :
IP65/IP54
Contrast Ratio :
2000:1
Average Power Consumption :
90W/m2 - 360W/m2
Max. Power Consumption :
230W/m2 - 900W/m2
Warranty :
2-5 Years
Description

Outdoor LED Display P10 SMD LED Billboard Large Advertising Sign with Nationstar LEDs http://www.ledrentaldisplays.com

BOF Series (BOF-B.pdf)

Outdoor LED Display

Specifications
Pixel Pitch(mm): 3 / 4 / 5 / 6.67 / 8 / 10 / 16
Brightness(nits): Up to 7000
Refresh Rate(Hz): >1920
Key Point: Most common outdoor LED billboard

Key Features

  • Customized Cabinet Size and Design.
  • Steel/ Aluminum Cabinet.
  • Back Service.
  • SMD 3in1 Technology.
  • Waterproof with IP65.
  • Wide View Angle.

LED Billboard Electricity Parameter

BOF-4 BOF-5 BOF-6 BOF-8 BOF-10
Physical Pitch 4mm 5mm 6.67mm 8mm 10mm
Pixel Configuration SMD1921 SMD2727 SMD2727 SMD3535 SMD3535
Module Dimensions 320×160mm
Panel Dimensions(W × H) Customized
Physical Resolution of Module (WxH) 80x40 64x32 48×24 40x20 32×16
Panel Material Steel/Aluminum/Magnesium alloy
Grayscale 16bit
Colors 281trillion
Average Power Consumption 360 W/m2
Max. Power Consumption 900 W/m2
Refresh Rate ＞1920Hz
Brightness > 5000 nits > 5500 nits > 6000 nits > 6200 nits > 6500 nits
Expected Lifetime 100,000 Hrs
Maintenance Way Rear
IP Rating(Front/Rear) IP65/IP54

Outdoor LED Display P10 SMD LED Billboard Large Advertising Sign with Nationstar LEDs

Outdoor LED Sign Case Study

Outdoor LED Display P10 SMD LED Billboard Large Advertising Sign with Nationstar LEDs

How do I install the outdoor led screen as I am new in this industry?

Outdoor LED Display P10 SMD LED Billboard Large Advertising Sign with Nationstar LEDs

1. About how to install it :

The good thing is, in many countries and regions, there are companies that will do the work for you.

If you don't know much about this industry, we can recommend our partners to help you install your outdoor LED display.

Just hit us up.

2. About how to use and operate :

We will provide online remote technical support, which can teach you how to use the LED display.

If you don't like going that route, we have very clear video tutorials as well that will guide you on how to use and operate your LED display screens.

Third, once you become our customer, you can actually visit our factory and have our guys teach you.

Lastly, if you want to work in this industry for a long time, you can become one of our dealers. We will send our technical staff to your country and train your guys on site every two year.

About Bako Vision

Outdoor LED Display P10 SMD LED Billboard Large Advertising Sign with Nationstar LEDs

  • Over 10 Years Experience on LED Display Screen Manufacturing in China.
  • 3 Years High Quality Warranty Provided.
  • Global Quality Standard with CE, EMC, ROHS, ETL, UL, FCC, ISO9001 Certificated.
  • Overseas Customer in 120+ Countries in The World.
  • Full Capable to Provide the Tailor Work of OEM, ODM.

FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. Will show you the Professional Quality Control Photos before you pay the balance. Then you could see everything by your eyes before the shipment.
Q3. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty for your products.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q7: How can I get technology support?
A:1. We could give you the free training in our factory, which include system use, system maintenance and equipment protection ect.
2. We could teach you by remotely if anything not clear.

Tag: led digital billboard, outdoor led billboard, outdoor led sign
