1/4 Scanning Portable Sports Perimeter LED Display In Football / Baseball Stadium
1/4 Scanning Portable Sports Perimeter LED Display In Football / Baseball Stadium
1/4 Scanning Portable Sports Perimeter LED Display In Football / Baseball Stadium
1/4 Scanning Portable Sports Perimeter LED Display In Football / Baseball Stadium
1/4 Scanning Portable Sports Perimeter LED Display In Football / Baseball Stadium
1/4 Scanning Portable Sports Perimeter LED Display In Football / Baseball Stadium
Specifications
Brand Name :
bakovision
Model Number :
P16
Certification :
CE, Rohs, Fcc, ETL
Place of Origin :
China
MOQ :
1sqm
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1000sqm, 20-25 days
Delivery Time :
20-25days
Packaging Details :
wooden box or flight case
Led chip :
Epistar
Power supply :
Meanwell with PFC function
driver IC :
MBI5124
Led type :
DIP346
Scan method :
1/4 scanning
Brightness :
7500nits
Description

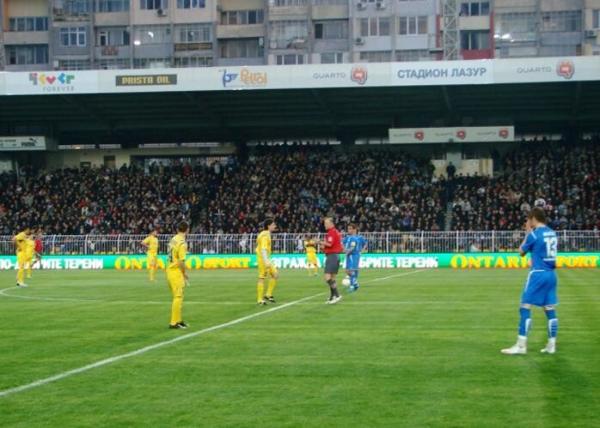

Portable Sports Perimeter Led Display in Football Stadium, Led Video Screen Board

Stadium perimeter LED display's Advantages:
1. High Refresh Rate, No Blinking When Live Show Switch
The refresh rate is more than 3840HZ, under the professional camera and video camera shooting, there is no smear scintillation on the screen, the whole screen is stable, successfully solved the problem of gray scale loss under high refresh rate, guarantees HD and exquisite display, fully fulfill the meet the need of flicker-free when live show.
2. Independent Supporting Beams With Adjustable Angel
Adjustable back supporting beam, customers can adjust the view angel very freely to achieve the best view effect.
3. Lighter weight
High quality super light box with hidden handle, very lighted weighted to save the shipping cost and reduce labor intensity.
4. To Protect the Players Being Injured
Unique soft mask and support soft proctor, very good shock buffering to protect the player being hurt even collision.
5. High Performance Designed for Outdoor
Waterproof design on the cabinet, IP65 with good heat dissipation.




Applications:
Advertising media, sports stadiums, public area, Football game, basketball game, swimming, pool golf game etc.

Parameter:

ITEMPARAMETERS
ModelSD10
Pixel Pitch (mm)10
Physical Density (dot/m2)10000
LED Configuration1R1G1B
LED TypeDIP346
Module Size (mm x mm)160x160
Module Resolution (PX x PX)16x16
Module Power Consumption (W)17
Drive Mode1/4 Constant Current Drive
Horizontal Viewing Angle (Deg)120
Vertical Viewing Angle (Deg)50
Brightness (cd/m2)7,500
Grey Scale16 bits
Refresh Rate (Hz)1920
Cabinet Resolution (PX x PX)128x96
Cabinet Max Power Consumption (W)799
Cabinet Average Power Consumption (W)270
Cabinet Size (mm x mm)1280x960
Cabinet Weight (Kg)68
Cabinet Thickness (mm)150
Cabinet MaterialSteel/Aluminum
Color (M)>16.7
Input Voltage (V)AC 110V~220V+/-10%
Refresh Frame Frequency (Hz)60
Protection LevelIP65
Working EnvironmentOutdoor
Working Temperature (ºC)-30°- +60°
Operation humidity (RH)10%-95%
CertificatesCCC ,CE,RoHS

1/4 Scanning Portable Sports Perimeter LED Display In Football / Baseball Stadium
