Cree Led Chip Soccer Field Advertising Boards Static Driving Good Color Uniformity
Cree Led Chip Soccer Field Advertising Boards Static Driving Good Color Uniformity
Cree Led Chip Soccer Field Advertising Boards Static Driving Good Color Uniformity
Cree Led Chip Soccer Field Advertising Boards Static Driving Good Color Uniformity
Cree Led Chip Soccer Field Advertising Boards Static Driving Good Color Uniformity
Cree Led Chip Soccer Field Advertising Boards Static Driving Good Color Uniformity
Specifications
Brand Name :
bakovision
Model Number :
P16
Certification :
CE, Rohs, Fcc, ETL
Place of Origin :
China
MOQ :
1sqm
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1000sqm, 20-25 days
Delivery Time :
20-25days
Packaging Details :
wooden box or flight case
Led module size :
1024*768mm
Led chip :
Cree
Power supply :
Q-energy
driver IC :
MBI5153
Led type :
DIP346
Description

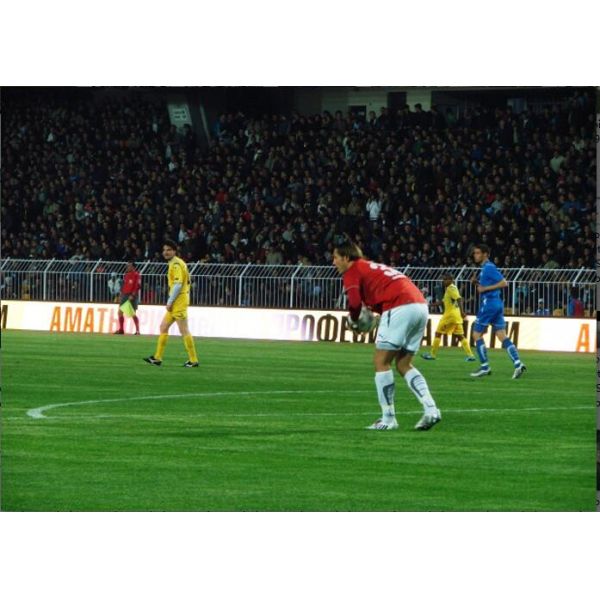

High Brightness of 8,000nits Sports Perimeter Led Display Static Driving Led Billboard

Stadium perimeter LED display's Features:

1. Soft mask: We have our own design for soft mask. For one thing, this can protect players and for
another, it can also protect LED panel.

2. Adjustable angle: There is supporter at the back of cabinet. So the view angle can be adjusted accordingly.
3. Soft rubber protector on the top of cabinet: We will put a soft rubber protector on the top of each cabinet to protect players
4. Adjustable angle: There is supporter at the back of cabinet. So the view angle can be adjusted accordingly.

5. Good color uniformity: Since 3 LED chips are encapsulated in one lamp, SMD color uniformity is much better than DIP so the showing effect is perfect.
6. Good waterproof protection: Front is IP65 and back is IP54. There is totally no problem for outdoor application.
7. Big view angle: SMD view angle is bigger than DIP.Its view angle is 160°for horizontal and 110°for vertical.
8. Good color uniformity: Since 3 LED chips are encapsulated in one lamp, SMD color uniformity is much better than DIP so the showing effect is perfect.
9. Energy saving: power consumption is a key factor for LED billboard. BAKO’s LED display is designed with low power consumption to help clients to save energy.

Applications:

Advertising media, sports stadiums, public area, Football game, basketball game, swimming, pool golf game etc.

Parameter:

Pixel Pitch 16mm
Pixel Density 3,906dots/sqm
Color Configuration 1R1G1B
LED Encapsulation DIP346
Module Size 256mm x 256mm
Module Resolution 16dots x 16dots
Drive Duty Static Constant Current
Brightness >8,000nits
Viewing Distance 16m - 160m
Viewing Angle H: 120°, V: 70°
Refresh Rate 2,000HZ
Frame Rate 120frame/sec
Grey Grade 256levels of Each Color
Color Grade 16.7M
Power Input AC110V/ 220V/ 50HZ
Max Power Consumption 1,600W/sqm
Ave. Power Consumption 400W/sqm
Storage Temperature -40℃ - +80℃
Working Temperature -20℃ - +60℃
Blind Spot Rate <1/10,000
MTBF >10,000 Hours
Life Span >100,000 Hours
Waterproof IP65
Operating Humidity 10% - 95%
Control System Synchronous, Asynchronous
Operating System Win 98, Win2000, XP, 07.etc
Input Source All Format (AVI, MPEG,VOB, RM, etc)
Certificate CE, LVD, RoHS
