Specifications
Brand Name :
BAKO VISION
Model Number :
BHD
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
8000m²/month
Delivery Time :
20-25 days
Packaging Details :
Flight Case
Frame Refresh :
≥60HZ
Driving Method :
1/13 Scan
Input Voltage :
AC 110/220±10%
Temperature :
-20~50℃/ -40~60°C
Pixel Density :
43264 pixels/m²
Pixel Failure :
<0.0003
Description

Indoor LED Display SMD2121 with High Definition and Exquisite Image

2-BHD.pdf

Indoor LED Display Description:

Indoor rental LED display panel is perfectly suited for high end video wall solution. Its magnetic modules can be easily accessed for maintenance at both back and front sides.

Indoor LED Display Feature:

Thin and Light Cabinet:

Simple , ultra thin and light design ,easy to install and transport


Fanless, zero noise, low power consumption, automatic heat dissipation


High Definition and Exquisite Image:
Small-pitch series obtain high contrast and high gray scale, It can realize the HD and exquisite image


Supporting point-to-point correction, to ensure the color and brightness consistency


Exquisite color, clear and natural image with excellent RGB gray scale processing

Indoor LED Display Advantage:

1. Seamless connection with high flatness and soft image


2. Accurate and flexible installation, Buckle design for the sides to realize quick installation and disassembling


3. Professional and standard aviation plug with high quality guarantee

4. Professional after sale service and can reply you in 24hrs.

Indoor LED Display Parameter:

Model BHD-2.5
Pixel Pitch 2.5mm
Pixel Density 160,000 pixels/m2
LED Type SMD2121
LED Configuration 1R1G1B
Cabinet Dimension 480*480mm
Cabinet Resolution 192*192px
Cabinet Weight 8kg
Cabinet Material die casting aluminum
Ingress Protection(front/rear) IP40/IP21
Brightness >1200nits
Viewing Angle(H/V) 140°/140°
Driving Method 1/13 Scan
Frame Refresh ≥ 60Hz
Data Refresh Rate >1500Hz
Gray Scale 16bit
Power Consumption(avg.) 320w/m2
Input Voltage AC 110/220±10%
50~60Hz
Temperature
(operating/storage)
-20~50°C / -40~60°C
Humidity
(operating/storage)
10%~90%RH / 10%~85%RH
MTBF ≥1000hrs
Life Span ≥50000hrs
Pixel Failure <0.0003

Why choose us:

We are a full range manufacturer and LED display solutions provider and its ancillary systems worldwide since 2005.

Our products include ranges of indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sports, advertisement, concerts, shopping malls, stadiums, exhibitions or any other indoor and outdoor events that comes to your imagination.

We keep the company culture ‘’Professional, Concentration, Focus’’ aimed at LED. With the development of led technology and the perfervid competition in the LED field.

Trade Terms:

1. Package: Anti-shaking wooden package, Air flight case or Carton package


2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery


3. Shipping freight are quoted under your requests


4. Shipping port: Shenzhen, China


5. Warranty time: 2years

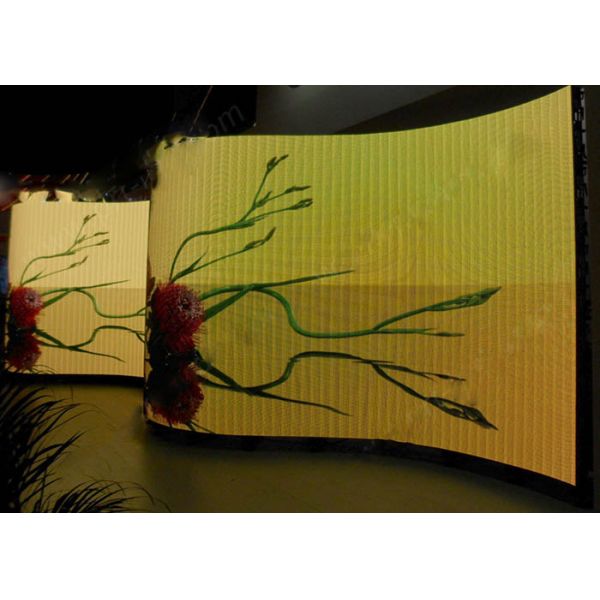

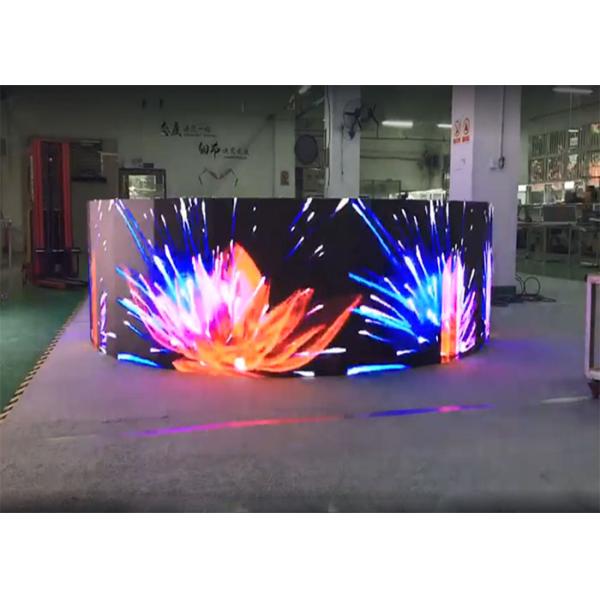

High Definition Commercial Led Screens , SMD2121 Curved Led Screen For Advertising
