Commercial Seamless Joint P4 Led Screen , Outdoor Led Digital Signage For Tourism
Commercial Seamless Joint P4 Led Screen , Outdoor Led Digital Signage For Tourism
Commercial Seamless Joint P4 Led Screen , Outdoor Led Digital Signage For Tourism
Commercial Seamless Joint P4 Led Screen , Outdoor Led Digital Signage For Tourism
Specifications
Brand Name :
BAKO
Model Number :
OD-4
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, D/A, D/P,O/A
Supply Ability :
7000m²/Month
Delivery Time :
20-25Days
Packaging Details :
Flight Case/Wooden Case
Pixel Pitch :
4mm
LED Type :
SMD1921/2525
Brightness :
>6500nits
Data Refresh Rate :
>1500Hz
Gray Scale :
16bit
Life Span :
≥100000hrs
Description

Outdoor Fixed LED Screen,P4, 16bit, Outdoor LED Signage,Seamless,High Brightness

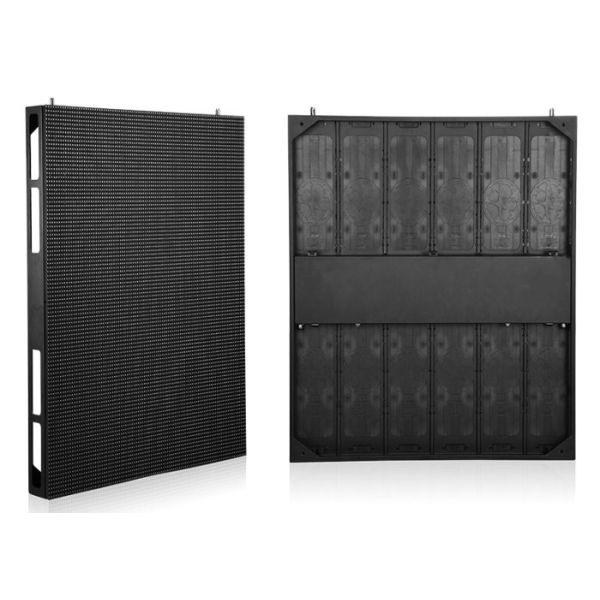

OD Series Outdoor Fixed LED:

OD-4 are providing solutions for outdoor fixed applications such as outdoor advertisement media, government & enterprise project culture & tourism, sports, commercial real estate etc.

Model OD-4
Pixel Pitch 4mm
Pixel Density 62500 pixels/m2
LED Type SMD1921/2525
LED Configuration 1R1G1B
Cabinet Dimension 1024mm*768mm
Cabinet Resolution 256*192pixels
Cabinet Weight 50kg
Cabinet Material cold steel
Ingress Protection
(front/rear)		 IP65/IP54
Brightness >6500nits
Viewing Angle(H/V) 140°/140°
Driving Method 1/8 scan
Frame Refresh ≥ 60Hz
Data Refresh Rate >1500Hz
Gray Scale 16bit
Power Consumption(avg.) 300w/m2
Input Voltage AC 110/220±10%
50~60Hz
Temperature
(operating/storage)		 -20~50°C / -40~60°C
Humidity(operating/storage) 10%~90%RH
/ 10%~85%RH
MTBF ≥1000hrs
Life Span ≥100000hrs
Pixel Failure <0.0003

Commercial Seamless Joint P4 Led Screen , Outdoor Led Digital Signage For Tourism

Deliberated Design

Patented mask covering design, pitch dark surface. Anti-ultraviolet module kit, ensure the main body inflexible and level, fined standard cabinet with seamless joint.

Commercial Seamless Joint P4 Led Screen , Outdoor Led Digital Signage For Tourism

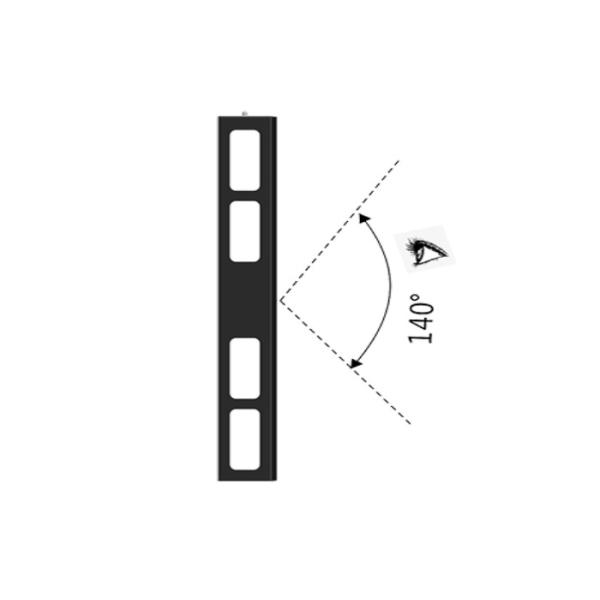

Super Wide Viewing Angle

140° viewing angle to expand the scope of audience making it more suitable for outdoor use.

.Commercial Seamless Joint P4 Led Screen , Outdoor Led Digital Signage For Tourism

High Quality Display

Adopting customized outdoor SMD bead,good color consistency,high contrast and clear picture.

Commercial Seamless Joint P4 Led Screen , Outdoor Led Digital Signage For Tourism

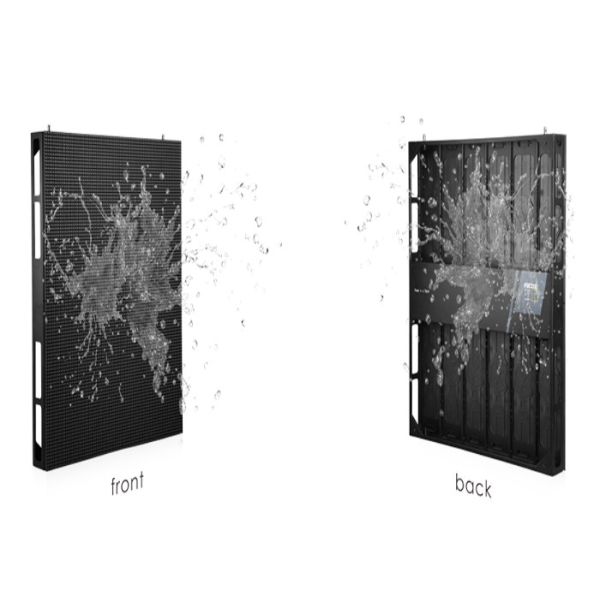

100% Waterproof LED Module

100% waterproof module design,front and back protection level IP65/54,PCB connections replace the traditional electronic line which is safe and reliable.

Commercial Seamless Joint P4 Led Screen , Outdoor Led Digital Signage For Tourism
