Specifications
Brand Name :
Bako Vision
Model Number :
BIR-II
Certification :
CCC,CE,ETL,RoHS
Place of Origin :
China
MOQ :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000 m²/month
Delivery Time :
20 days
Packaging Details :
Wooden Case/ Flight Case
Pixel Configuration :
SMD 2121
Panel Dimensions(W*H)(mm) :
250*250/500*500 mm
Material :
Die-casting Aluminum
Processing :
16 bit
Colours :
281 trillion
Refresh Rate :
>1,920 Hz
Expected Lifetime :
100,000 Hrs
Description

Full Color Stage Led Screen Rental P2.6 P2.97 P3.91 P4.81 Led Video Panel

Indoor Rental LED Display Features:
1.Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.

Full Color Stage Led Screen Rental P2.6 P2.97 P3.91 P4.81 Led Video Panel

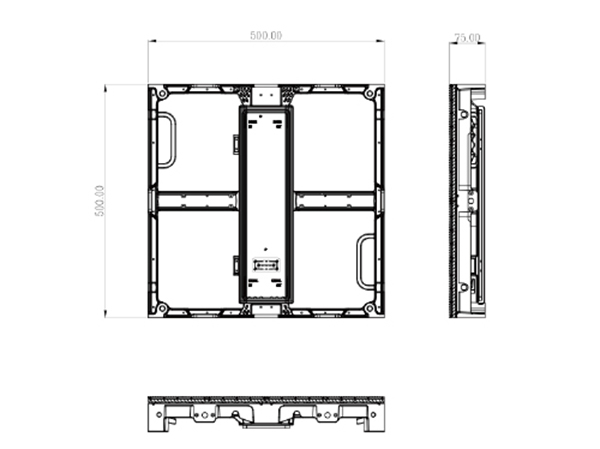

2.Thin cabinet: the thickness is only 80mm, the space of the screen is small , and the entire screen will be more beautiful.

Full Color Stage Led Screen Rental P2.6 P2.97 P3.91 P4.81 Led Video Panel

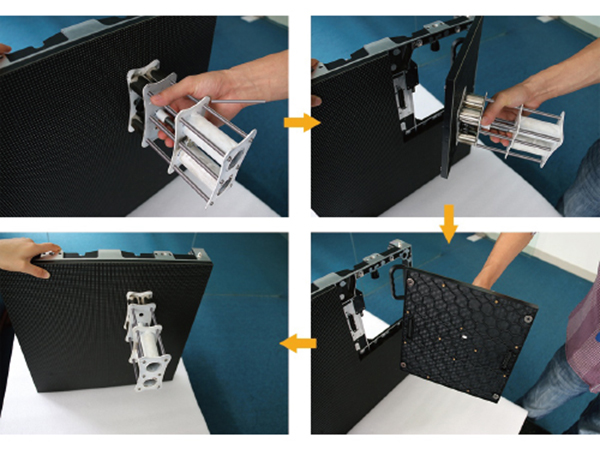

3.Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful. Tools free installation. Cable-less between modules.

Full Color Stage Led Screen Rental P2.6 P2.97 P3.91 P4.81 Led Video Panel

4.Low release heat: low noise, low consumption, low cost, no fan design but excellent thermal design and excellent thermal dispersion.

Full Color Stage Led Screen Rental P2.6 P2.97 P3.91 P4.81 Led Video Panel

5.Concave and convex setup support: client can asselbly any shape of the led wall display to make different show effect compare with common led display panel.

Full Color Stage Led Screen Rental P2.6 P2.97 P3.91 P4.81 Led Video Panel

6.Wide viewing angle; high contrast ratio.

Full Color Stage Led Screen Rental P2.6 P2.97 P3.91 P4.81 Led Video Panel

Parameter:

BIR-II-3 BIR-II-4
Physical Pitch 3.91mm 4.81mm
Pixel Configuration SMD2121 SMD2121
Pixel Density 65,536
pixels/m²
43,264
pixels/m²
Module Dimensions(W*H)(mm) 250*250 250*250
Panel Dimensions(mm)

500*500*75

/500*1000*75

500*500*75

/500*1000*75

NO. of Modules Per Panel (W*H) 2*2/2*4 2*2/2*4
Physical Resolution of Module(W*H)(mm) 64*64 52*52
Physical Resolution of Panel(W*H) 128*128/128*256 104*104/104*208
Single Cabinet Weight 8/14kg/panel 8/14kg/panel
Contrast Ratio 4,000:1 4,000:1
Average Power Consumption 64/128 W/panel 64/128 W/panel
Max Power Comsunption 192/382 W/panel 192/382 W/panel
Operating Temp/Humidity -10ºC-60ºC/10%-60% -10ºC-60ºC/10%-60%
Storage Temp/Humidity -30ºC-60ºC/10%-60% -30ºC-60ºC/10%-60%
Refresh Rate >1,920 Hz >1,920 Hz
Brightness ≥1,200 nits ≥1,200 nits
Horizontal Viewing Angle 160° 160°
Vertical Viewing Angle 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs
Max Stacking 20/10 20/10
Max Hanging 20/10 20/10
Servicing Front/Rear Front/Rear
IP Rating(Front/Rear) IP40/ IP21 IP40/ IP21

ABOUT US:

Full Color Stage Led Screen Rental P2.6 P2.97 P3.91 P4.81 Led Video Panel

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

FAQ:

Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.

Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Q8: How can I get technology support?
A:1,We will train in our factory and send video for showing. The training include system use, system maintenance and equipment protection.
