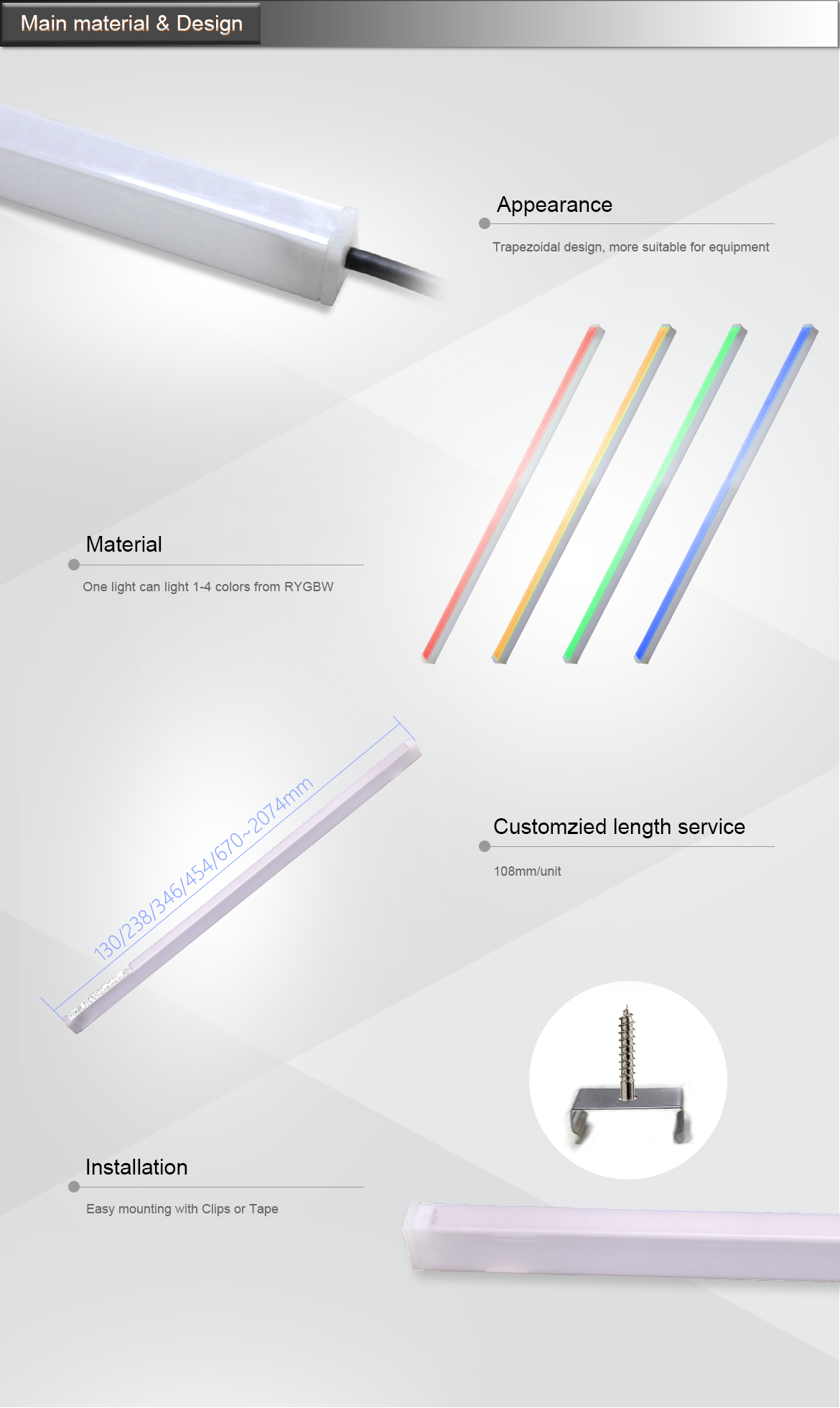

ONN-X2M-12.8 Tri-Color LED Signal Bar Light Designed for CNC Machinery

Product Overview

Ultra-narrow 12.8mm width linear LED strip with aluminum substrate for efficient heat dissipation, IP54 dust & water resistance. Supports multiple color combinations (single/3/4 colors), DC12V/DC24V dual voltage, NPN common positive & PNP common negative wiring. Standard lengths from 130mm to 2074mm, customizable size; adhesive or clip mounting for embedding on automation equipment & robot panels, 18-month warranty.

Quick Detail

• Width: 12.8mm, aluminum PCB, IP54 protection
• Voltage: DC12V / DC24V ±2V, 0.2m standard wire
• Color options: Single(R/Y/G/B/W); 3-color(RYG/RGB); 4-color(RYGB/RGBW/RYGW)
• Power: 4.8W/m for colored; 13.7W/m for white
• Current: 0.2A/m (color); 0.57A/m (white)
• Wiring: Common positive(NPN) / Common negative(PNP)
• Mount: Adhesive glue fixing, optional clip brackets, embedded panel design
• Lifespan: 50,000H, surface temp＜60℃
• Environment: Operate -20~45℃, store -40~70℃, humidity 10%-90%

Specifications

Competitive Advantages

• Slim narrow profile saves machine internal space, embedded step design for flush panel installation
• Aluminum base board improves heat dissipation to reduce light decay and extend service life
• Rich multi-color combinations meet equipment status differentiation needs
• Dual voltage & dual PLC wiring schemes compatible with mainstream industrial control systems
• Two installation ways (adhesive glue / clips) adapt different cabinet & machine structures
• Energy-saving, soft even lighting with wide temperature working range

Applications

CNC machining centers, SMT lines, automated packaging, injection molding, robotics workcells, conveyors, and industrial warning systems.

Package Info

83pcs per carton for all standard lengths

Single net weight: 0.1~0.21kg based on length; outer box size matched to maximum strip length
