Specifications
Certification :
CE FCC ROHS
Functions :
Steady / Flash / Buzzer
Place of Origin :
Guangdong, China
Packaging Details :
450×265×345mm, 72pcs per carton 9kg
Supply Ability :
8000pcs 5-12 working days
IP Rating :
IP65, IP65(No buzzer) / IP30(Buzzer type)
Input Voltage(V) :
AC/DC12V 24V
Brand Name :
ONN
Emitting Color :
Yellow, Green, Red
Price :
$20-24
Model Number :
M4B
Diameter :
50mm
MOQ :
2
Product name :
LED Stack Tower Light
Delivery Time :
5-8 work days
Payment Terms :
T/T
Description

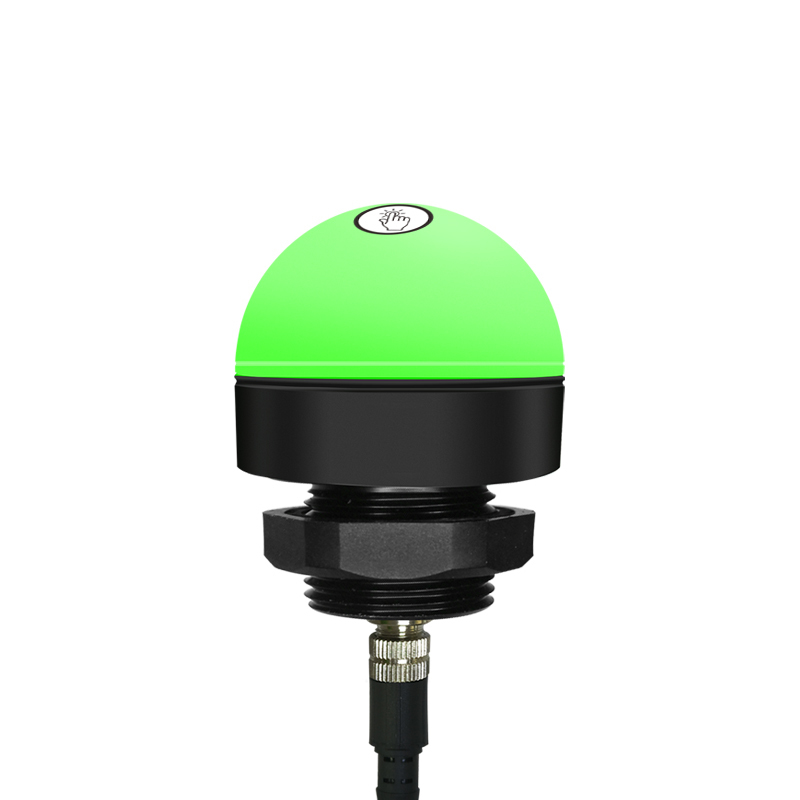

ONN-M4B-50 Touch-Type Single Point Warning Light | 360° Visible, IP50/IP67 Optional

Product Overview

ONN-M4B-50 is compact touch induction signal lamp for automation, stamping machines and multi-station manipulators. DC24V powered with 2835 SMD LEDs, supports red/yellow/green/blue multi-color indication, 360° full-angle visible light. Touch trigger outputs two reverse signals to connect PLC for error-proof detection. IP50 standard / IP67 optional waterproof, M30×1.5 threaded nut mounting, M12 aviation plug & direct wire two wiring options, 18-month warranty.

Quick Detail

  • Touch sensing design, dual reverse signal output for PLC linkage
  • R/Y/G/B multi-color, 360° omnidirectional status display
  • DC24V input, power 0.7–2.2W, single LED 0.2W
  • IP50 standard, IP67 upgrade for splash-proof workshop
  • Dual wiring: M12 aviation plug / direct outgoing wire
  • Working temp: -20℃~45℃, LED life 50,000hrs
  • Panel mounting hole Φ31mm, easy nut fixation
  • 18-month factory warranty

Specifications

Parameter Specification
Model ONN-M4B-50 Touch Version
Input Voltage DC24V
Total Power 0.7~2.2W, single LED:0.2W
LED Source 2835 SMD
Viewing Angle Single lamp 120°, overall 360°
Light Colors Red / Yellow / Green / Blue
Protection Grade IP50 (Default), IP67 (Optional)
Mounting M30×1.5 thread nut, panel hole Φ31mm
Wiring Mode M12 aviation plug / direct wire outlet
Touch Signal Logic Touch: Blue wire 24V→0V, Orange wire 0V→24V
Matching Control PNP external transistor, PLC compatible
Material Aluminum housing + translucent PC shade
LED Lifespan 50,000 Hours
Working Temperature -20℃ ~ 45℃
Warranty 18 Months


Competitive Advantages

  • Built-in touch sensor, simplify equipment circuit design without independent trigger switch
  • Two-channel opposite signal output, adapt diverse PLC programming logic
  • IP67 sealed structure resists water splash, dust and industrial mist
  • Simple threaded nut installation, fast assembly without complicated fixtures
  • Low-power stable circuit, long service life and low after-sales replacement rate

Applications

  • CNC Machine Tools

  • SMT (Surface Mount Technology) Equipment

  • Automatic Assembly Lines

  • Packaging Machinery

  • Industrial Robots and Workcells

  • Process Control Monitoring

Package Info



Pack Item Details
Inner Box Size 210×80×80mm, 1pc per inner box
Outer Carton Size 450×265×345mm, 72pcs per carton
Single Net Weight 0.085 KG
Carton Gross Weight 8.54 KG
Custom Service Neutral carton printing & OEM label support for bulk orders
