ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine
Specifications
Emitting Color :
RYG
Material :
Alluminum Alloy + Acrylic
Mounting :
Fixed base with screws
IP Rating :
IP40
Product Weight（kg） :
1
Warranty(Year) :
2-Year
Application :
cnc machine / automation work line
Input Voltage(V) :
DC 12V/24V/220V
Support Dimmer :
No
Base Type :
AR111
Voltage :
12V/24V/100-240V
Color Rendering Index(Ra) :
80
MOQ :
1
Type :
Equipment Indicator Lights
Function :
Buzzer/Flash/Steady
Beam Angle(°) :
30
Lamp Body Material :
ABS
Lifespan (Hours) :
50000
Certification :
CE RoHS
Color Temperature(CCT) :
Other
Light Source :
LED
Place of Origin :
Guangdong, China
Lighting solutions service :
Lighting And Circuitry Design
Color :
RYG in one
Price :
$11-15
Brand Name :
ONN
Product name :
Led Signal Tower Light
Custom :
Laser printing logo
Description
ONN-M4S-G Led Light RYG Three Colors Working Light for CNC Machine
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine

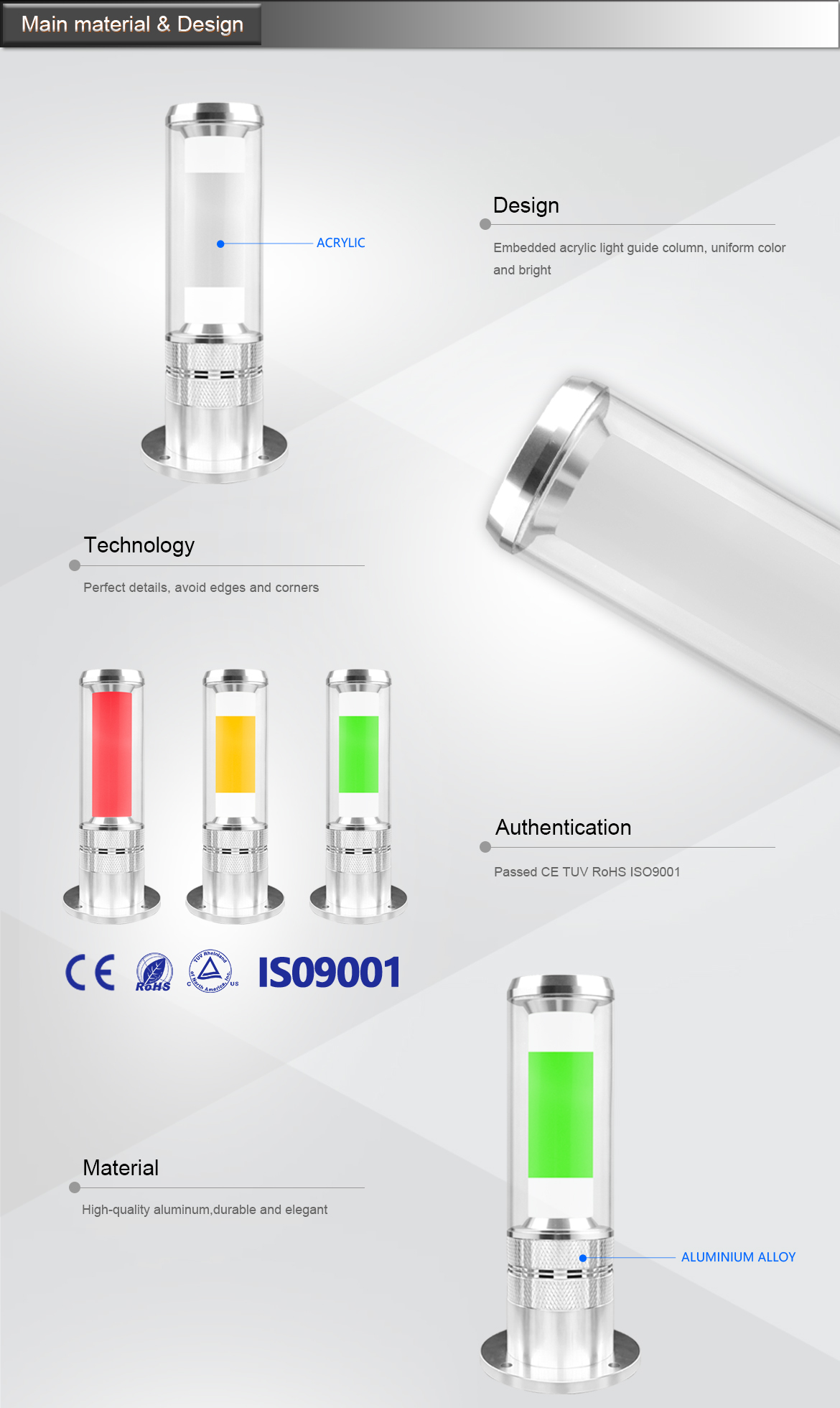

Product Description
1. Embedded acrylic light guide column, uniform color and bright.
2. High brightness LED chip, long lifetime and low decay.
3. High-quality aluminum and acrylic,2-year warranty.
4. Collapsible base, arbitrary adjustment of orientation.
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine

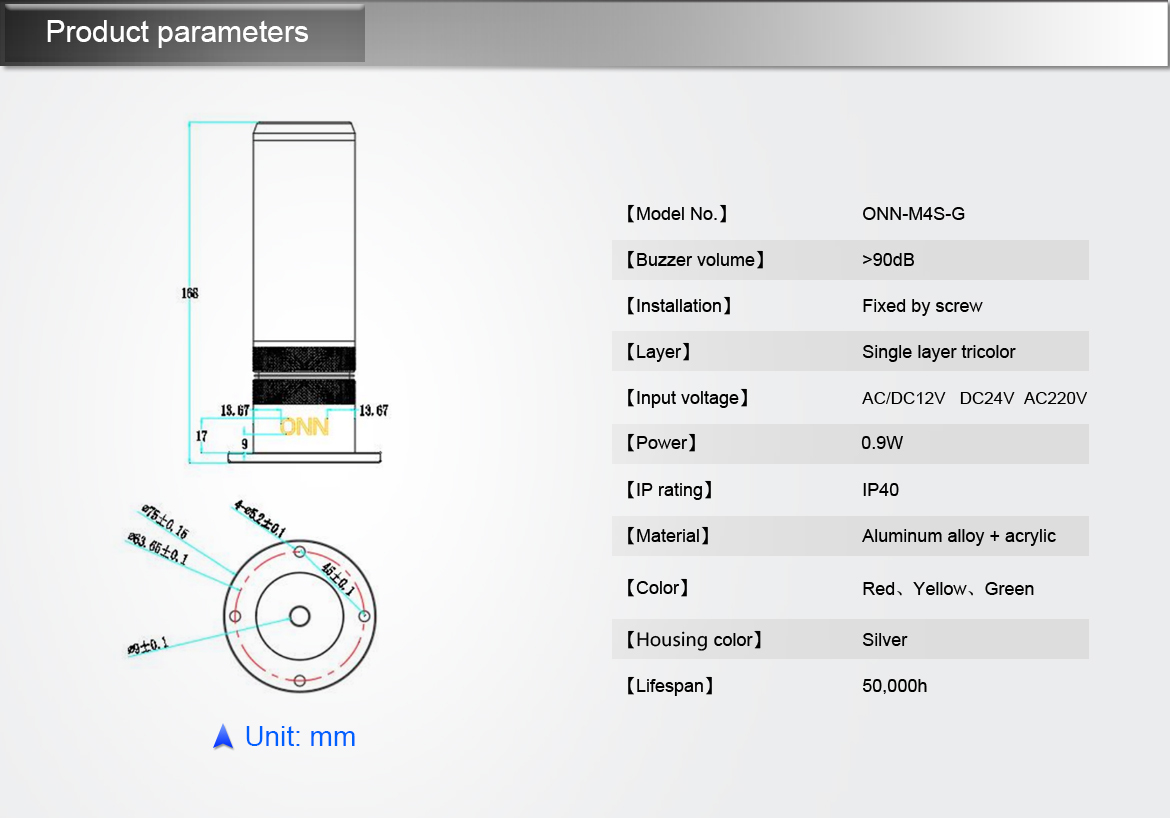

Specifications
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine
Installation
Fixed by screw
IP rating
IP40
Input voltage
AC/DC12V, DC24V, AC100-240V
Buzzer volume
>85dB
Current
110mA for each color
Buzzer: 10mA
Material
PC lens and Aluminum body
Working Temperature
-20~45℃
Lifetime
50,000 hours
Ordering Code
ONN - M4S-G A 3 B T F RYG 50
1 2 3 4 5 6 7
1. Lamp shape
1. baseball pole shape
2. Color
3 color: colors (Red Yellow Green)
3. Voltage
A: AC/DC12V B: DC24V C: AC100-240(50/60Hz)
4. Connect type
C: contact type T: PNP&NPN
5. Function
B: Steady F: Steady with buzzer S: Red flash
C: Red flash with buzzer D: All flash
E: All flash with buzzer
6. Color
R: Red Y: Yellow G: Green
7. Diameter
50: φ50mm

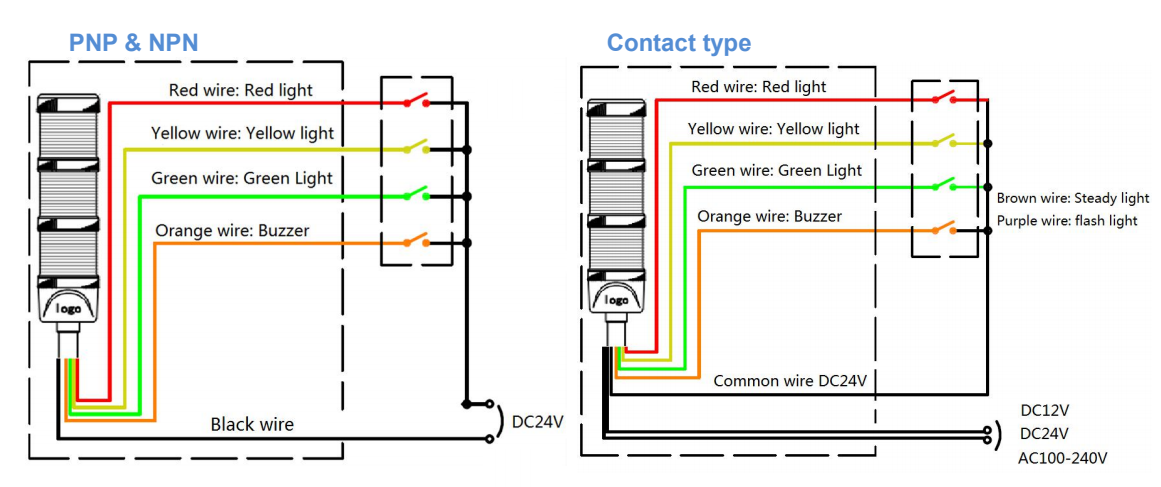

Wiring Instruction
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine
Application

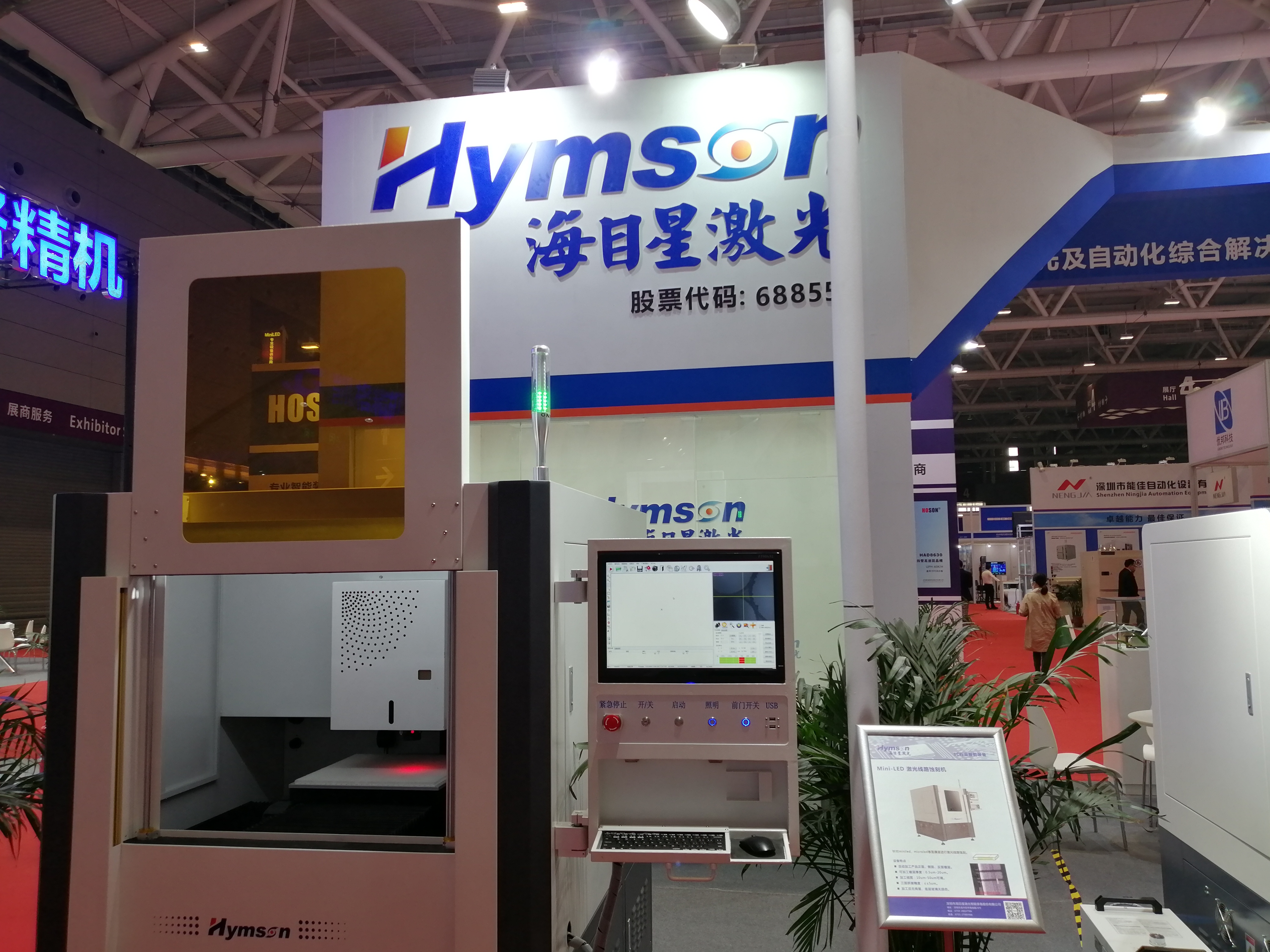

CNC machine, Automatic equipment, SMT equipment etc.
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine
Company Information
Shenzhen ONN Semi-conductor Lighting Co., Ltd. is TUV verified manufacture in Shenzhen . Focusing on focusing on Led machine work light , Led signal tower light , Led freezer light and other kinds of waterproof light for 20 years . Product passed TUV CE ,cTUVus , UL , FCC , CCC , IP67 , IP69K , Atex . ect .
ONN Lighting has a complete range of professional equipment for production, testing and research and development, and we have 6 U shape production lines, 13 workbenches, 2 automated SMT Lines and 1 automation line. Each line equipped LightMES system, we can manage, monitor and trace the status of production on MES Screen and Smartphone. With very strong and flexible production capacity, we can produce average 3500pcs lamps and 160 orders per day.
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine

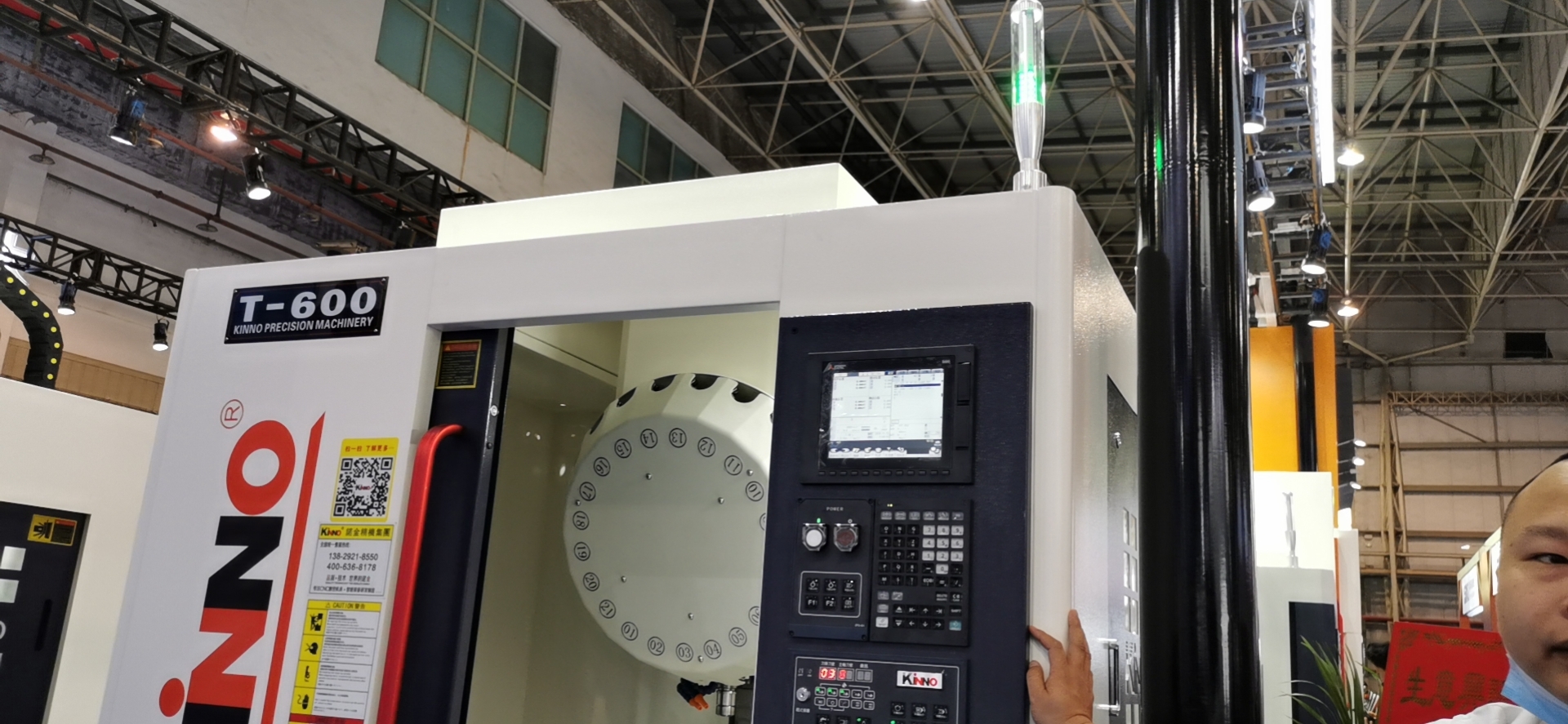

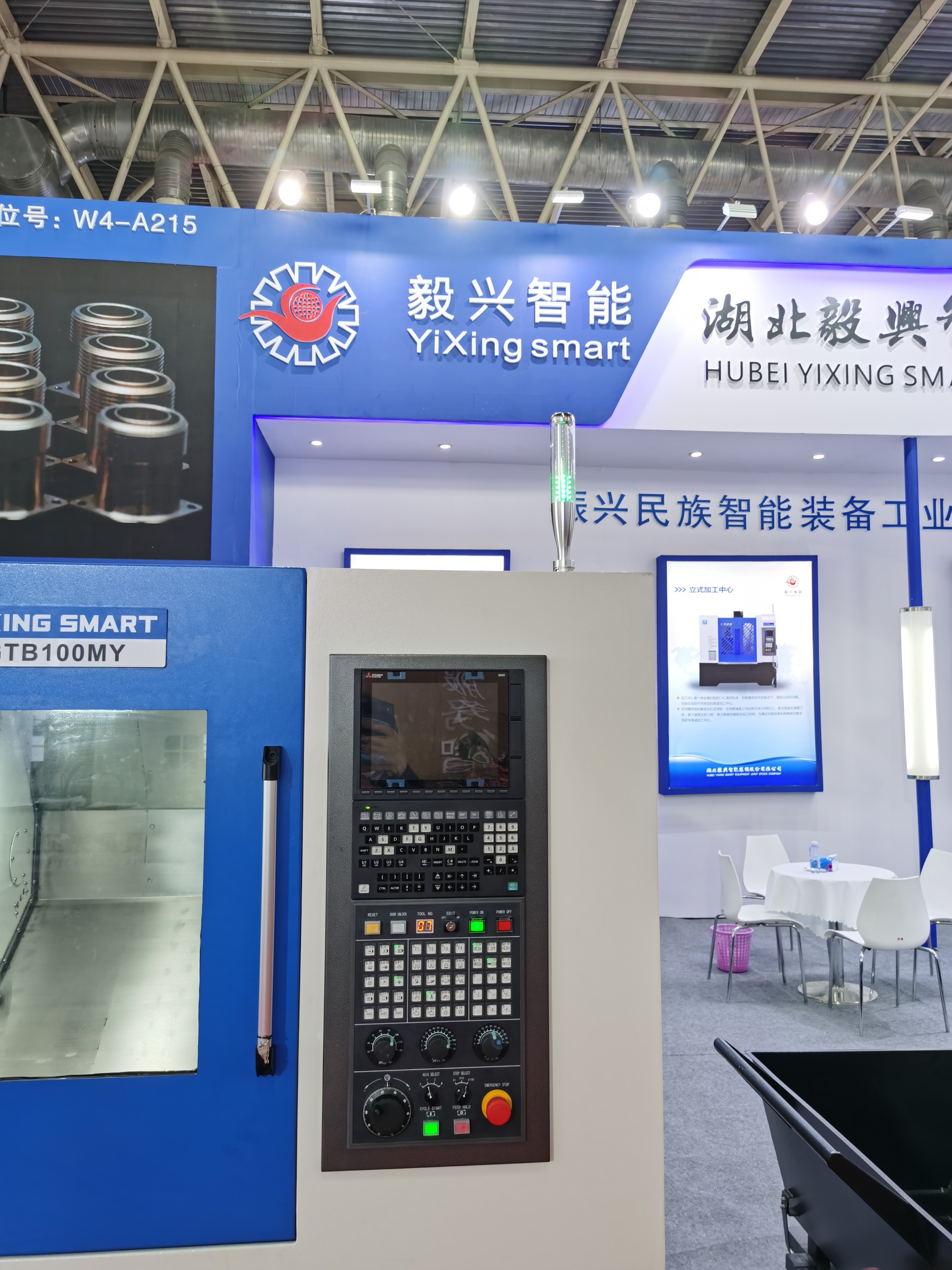

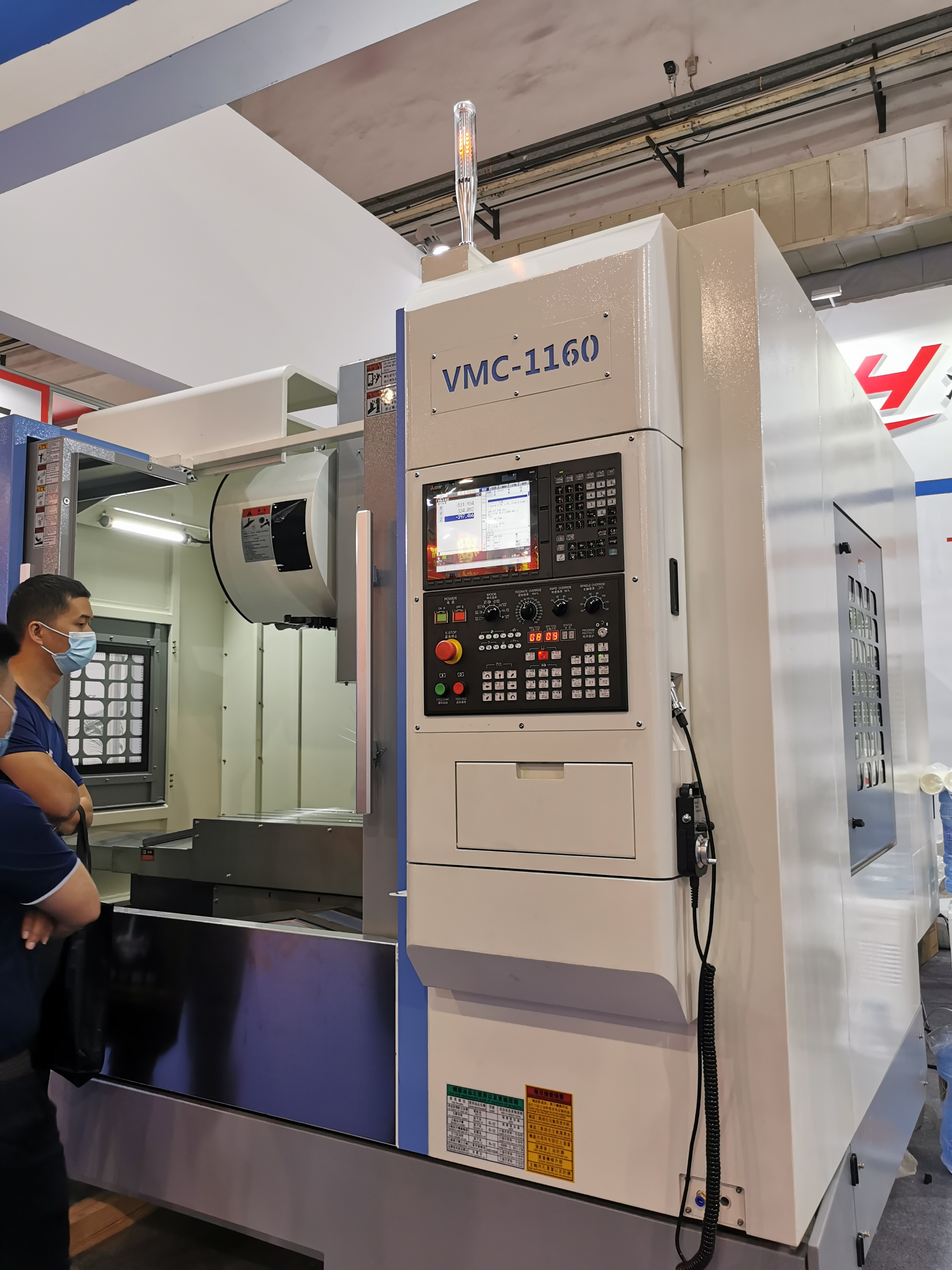

Trade Show
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine

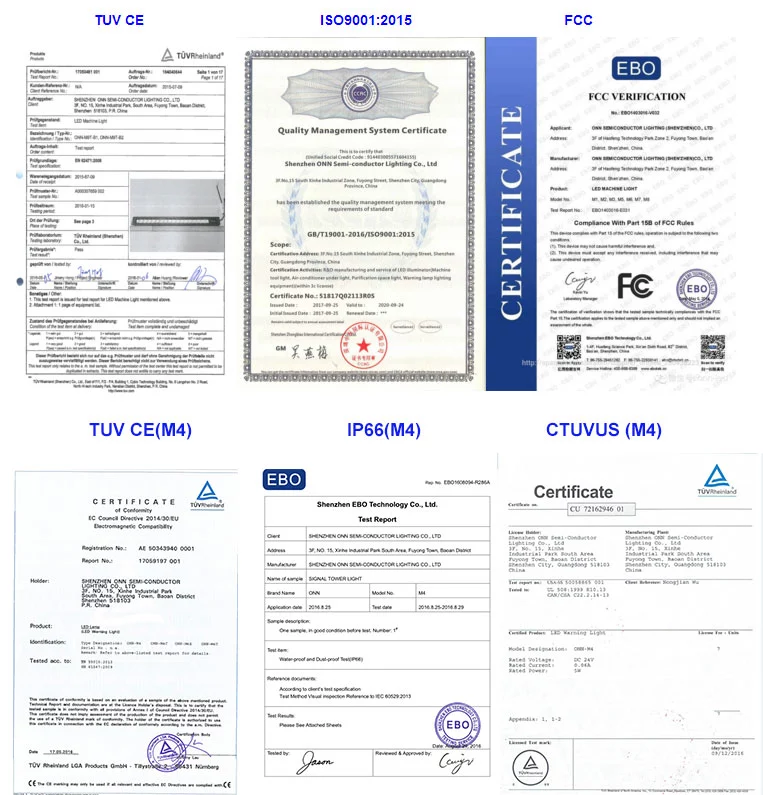

Certifications
ONN-M4S-G LED Light RYG Three Colors Working Light For CNC Machine
