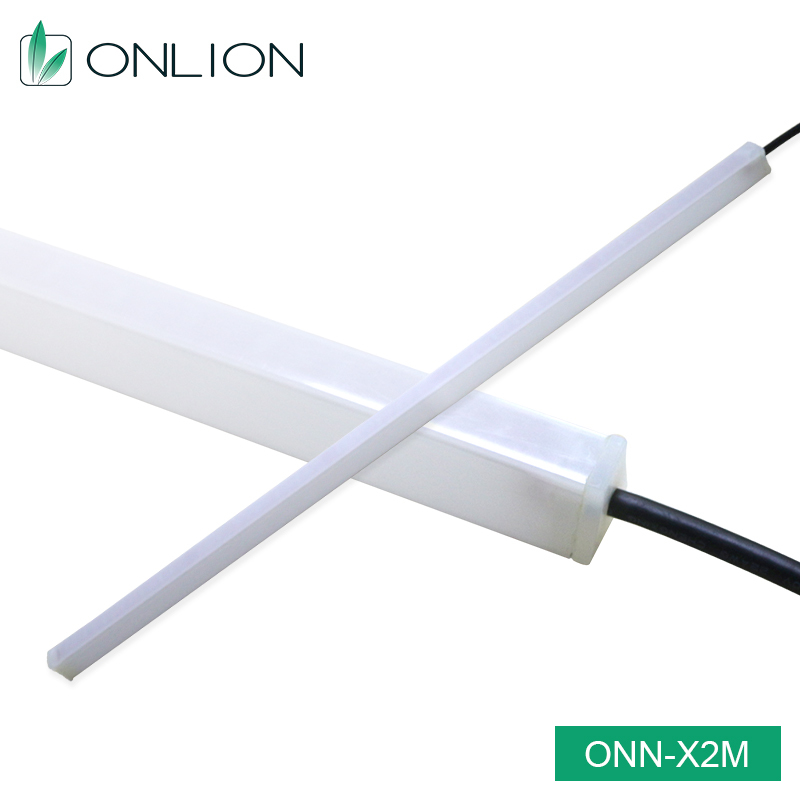

ONN-X2M-Progress Bar DC24V Tri-Color LED Indicator Light CE Certified 220V Input Voltage

Product Overview

Programmable linear progress indicator strip with aluminum PCB, IP54 dust & water resistance. Two communication options: USB 5V or RS485 DC24V, controlled by hex serial codes to adjust layers, colors, steady/flash modes. Supports up to 40 display layers, RGB seven-color customization, multiple fixed widths & customizable lengths (10mm increment). Recessed adhesive/clip mounting for automation equipment production progress visualization, 18-month warranty.

Quick Detail

• Housing: Slim aluminum substrate, 3 width options (12.8/X2M/20 series), IP54
• Power: USB DC5V (1m standard cable) / RS485 DC24V (0.5m standard cable)
• Control: Serial hex code command, 9600 baud rate; up to 40 adjustable layers
• Color: R/Y/G standard, full 7 colors customizable via communication codes
• Mode: Steady light, slow flash, fast flash adjustable by code
• Power draw: 2.5~5W/m, current 0.3A/m, surface temp ＜60℃
• Length: Standard sizes 132~942mm, extendable per 10mm segment
• Mount: Recessed adhesive glue installation, optional fixing clips
• Lifespan: 50,000H
• Environment: Operate -20~45℃, store -40~70℃, humidity 10%-90%

Specifications

Competitive Advantages

• Programmable serial control via USB/RS485, freely adjust progress layers, colors and flash speed
• Multi-size slim profiles, step recess design for flush embedded panel mounting
• Aluminum PCB for excellent heat dissipation, low light decay and long service life
• Rich color & dynamic light modes to visualize production running progress intuitively
• Two power & communication schemes compatible with PC and industrial PLC systems
• Flexible length customization to match different automation equipment dimensions

Applications

CNC machining centers, SMT lines, automated packaging, injection molding, robotics workcells, conveyors, and industrial warning systems.

Package Info

83pcs per carton for all standard lengths
