Specifications
Input Voltage(V) :
DC24V
Functions :
Steady / Flash / Buzzer
MOQ :
1
Supply Ability :
1-800pcs 5-12 working days
Brand Name :
ONN
Payment Terms :
T/T
Lamp Body Material :
PC
Packaging Details :
24 pieces 440*270*350mm 10KG
Warranty(Year) :
2-Year
Emitting Color :
RYG
Price :
$13-18
Model Number :
M4H
Certification :
CE FCC ROHS
Place of Origin :
Guangdong, China
Life span :
50000H
Delivery Time :
5-8 working days
Description

ONN-M4H Indicator LED Warning Light with 95dB Buzzer Aluminum Body for Machinery

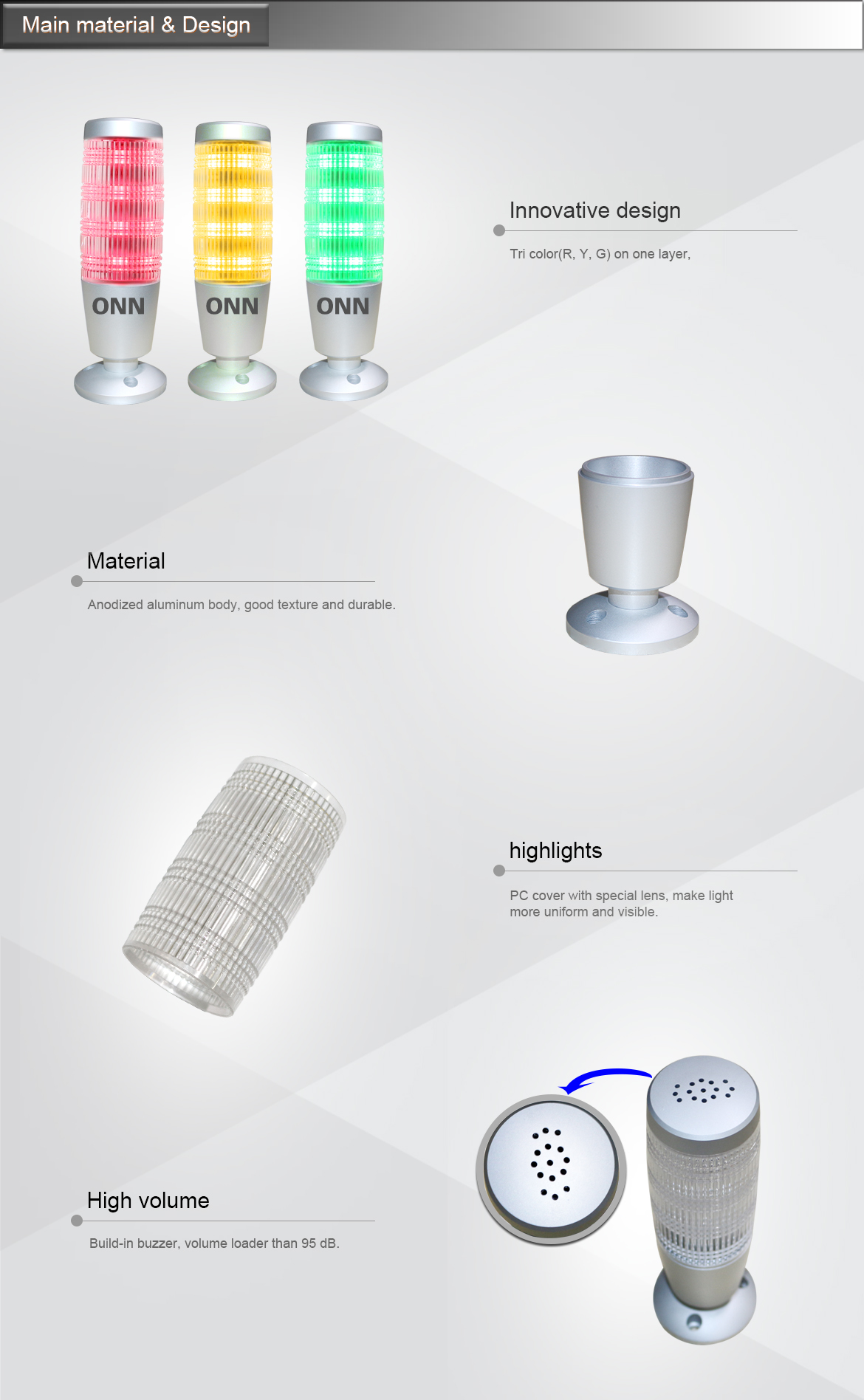

Product Overview

The ONN-M4H is an innovative single-layer LED warning light featuring three colors (Red/Yellow/Green) integrated into one compact unit — eliminating the need for multi-tier stack lights while delivering full visual status indication. The anodized aluminum body provides excellent durability and premium texture, while the PC cover with special optical lens ensures uniform, highly visible light distribution. Powered by SMD5050 LED chips, it delivers high brightness with a 50,000-hour lifespan. An optional >95dB buzzer provides exceptionally loud audible alerts — ideal for high-noise environments. DC24V input with contact or PNP/NPN control. CE/RoHS/FCC certified. 2-year warranty.

Quick Detail

  • Single Layer 3-Color Design: RYG integrated in one unit — space-saving and cost-effective

  • High Volume Buzzer: Optional >95dB alarm — louder than standard stack lights

  • Premium Build: Anodized aluminum body with PC lens and special optical design

  • Uniform Light Distribution: Special lens ensures consistent, even illumination

  • High Brightness: SMD5050 LED chips with 50,000-hour lifetime

  • Voltage: DC24V | Current: 60-200mA | Full Power: 4W

  • Control: Contact type or PNP/NPN

  • IP Rating: IP50 | Mounting: Pole & plate, screw fixing

Specifications



Parameter Specification
Model ONN-M4H
Layer Single layer, 3 colors integrated
Colors Red, Yellow, Green
Full Power 4W
Input Voltage DC24V
Input Current 60-200mA
Operating Temp -20~45°C
IP Rating IP50
Buzzer Volume >95dB (optional)
Material PC lens + Anodized aluminum body
Lifetime 50,000 hours
Diameter Φ48mm
Mounting Pole & plate / Screw fixing
Certification CE, RoHS, FCC
Warranty 2 years

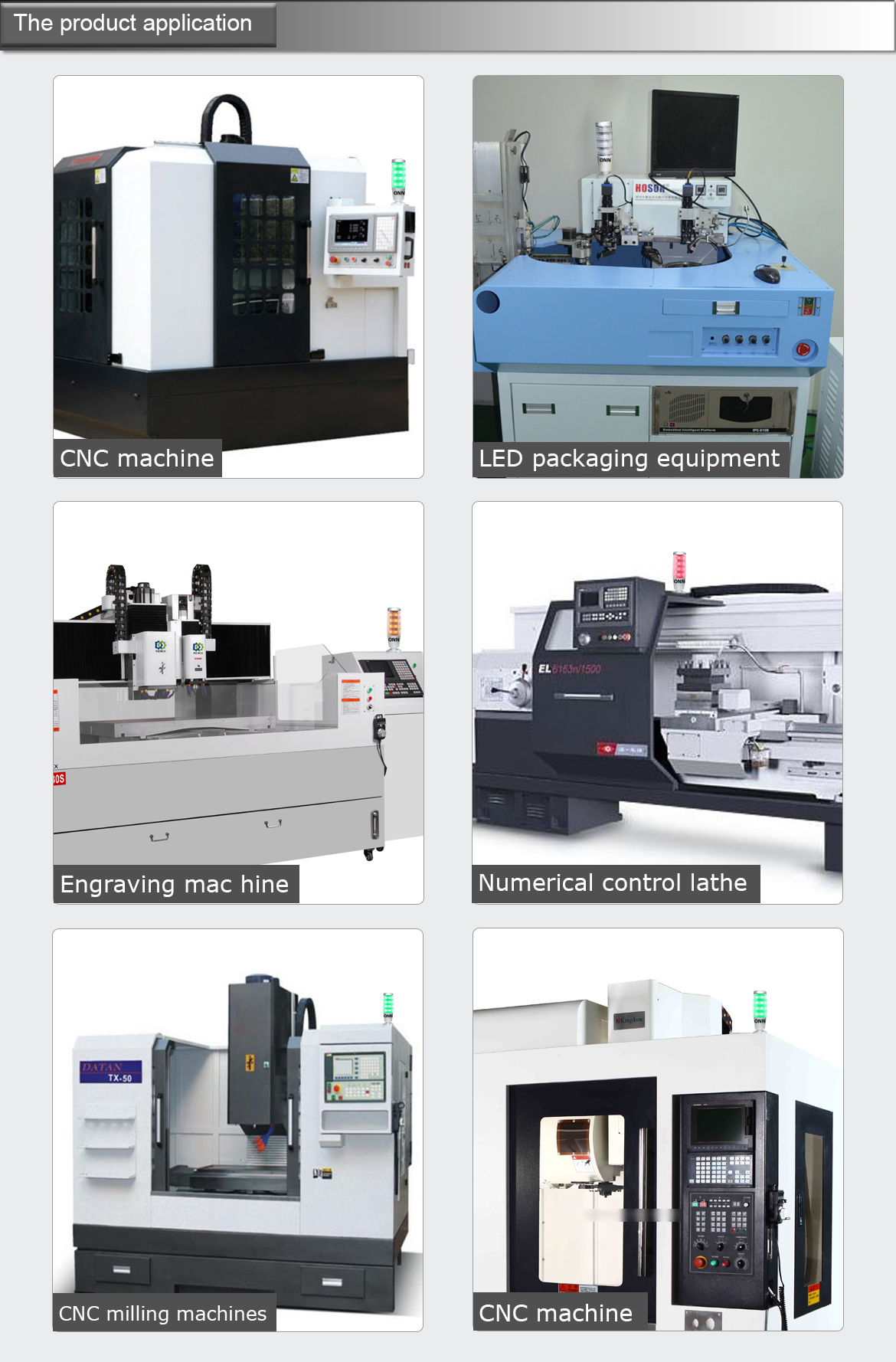

Applications

  • CNC machine tools

  • SMT equipment

  • Automated production lines

Package Info



Item Detail
Qty/Carton 24 pieces
Carton Size 440*270*350mm
N.W. 8.0kg
G.W. 10kg
