ONN-M4S-F Aluminum Body Stack Light With Buzzer Flexible Mount CNC Equipment
ONN-M4S-F Aluminum Body Stack Light With Buzzer Flexible Mount CNC Equipment
ONN-M4S-F Aluminum Body Stack Light With Buzzer Flexible Mount CNC Equipment
ONN-M4S-F Aluminum Body Stack Light With Buzzer Flexible Mount CNC Equipment
ONN-M4S-F Aluminum Body Stack Light With Buzzer Flexible Mount CNC Equipment
ONN-M4S-F Aluminum Body Stack Light With Buzzer Flexible Mount CNC Equipment
ONN-M4S-F Aluminum Body Stack Light With Buzzer Flexible Mount CNC Equipment
ONN-M4S-F Aluminum Body Stack Light With Buzzer Flexible Mount CNC Equipment
ONN-M4S-F Aluminum Body Stack Light With Buzzer Flexible Mount CNC Equipment
ONN-M4S-F Aluminum Body Stack Light With Buzzer Flexible Mount CNC Equipment
ONN-M4S-F Aluminum Body Stack Light With Buzzer Flexible Mount CNC Equipment
ONN-M4S-F Aluminum Body Stack Light With Buzzer Flexible Mount CNC Equipment
Specifications
Supply Ability :
1-1000pcs 5-12 working days
Certification :
FCC CE ROHS
Payment Terms :
T/T
Brand Name :
ONLION
Material :
Acrylic body Aluminum base PC lens
Place of Origin :
Guangdong, China
Buzzer :
85dB
Application :
CNC Machine/Mining equipment
Packaging Details :
12 pieces/carton， 440*270*350mm, 7.3kg
Housing color :
Silver
Color :
Red, Yellow, Green, Blue White
Model Number :
M4S-F
MOQ :
1
Price :
$15-$20
Mounting :
Foldable Base
Delivery Time :
5-12 working days
Description

ONN-M4S-F Aluminum Body Stack Light with Buzzer Flexible Mount CNC Equipment

Product Overview

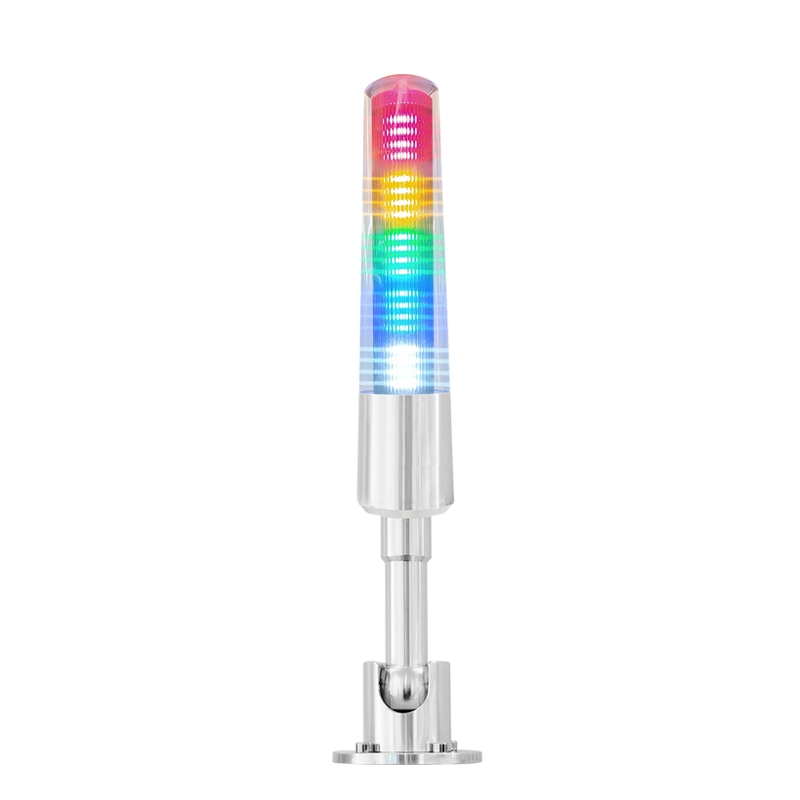

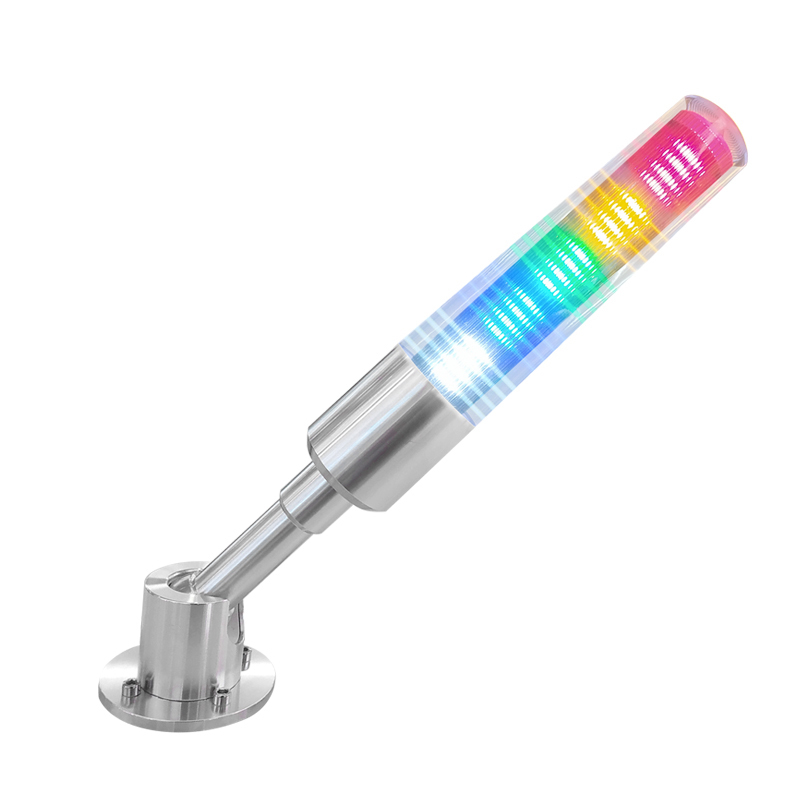

The ONN M4S-F is a 5-tier industrial LED signal tower engineered for precise status indication in automated systems. Featuring a baseball-pole profile with a foldable base, this unit offers flexible orientation via a 360° rotatable mounting disc. The aluminum housing and UV-stabilized PC lenses resist yellowing and mechanical stress, ensuring reliable performance in temperatures from -20°C to 45°C. With a rated lifetime of 50,000 hours and IP50 protection, it is built for continuous indoor operation.

Technical Specifications



Parameter Detail
Model ONN M4S-F (5 layers)
Total Power 6W
LED Current (per color) 50mA (R/Y/G/B/W)

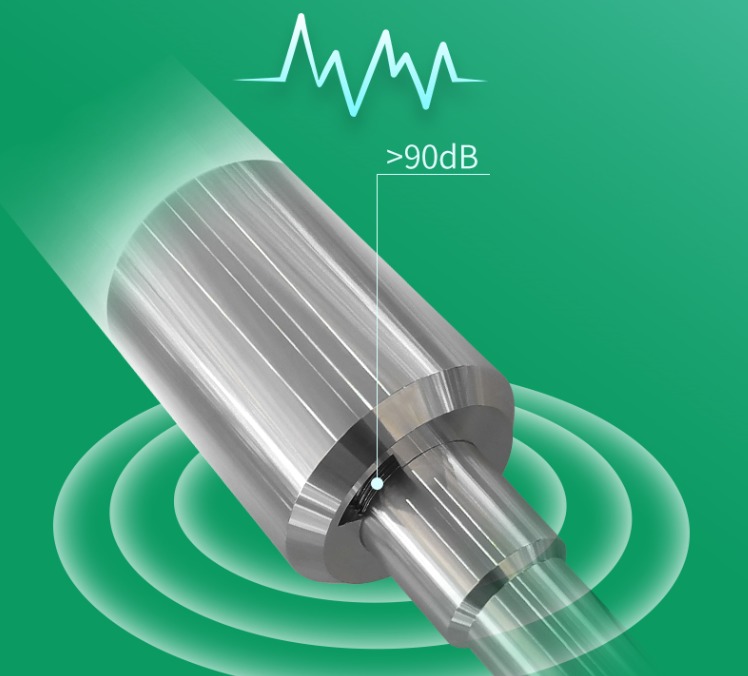

Buzzer Current 35mA
Input Voltage DC12V (A) / DC24V (B) / AC220V (C)
Control Signals PNP & NPN (DC24V) / Contact type (AC220V/DC12V)
Operation Modes Steady / Steady+Buzzer / Red Flash / Red Flash+Buzzer / All Flash / All Flash+Buzzer
Housing Material Aluminum alloy
Lens Material Polycarbonate (anti-yellowing)

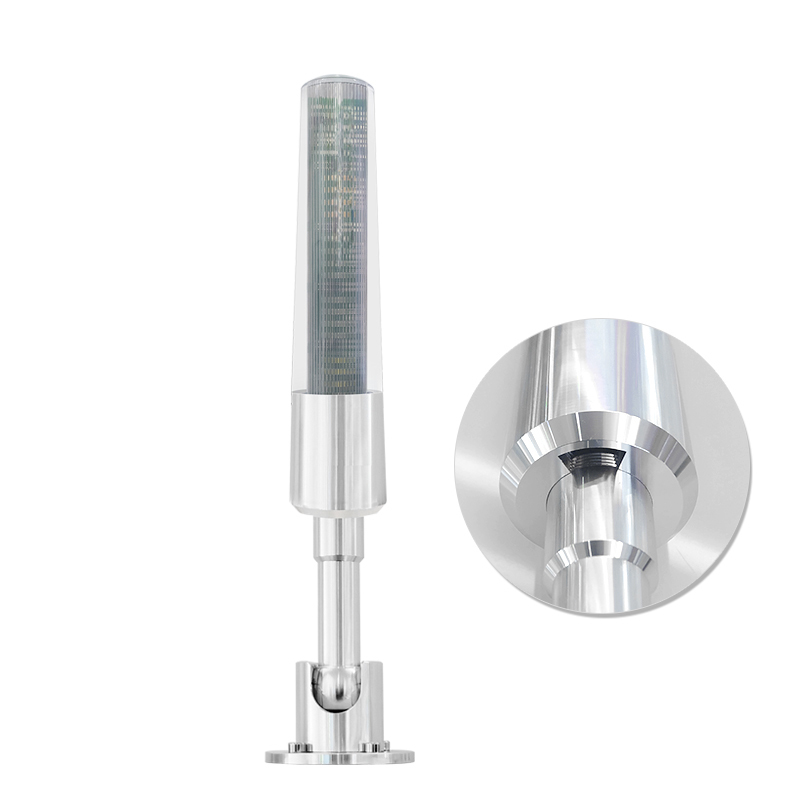

Mounting Screw-fixed base; 360° rotatable disc; 3-hole or 4-hole optional
Cable Length 0.5m
Ambient Temp -20℃ ~ +45℃
Protection Class IP50
LED Lifespan 50,000 hours
Certifications CE, RoHS (compliant)
Warranty 2 years


Mechanical Drawing & Packing



Item Specification
Unit Net Weight 0.43kg
Quantity per Carton 12 pieces
Carton Dimensions 440 × 270 × 350 mm
Total Net Weight 5.2kg
Total Gross Weight 7.3kg

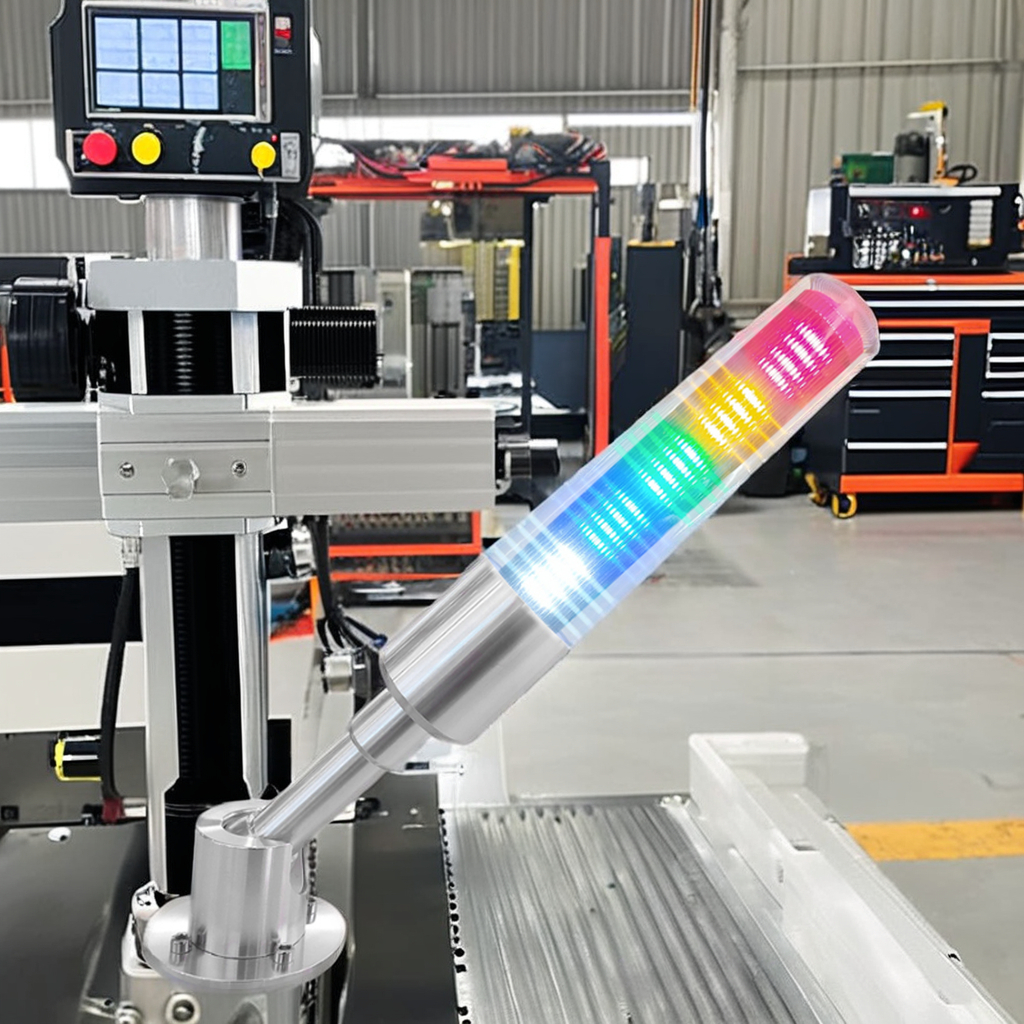

Typical Applications

  • Automated assembly stations

  • CNC lathe & milling centers

  • Pick-and-place machines (SMT)

  • Conveyor belt control panels

  • Packaging line status indicators

  • Machine tool operator panels
