ONN-M4S-F 12v 24v 220v Rotatable Base Warning Lamp Automatic Equipment
ONN-M4S-F 12v 24v 220v Rotatable Base Warning Lamp Automatic Equipment
ONN-M4S-F 12v 24v 220v Rotatable Base Warning Lamp Automatic Equipment
ONN-M4S-F 12v 24v 220v Rotatable Base Warning Lamp Automatic Equipment
ONN-M4S-F 12v 24v 220v Rotatable Base Warning Lamp Automatic Equipment
ONN-M4S-F 12v 24v 220v Rotatable Base Warning Lamp Automatic Equipment
ONN-M4S-F 12v 24v 220v Rotatable Base Warning Lamp Automatic Equipment
ONN-M4S-F 12v 24v 220v Rotatable Base Warning Lamp Automatic Equipment
ONN-M4S-F 12v 24v 220v Rotatable Base Warning Lamp Automatic Equipment
ONN-M4S-F 12v 24v 220v Rotatable Base Warning Lamp Automatic Equipment
ONN-M4S-F 12v 24v 220v Rotatable Base Warning Lamp Automatic Equipment
ONN-M4S-F 12v 24v 220v Rotatable Base Warning Lamp Automatic Equipment
Specifications
Brand Name :
ONN
Certification :
CE, RoHS, FCC
Connection Type :
PNP & NPN / Contact Type
MOQ :
1
Payment Terms :
T/T
Installation :
Screw fixing
Place of Origin :
Guangdong, China
Price :
$16-20
Delivery Time :
5-12 working days
Color :
Red Green Yellow White Blue (RGYWB)
Packaging Details :
12 pieces/carton， 440*270*350mm, 7.3kg
Application :
CNC Machine Signal Tower Lighting
Model Number :
M4S-F
Type :
Equipment Indicator Lights
Supply Ability :
1-500pcs 8-12 working days
Cable Length :
0.5m
Description

ONN-M4S-F 12v/24v/220v Rotatable Base Warning Lamp Automatic Equipment

Product Overview

The ONN M4S-F is a compact 5-color signal tower with a collapsible base and durable metal construction. Supports steady, flash, and buzzer alerts. Interfaces with PLC via PNP/NPN or traditional relay contacts. IP50-rated with 50,000-hour LED lifespan.

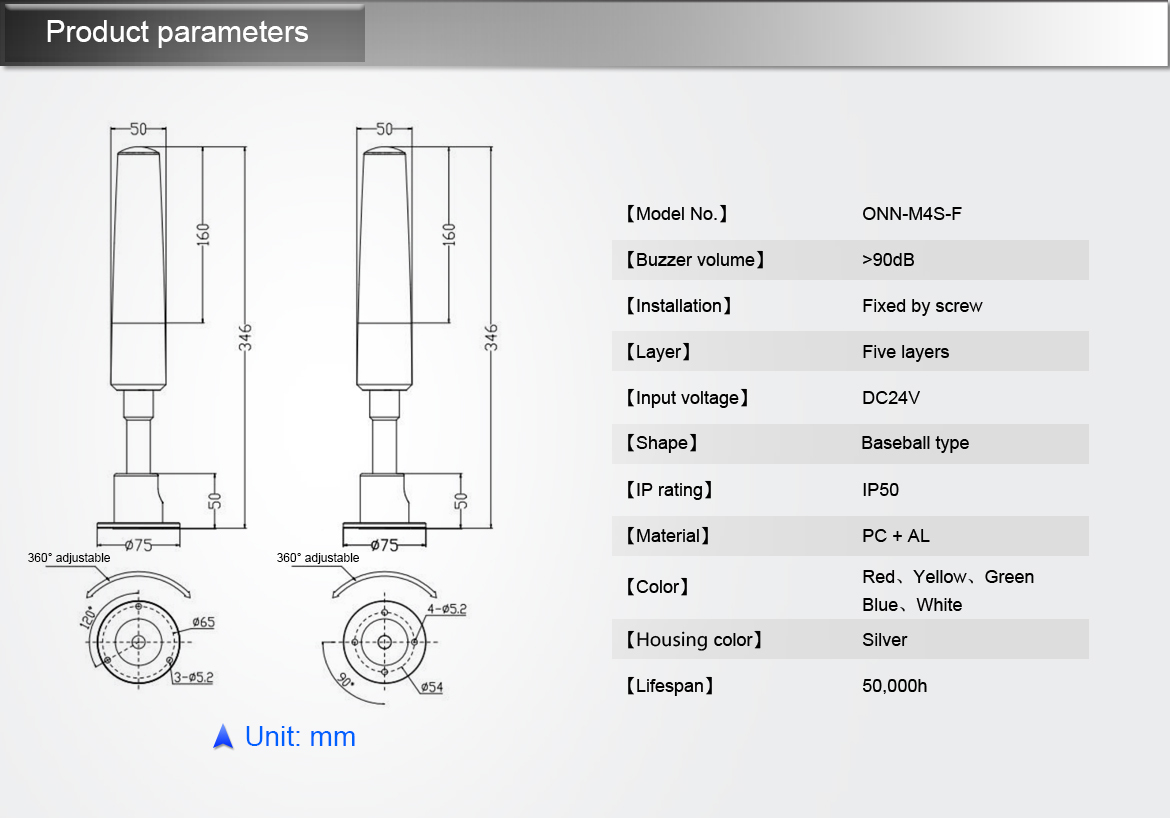

Primary Specifications



Item Detail
Layers 5 (R/Y/G/B/W)
Power 6W max
Voltage 12V DC / 24V DC / 220V AC
Control PNP/NPN or dry contact
Mount Folding base, screw-fixed
Body Aluminum + PC lens
Buzzer 95dB integrated
Temp Range -20℃ ~ +45℃
Protection IP50
Cable 0.5m

Key Advantages

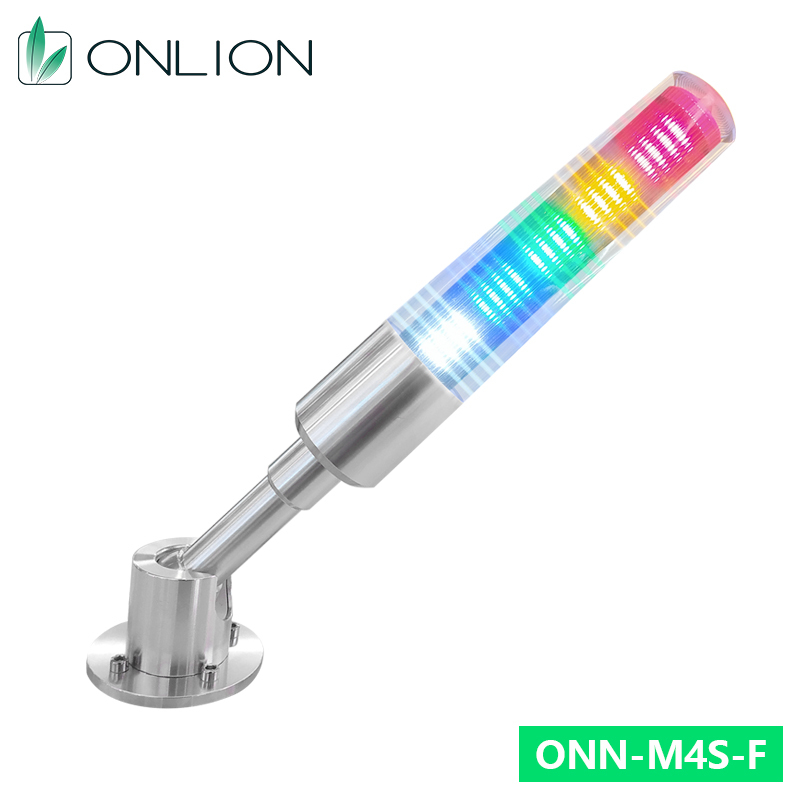

  • Foldable bracket – saves storage space and simplifies machine relocation

  • Swivel head – rotates 360° for optimal signal visibility

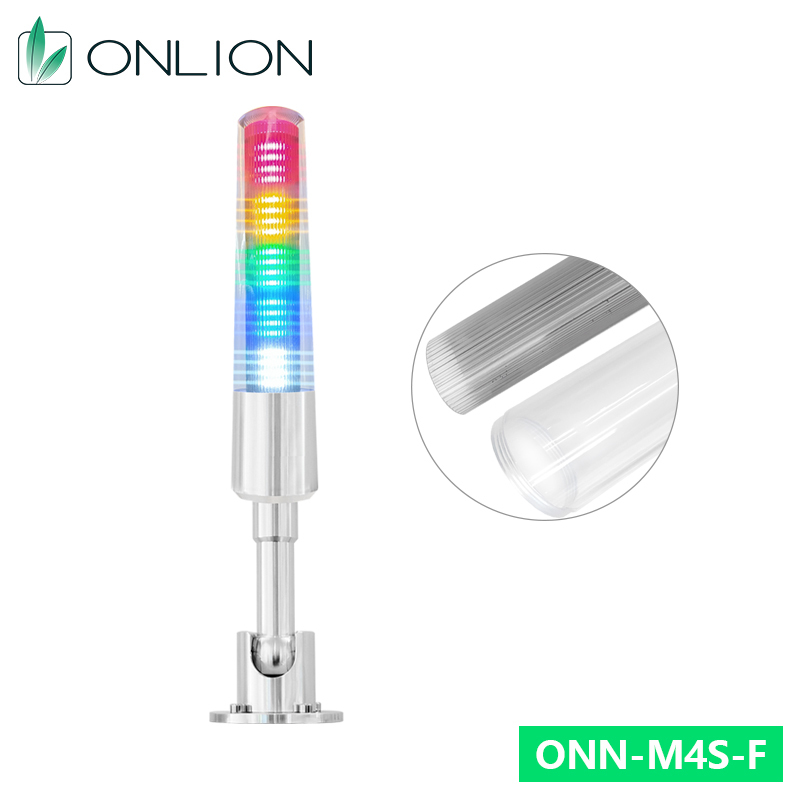

  • Anti-yellow lenses – maintain brightness over years of use

  • Audible alert – cuts through ambient noise with 95dB output

  • Universal compatibility – works with both transistor and relay controls

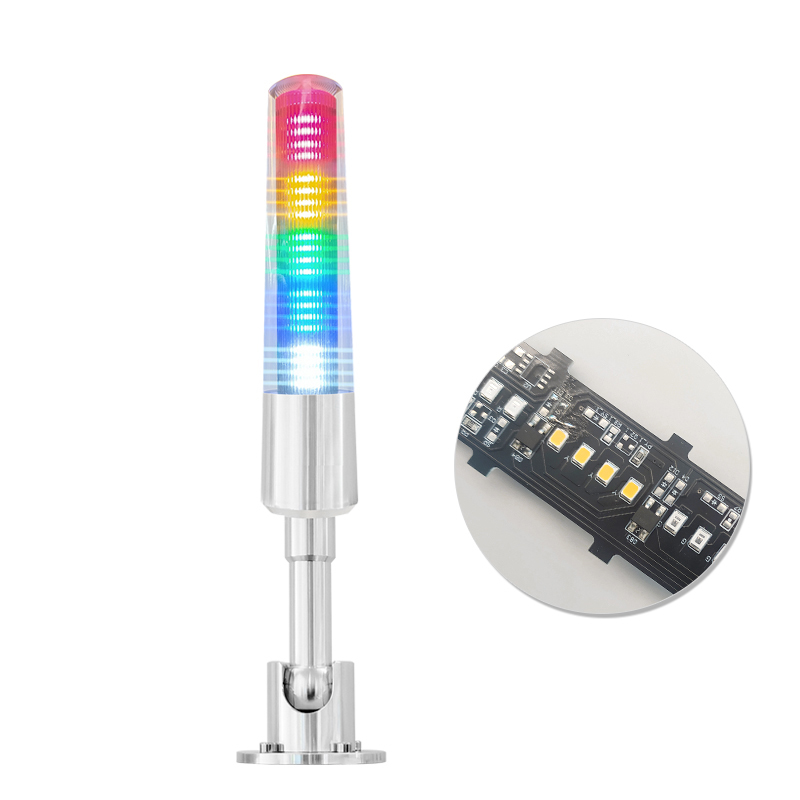

  • Long-life LEDs – 50,000-hour rated operation

  • Quick installation – pre-wired cable and screw mounting

Operating Modes

  • Steady illumination only

  • Steady + buzzer

  • Red flashing only

  • Red flashing + buzzer

  • All-color flashing

  • All-color flashing + buzzer

Typical Use Cases

CNC machines, SMT equipment, assembly stations, packaging lines, automated conveyors, and production workstations.
