ONN-M4Y Three Color IP43 DC24V Acrylic Machine Warning Light With Buzzer
ONN-M4Y Three Color IP43 DC24V Acrylic Machine Warning Light With Buzzer
ONN-M4Y Three Color IP43 DC24V Acrylic Machine Warning Light With Buzzer
ONN-M4Y Three Color IP43 DC24V Acrylic Machine Warning Light With Buzzer
ONN-M4Y Three Color IP43 DC24V Acrylic Machine Warning Light With Buzzer
ONN-M4Y Three Color IP43 DC24V Acrylic Machine Warning Light With Buzzer
ONN-M4Y Three Color IP43 DC24V Acrylic Machine Warning Light With Buzzer
ONN-M4Y Three Color IP43 DC24V Acrylic Machine Warning Light With Buzzer
ONN-M4Y Three Color IP43 DC24V Acrylic Machine Warning Light With Buzzer
ONN-M4Y Three Color IP43 DC24V Acrylic Machine Warning Light With Buzzer
ONN-M4Y Three Color IP43 DC24V Acrylic Machine Warning Light With Buzzer
ONN-M4Y Three Color IP43 DC24V Acrylic Machine Warning Light With Buzzer
Specifications
Supply Ability :
1-1000pcs 5-12 working days
Color Rendering Index(Ra) :
80
Model Number :
ONN-M4Y
MOQ :
2
APPLICATIONS :
CNC machine
Certification :
CE
WARRANTIES :
36 Months
Delivery Time :
5-8 working days
Input Voltage(V) :
DC24V
Price :
$17-20
Packaging Details :
12 pieces/carton， 380*330*300mm，10kg
Power Source :
AC, DC
Brand Name :
ONLION
Place of Origin :
Guangdong, China
Payment Terms :
T/T
Color :
red yellow green
Description

ONN-M4Y Three Color IP43 DC24V Acrylic Body Customization Warning Lights With Buzzer for Machines

Product Overview

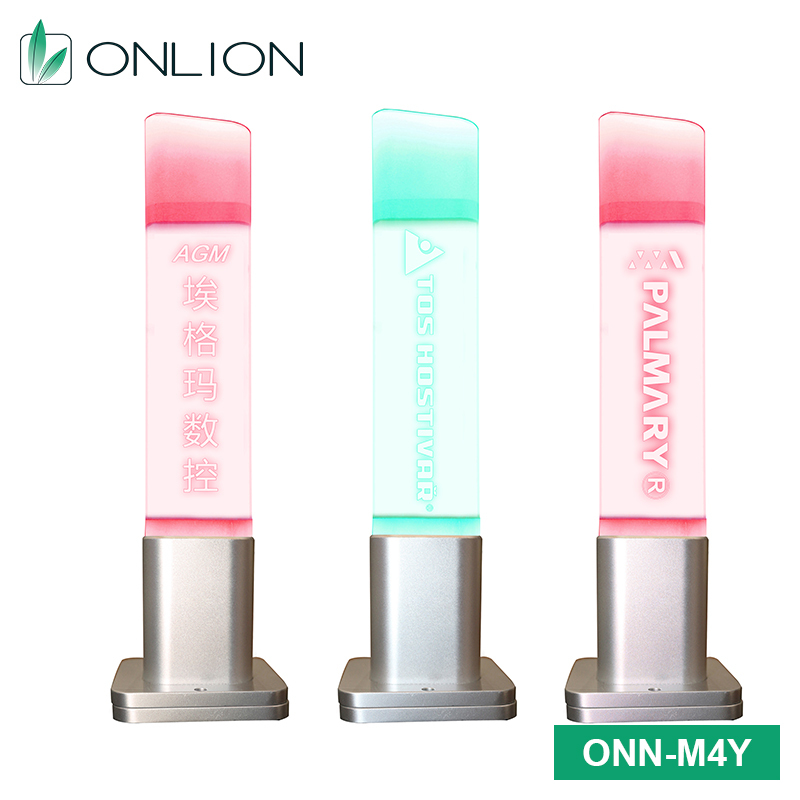

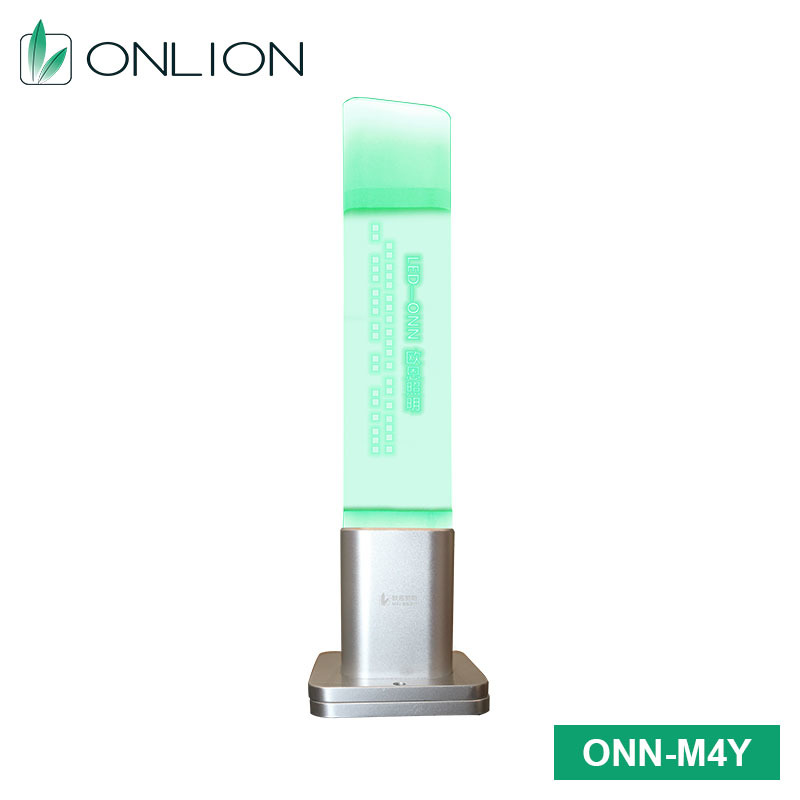

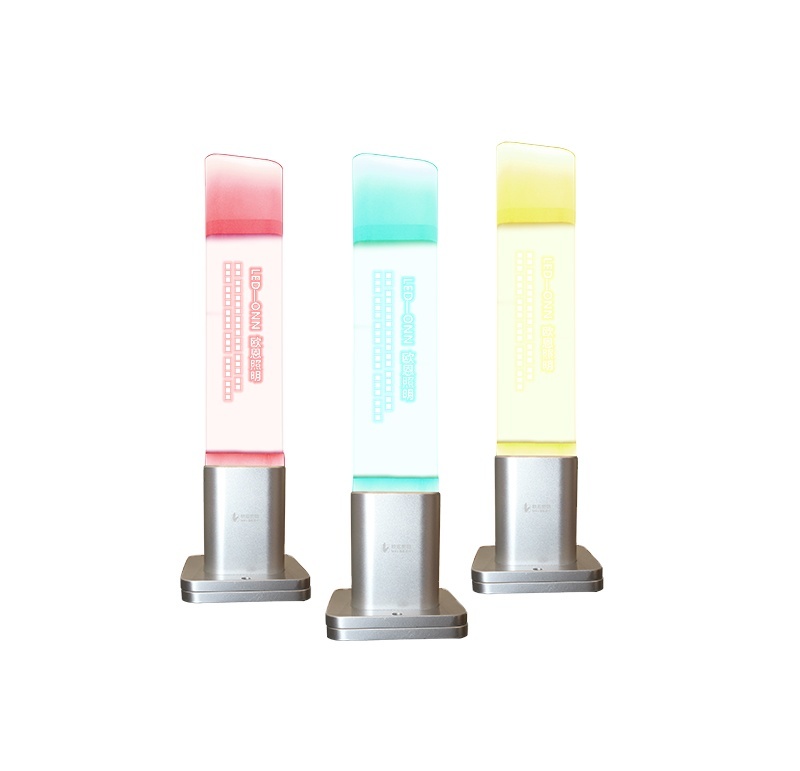

ONN-M4Y is a crystal-style single-layer RYG LED signal light developed by ONN Lighting. It adopts high-transmittance acrylic lamp body and aluminum base, providing red-yellow-green status indication. Equipped with a foldable base adjustable at 90°, optional built-in buzzer, steady & flash light modes, and compatible with PNP/NPN signal. Supporting internal engraved LOGO, IP43 protection and 50,000-hour lifespan, it is widely used for CNC machines and automatic production lines.

Key Features

  • Single-layer RYG design with 360° even light output for clear equipment status display
  • 90° foldable base, flexibly avoid structural obstruction of machinery
  • Support steady & flash light modes; optional buzzer for sound-light alarm
  • Compatible with PNP/NPN signal, suitable for most PLC control systems
  • High-transparent acrylic lens & aluminum base, IP43 protection rating
  • 50,000-hour long LED lifespan, stable performance with low light decay

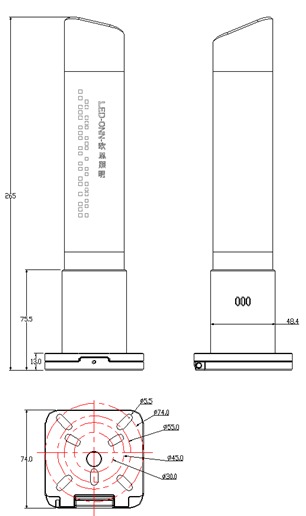

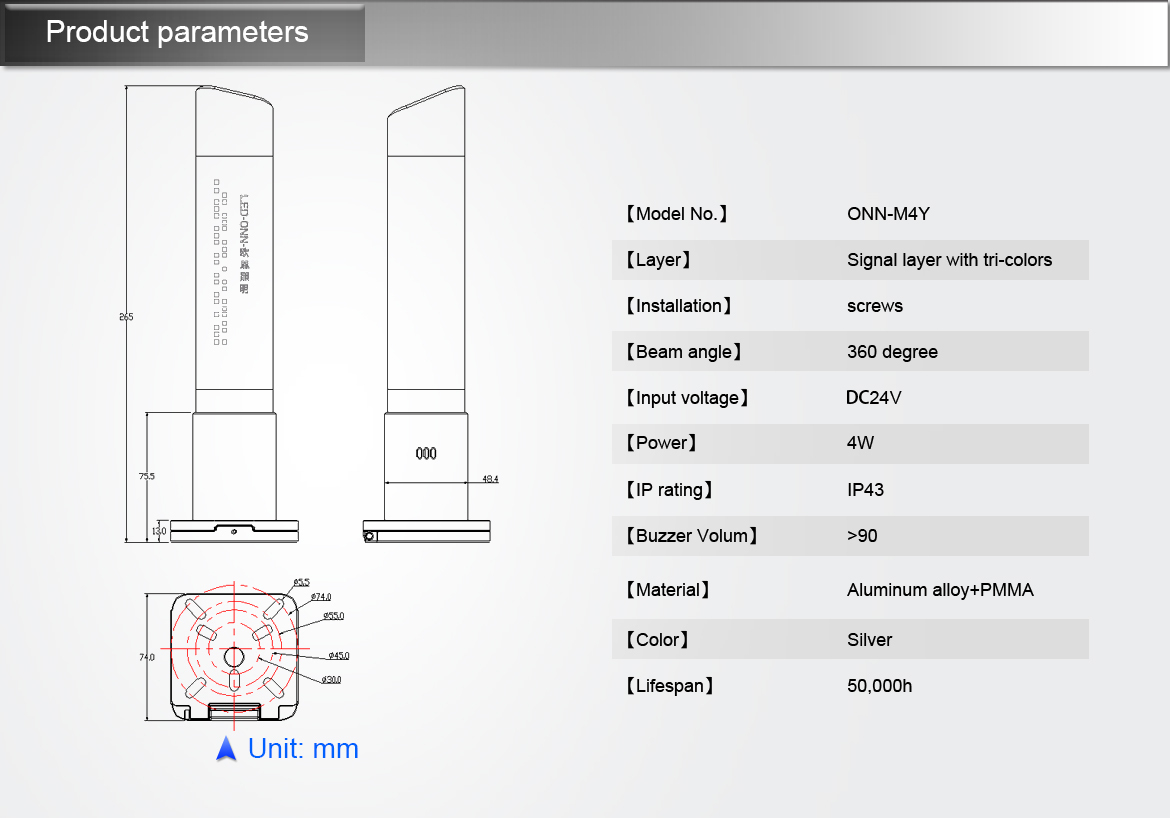

Specifications



Parameter Specification
Model ONN-M4Y
Power 1.8W per color
Voltage DC12V, DC24V, AC100-240V
Current 35mA per color
Temp. Range -20℃ ~ +45℃
IP Rating IP53 (IP66 without buzzer)
Buzzer >85dB
Material PC Lens + ABS Body
Lifetime 50,000 hours
Certification CE, RoHS, FCC
Warranty 2 Years

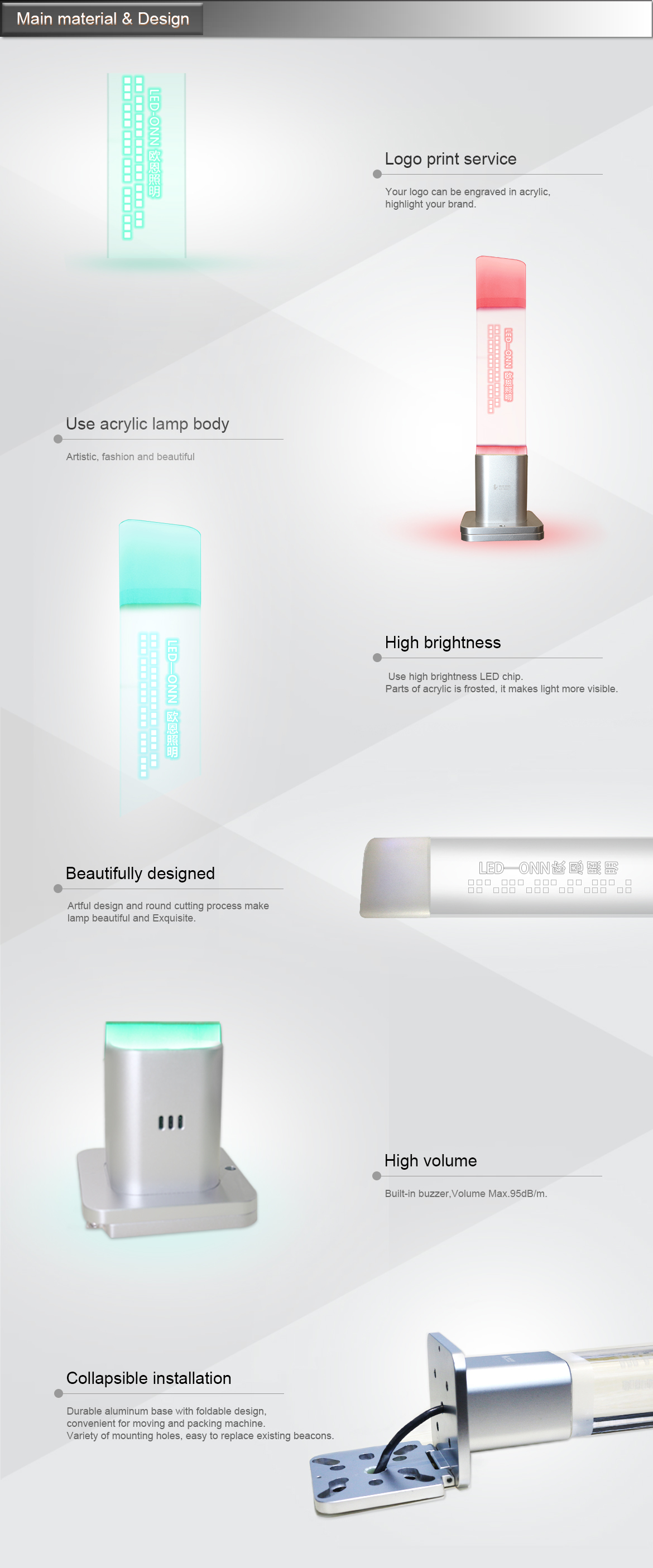

Competitive Advantages

90° foldable base enables flexible angle adjustment, solving visual block issues on compact equipment

Universal PNP/NPN connection without extra adapters, saving wiring and commissioning cost

Crystal-style acrylic appearance with customizable internal engraved LOGO, upgrading equipment aesthetics

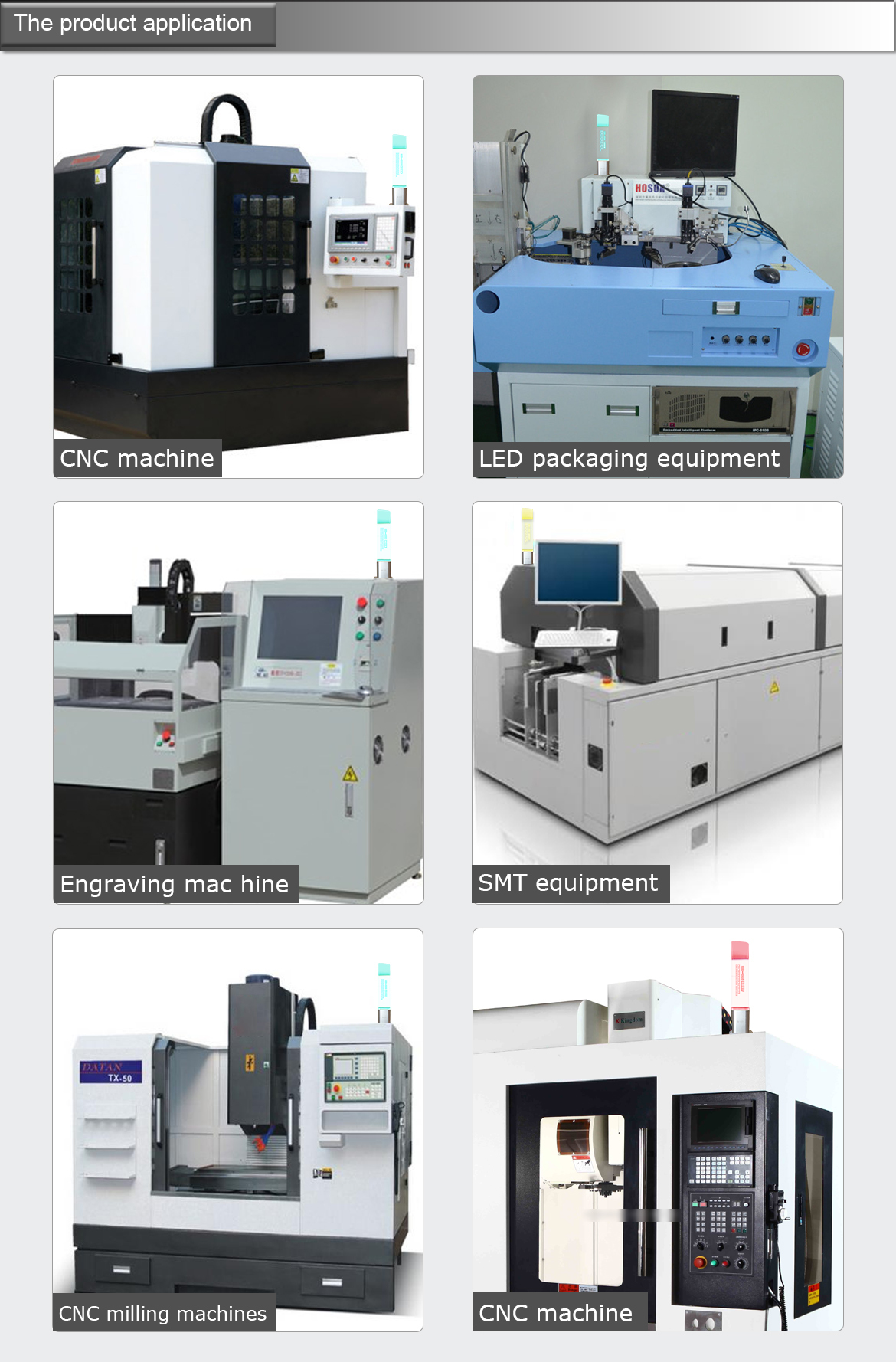

Applications

  • CNC Machine Tools

  • SMT (Surface Mount Technology) Equipment

  • Automatic Assembly Lines

  • Packaging Machinery

  • Industrial Robots and Workcells

  • Process Control Monitoring

Package Info



Item No. Qty/Carton Carton Size N.W. G.W.
M4Y 12 pcs 380*330*300mm 8kg 10kg




ONN-M4Y Three Color IP43 DC24V Acrylic Machine Warning Light With Buzzer

ONN-M4Y Three Color IP43 DC24V Acrylic Machine Warning Light With Buzzer
