DC12V 36V LED Signal Tower Light RYG Foldable With >90dB Buzzer Steady Flash
DC12V 36V LED Signal Tower Light RYG Foldable With >90dB Buzzer Steady Flash
DC12V 36V LED Signal Tower Light RYG Foldable With >90dB Buzzer Steady Flash
DC12V 36V LED Signal Tower Light RYG Foldable With >90dB Buzzer Steady Flash
DC12V 36V LED Signal Tower Light RYG Foldable With >90dB Buzzer Steady Flash
DC12V 36V LED Signal Tower Light RYG Foldable With >90dB Buzzer Steady Flash
DC12V 36V LED Signal Tower Light RYG Foldable With >90dB Buzzer Steady Flash
DC12V 36V LED Signal Tower Light RYG Foldable With >90dB Buzzer Steady Flash
DC12V 36V LED Signal Tower Light RYG Foldable With >90dB Buzzer Steady Flash
DC12V 36V LED Signal Tower Light RYG Foldable With >90dB Buzzer Steady Flash
DC12V 36V LED Signal Tower Light RYG Foldable With >90dB Buzzer Steady Flash
DC12V 36V LED Signal Tower Light RYG Foldable With >90dB Buzzer Steady Flash
Specifications
Certification :
CE TUV RoHS
Voltage :
DC12-36V wide voltage
Model Number :
ONN M4
Mounting :
Foldable/Pole and plate/L-bracket
Supply Ability :
1-500pcs 5-12 working days
MOQ :
1
Delivery Time :
5-8 working days
Logo :
Customized Logo
Payment Terms :
T/T
Price :
$14-22
Connection Type :
PNP&NPN / Contact type
Brand Name :
ONLION
IP Rating :
IP53 (standard); IP66 (without buzzer)
Packaging Details :
12 piece/carton ， 440*270*350mm ，GW 7.6kg
Place of Origin :
Guangdong, China
Color of housing :
Black/Gray
Description

ONN-M4 Wide Voltage DC12-36V Tower Light RYG Foldable Signal Tower Light with >90dB Buzzer Steady Flash for CNC Machine

Product Overview

ONN-M4 DC12-36V wide voltage multi-layer tower light diameter 60/70mm 3 mount fold/L/pole bracket PNP NPN contact dual wiring >90dB buzzer IP40 ABS PC blue backlit custom logo CE RoHS FCC 50000h 2-year warranty for CNC SMT automatic equipment sample OEM available.


Highlight Selling Points

  • DC12~36V ultra wide voltage, fit all DC industrial power without converter
  • Three interchangeable brackets for top/side/angle adjustable installation
  • PNP&NPN + contact lwiring match all brand PLC
  • Fuction options:Separate flash wire realize red/all flash multi alarm mode
  • Over 90dB loud buzzer for noisy workshop fault alert
  • Blue backlight laser logo upgrade machine appearance
  • Φ60/70mm + 1~3 layers flexible model collocation
  • IP40 dustproof ABS+PC resist workshop oil dust
  • 50,000h LED lifespan + 2-year official warranty

Quick Detail

  • Optical Performance: 1.8W per color with 60-80mA drive current; PC diffuser lens ensures wide-angle, uniform light dispersion

  • Acoustic Feedback: Optional piezoelectric buzzer delivers >85dB at 1m, selectable with steady or flashing light modes

  • Electrical Interface: Accepts DC12V, DC24V, or AC100-240V (50/60Hz); supports both dry contact (relay) and solid-state PNP/NPN sinking/sourcing inputs

  • Environmental Protection: Standard IP53 rating for indoor use; IP66 rating available for washdown environments (buzzer-deleted configuration)

  • Thermal Management: ABS housing with optimized heat dissipation; rated operating range -20℃ to +45℃

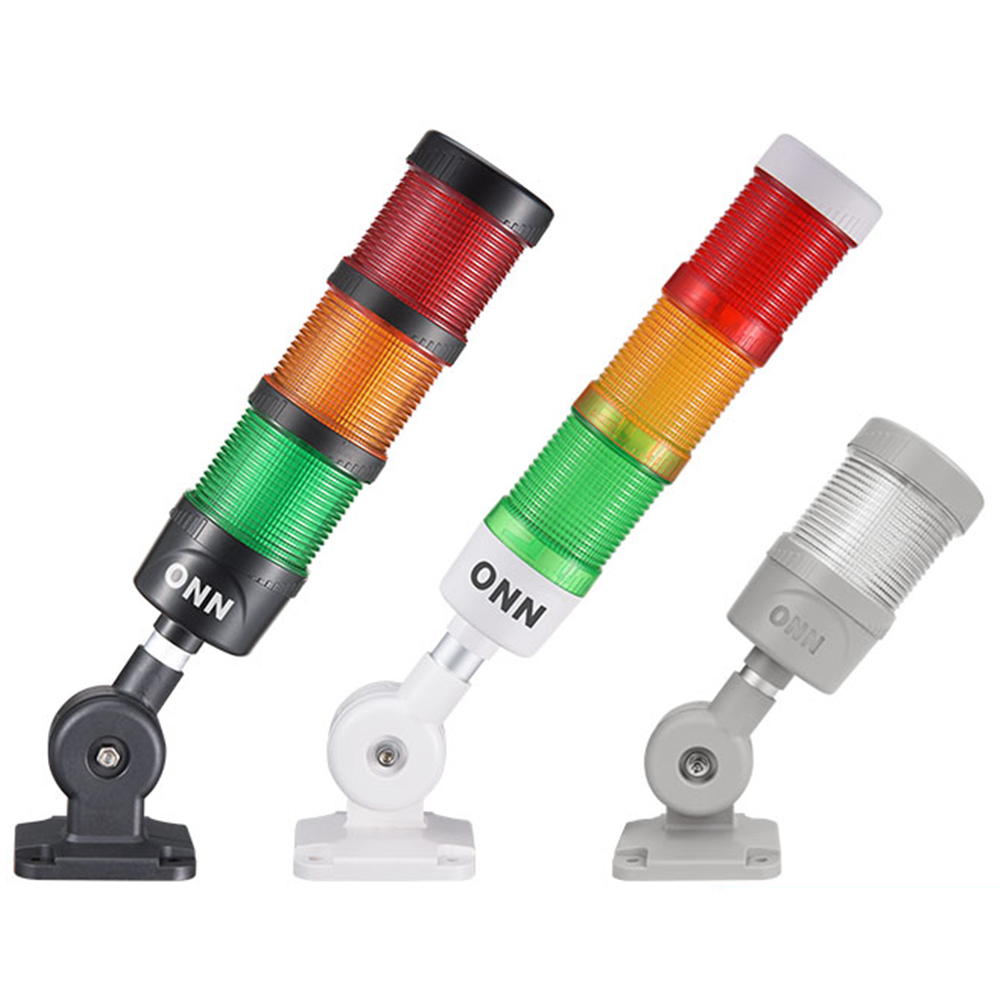

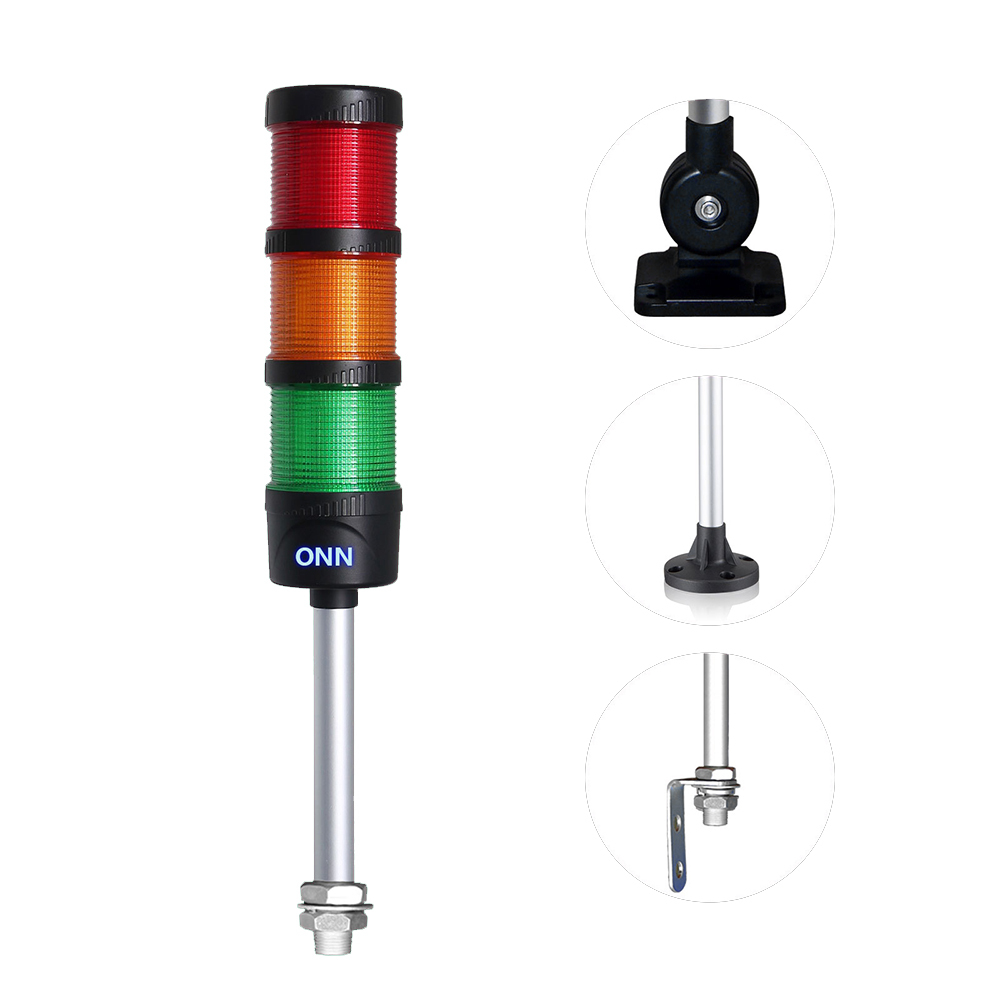

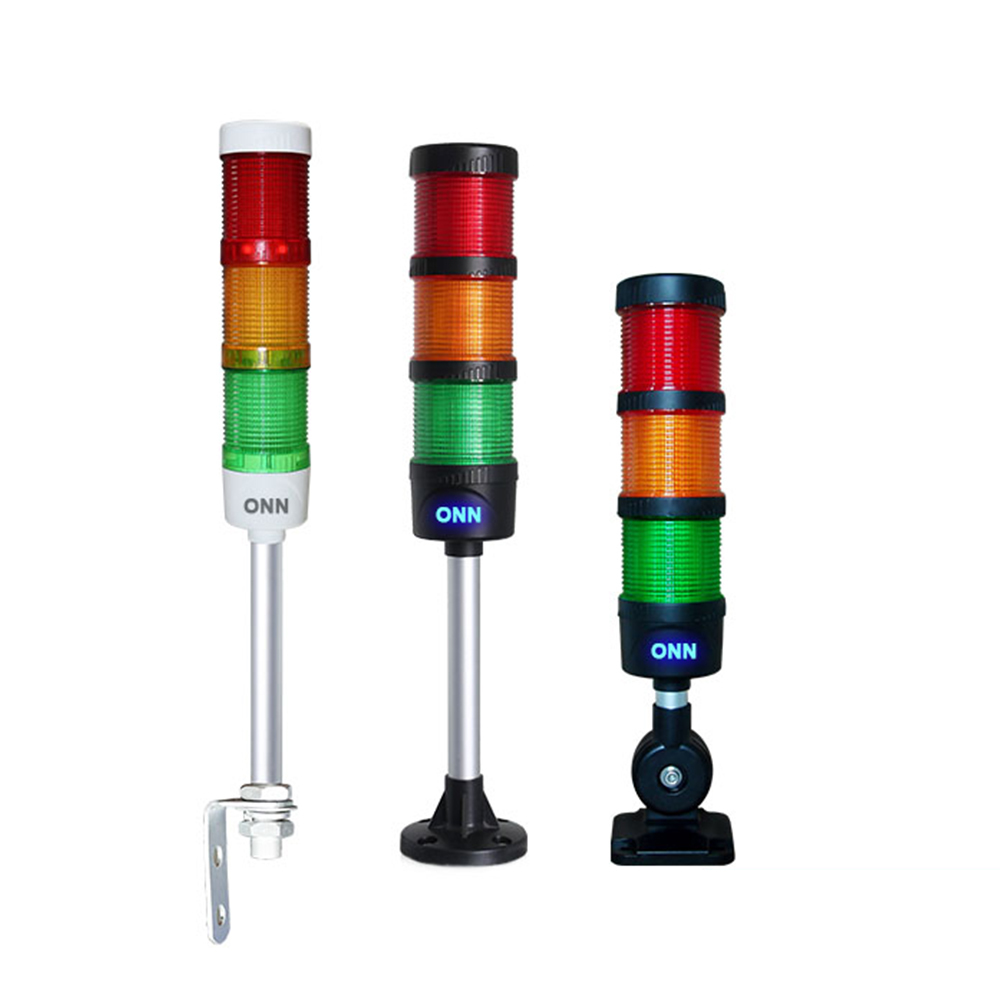

  • Mechanical Installation: Three base variants—Foldable (space-saving), Pole & Plate (elevated visibility), and L-Bracket (wall/surface mount)

Specifications

Spec Item Details
Model ONN-M4 DC12-36V Wide Voltage

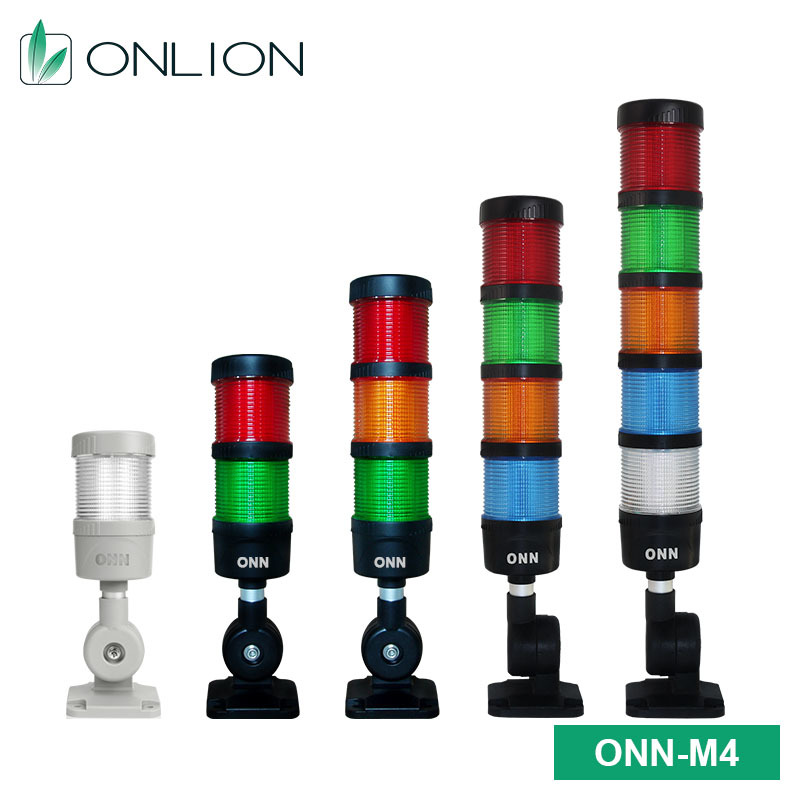

Layers 1/2/3 RYG optional
Tube Dia Φ60 / Φ70
Voltage DC12 ~ 36V Universal
Mount Fold / Pole-plate / L bracket
Wiring PNP&NPN / Contact relay
Buzzer ＞90dB optional
IP Grade IP40
Custom Blue backlit logo
Warranty 2 Years

Why Choose ONN-M4 Wide Voltage Warning Light?

Ordinary tower lights only single fixed DC24V, cannot adapt 12/36V machine power. ONN-M4 DC12-36V ultra wide voltage solves matching trouble, three brackets, dual PLC wiring, optional flash & loud buzzer, customizable backlit logo, high cost performance for automation OEM factories.

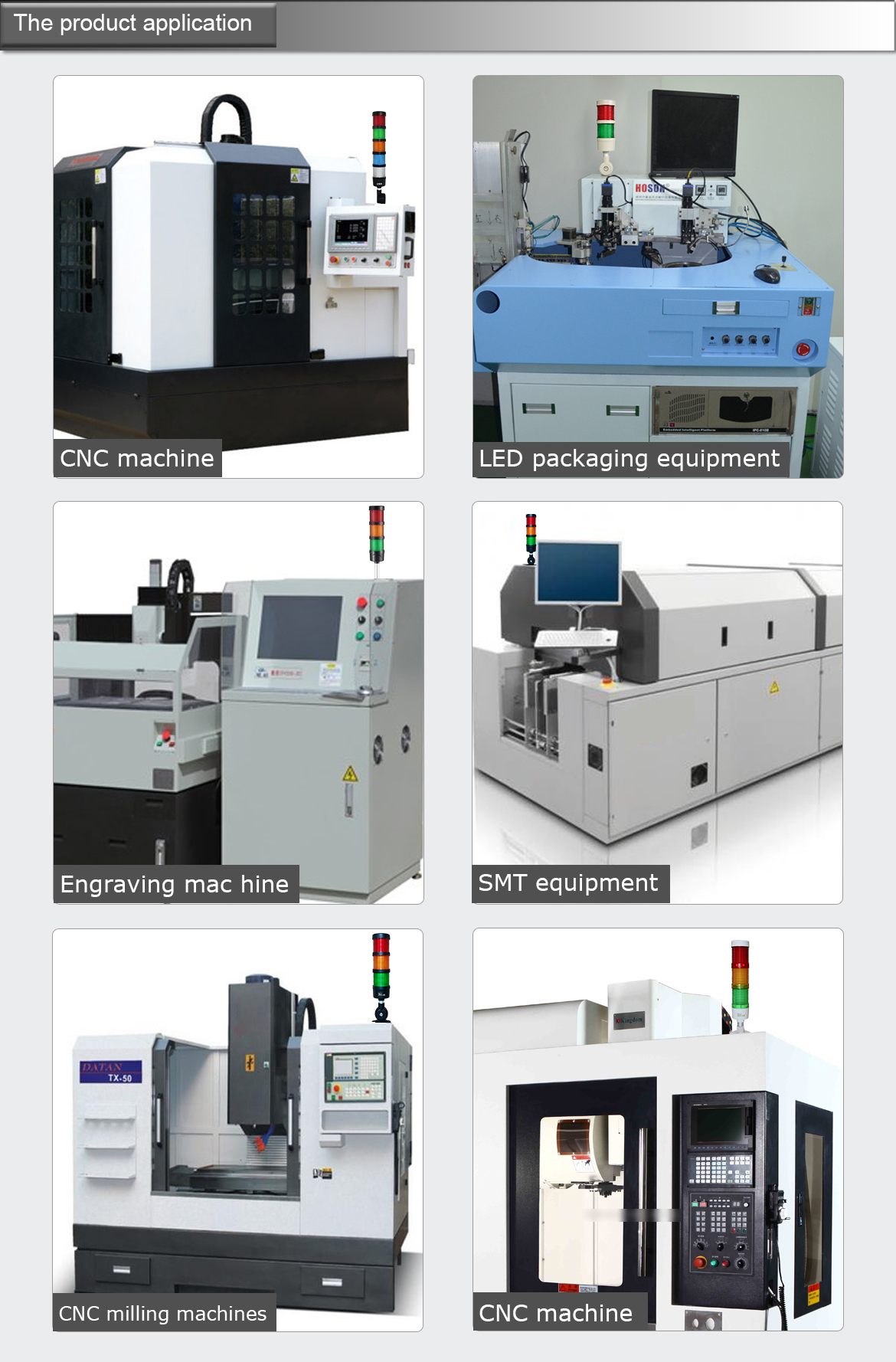

Applications

  • Precision CNC machining centers

  • Automated SMT pick-and-place machines

  • Industrial robotics workcells

  • Process monitoring panels

  • Conveyor system status indication

  • Packaging and material handling equipment


DC12V 36V LED Signal Tower Light RYG Foldable With >90dB Buzzer Steady Flash
