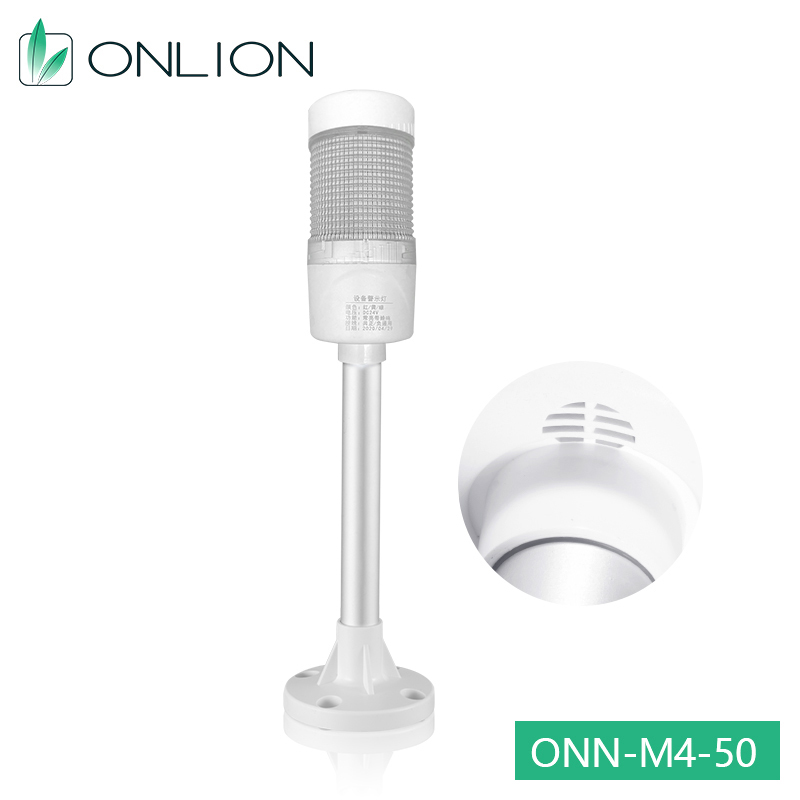

ONN-M4-50 Wholesale LED Tower Warning Light CE Approved Multi-color for Machinery

Product Overview

The ONN-M4-50 is a compact, 3-tier industrial signal tower light engineered for clear visual status indication on small to mid-sized automated equipment. Featuring a traditional fixed-layer design with Red, Yellow, and Green high-brightness LED segments, this unit delivers reliable machine status communication at an economical price point. Each color draws only 1.4W while maintaining luminous intensity suitable for shop floor environments. Available in three mounting configurations (Foldable, Pole & Plate, L-Bracket) and three voltage options (DC12V, DC24V, AC100-240V), the ONN-M4-50 integrates seamlessly into new installations or retrofit applications.

Quick Detail

• 3-Tier Configuration: Fixed Red/Yellow/Green layers for standard status indication (Power/Run/Warning/Fault)

• High-Brightness LEDs: Premium LED chips with 50,000-hour lifespan and minimal photometric decay

• Optional Audible Alert: Built-in buzzer >85dB, selectable with steady or flashing light modes

• Compact Φ50mm Diameter: Space-saving design ideal for smaller equipment and control panels

• Voltage Flexibility: DC12V, DC24V, or AC100-240V (50/60Hz) input options

• Control Compatibility: Supports both contact type (relay) and PNP/NPN transistor signals

• Operating Modes: Steady, Red flash, All flash, each with or without buzzer

• Durable Construction: UV-stabilized PC lens and impact-resistant ABS body, IP53 rated

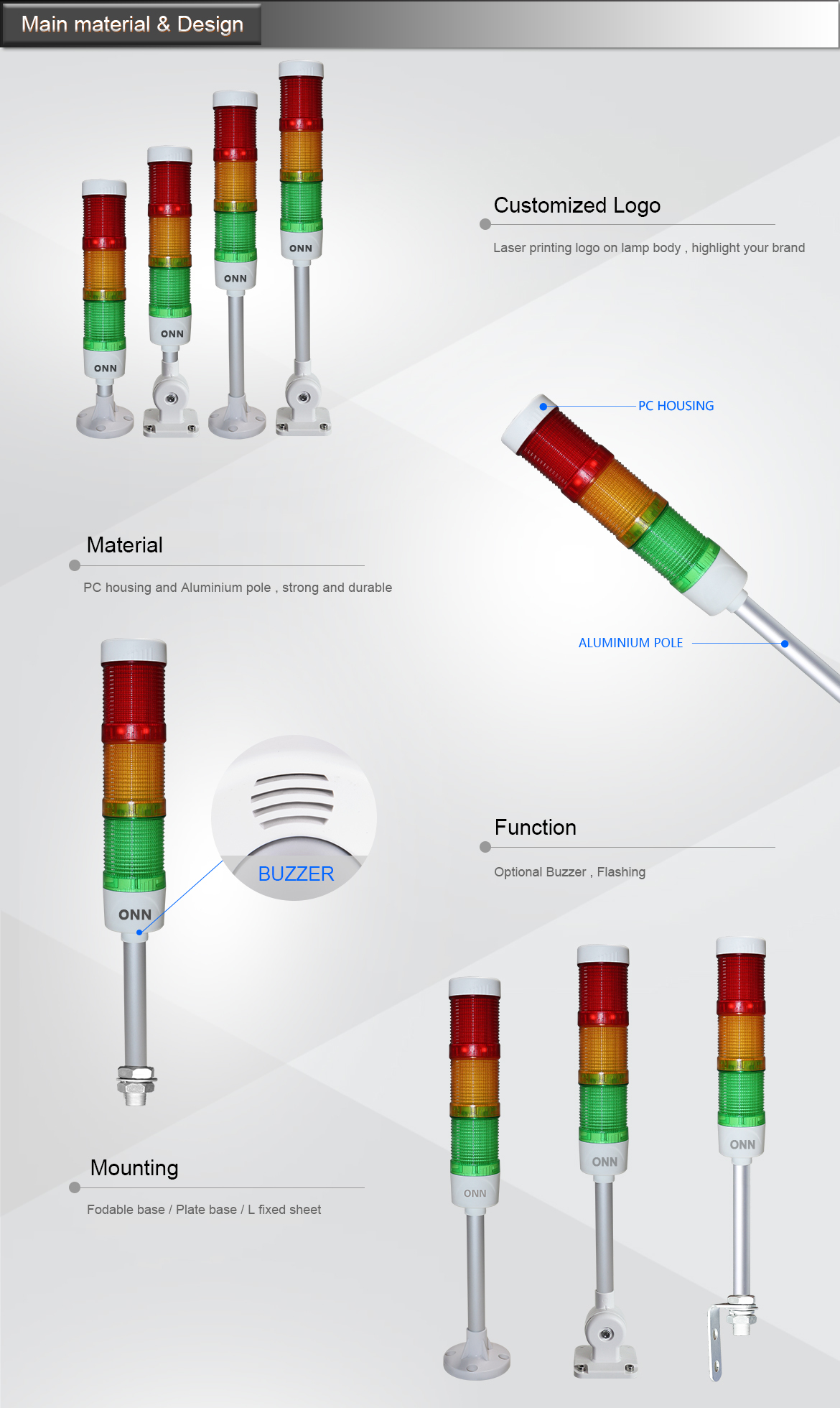

• Mounting Hardware: Foldable type (space-saving), Pole & Plate (elevated visibility), or L-Bracket (side/wall mount)

• Pole Length: Customizable upon request for specific visibility requirements

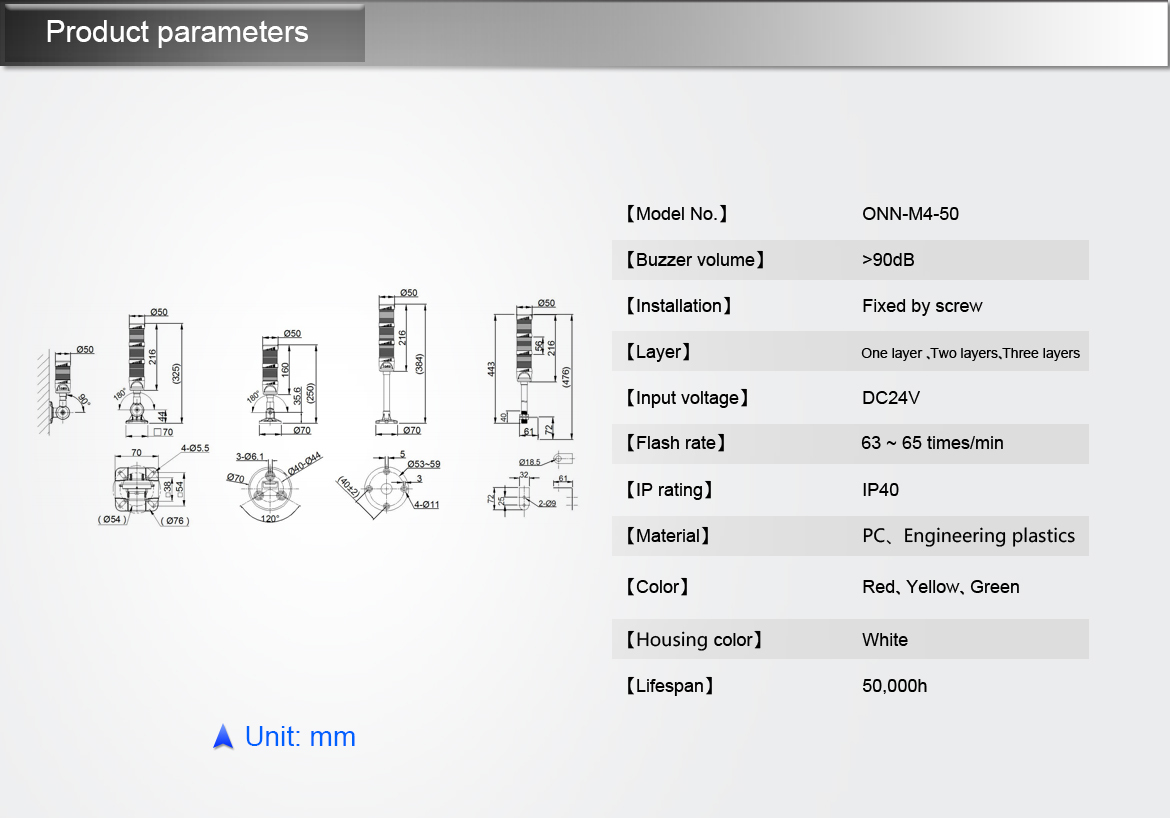

Specifications

Competitive Advantages

• Cost-Effective Signaling: Fixed 3-layer 3-color design delivers essential status indication without unnecessary complexity, reducing both initial procurement and lifecycle costs

• Universal Compatibility: Supports both relay contact and PNP/NPN logic signals, simplifying PLC integration across different control architectures

• Global Voltage Readiness: AC100-240V models operate worldwide without step-down transformers, ideal for international equipment export

• Quick Installation: Three base types accommodate diverse mounting surfaces—no custom bracketry required

• Long Service Life: 50,000-hour LEDs and durable ABS housing minimize maintenance interruptions

• Visual Clarity: PC lens provides wide-angle, uniform light dispersion for clear visibility from multiple operator positions

• Customizable Pole Length: Optional pole length customization accommodates various equipment heights and operator viewing angles

Applications

• CNC milling machines and lathes

• Automatic assembly fixtures

• Packaging and labeling machinery

• Process control panels

• Small to mid-sized automation equipment
