ONN M4B-90 Dome LED Warning Light φ90mm 360° IP65 Waterproof RYG Status Beacon
ONN M4B-90 Dome LED Warning Light φ90mm 360° IP65 Waterproof RYG Status Beacon
ONN M4B-90 Dome LED Warning Light φ90mm 360° IP65 Waterproof RYG Status Beacon
ONN M4B-90 Dome LED Warning Light φ90mm 360° IP65 Waterproof RYG Status Beacon
ONN M4B-90 Dome LED Warning Light φ90mm 360° IP65 Waterproof RYG Status Beacon
ONN M4B-90 Dome LED Warning Light φ90mm 360° IP65 Waterproof RYG Status Beacon
ONN M4B-90 Dome LED Warning Light φ90mm 360° IP65 Waterproof RYG Status Beacon
ONN M4B-90 Dome LED Warning Light φ90mm 360° IP65 Waterproof RYG Status Beacon
ONN M4B-90 Dome LED Warning Light φ90mm 360° IP65 Waterproof RYG Status Beacon
ONN M4B-90 Dome LED Warning Light φ90mm 360° IP65 Waterproof RYG Status Beacon
Specifications
Certification :
CE, RoHS, FCC
Warranty(Year) :
3-Year
Model Number :
M4B
Input Voltage(V) :
DC24V
MOQ :
2
Delivery Time :
5-8 working days
Voltage :
DC 12V DC24V
Payment Terms :
T/T
Application :
CNC Machine
Price :
SG$10.06-13.61
Diameter :
90 mm
Supply Ability :
1-1000pcs 5-12 working days
Brand Name :
ONN
Color :
Red, Green, Yellow
Packaging Details :
27 pieces/carton,380×320×29mm, N.W. 7kg, G.W. 8kg
Place of Origin :
Guangdong, China
Working Temperature(℃) :
-20~45℃
Description

ONN M4B-90 Dome LED Warning Light | φ90mm 360° IP65 Waterproof RYG Status Beacon for CNC Machinery

Product Overview

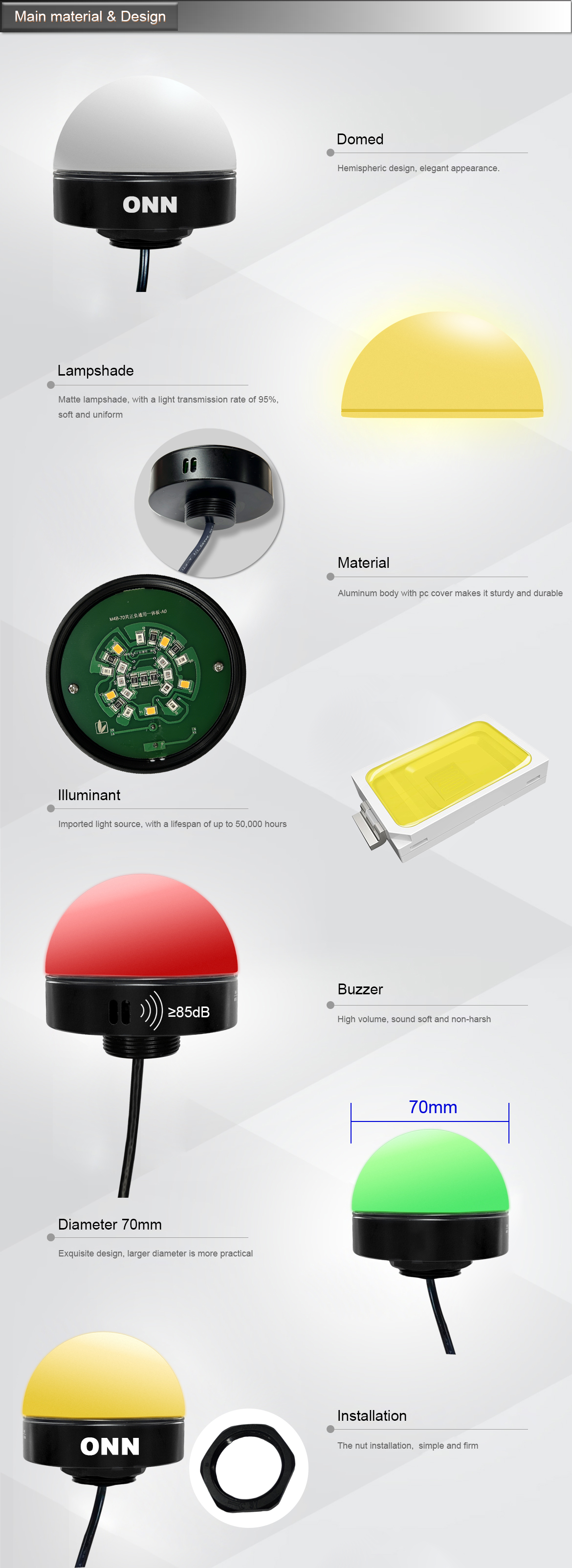

The ONN M4B-90 hemispheric signal light is engineered for harsh factory environments. The textured dome lens achieves even 360° all-round visibility, paired with robust M30 nut locking mounting to resist vibration. It supports dual wiring standards, diverse flash/steady light modes and optional loud buzzer. The buzzer-free version reaches IP65 waterproof & dustproof grade, ideal for machine tools, automated lines and robotic stations.

Quick Detail

  • Size & Power: 90mm hemispheric outlook; single color 0.2W, overall power range 1–3.5W
  • Protection Level: IP65 for silent model; IP50 for variant with built-in buzzer; DC12V/DC24V supply
  • Signal Compatibility: Dual wiring solutions – contact terminal & universal PNP/NPN for all PLC brands
  • Lighting Performance: Full 360° viewing angle, imported long-lifespan LED chips over 50,000hrs
  • Credibility & Mounting: M30×1.5 thread nut installation; CE/RoHS/FCC certified, 2-year full warranty

Specifications



Parameter Specification
Model ONN-M4B-90
Power 1.8W per color
Voltage DC12V, DC24V, AC100-240V
Current 40-140mA per color
Temp. Range -20℃ ~ +45℃
IP Rating IP53 (IP65 without buzzer)
Buzzer >85dB
Material PC Lens + ABS Body
Lifetime 50,000 hours
Certification CE, RoHS, FCC
Warranty 2 Years

Competitive Advantages

Outstanding Workshop Waterproof & Dustproof PerformanceSilent variant hits IP65 rating, fully shielded against cutting fluid splashes, metal dust and coolant in machining workshops.


Anti-Vibration Threaded Nut InstallationM30×1.5 screw lock design stays tight under long-term high-frequency machine vibration, avoiding loose light or intermittent failure.


Universal Dual Signal Output for Global AutomationSupports both contact signal and PNP/NPN non-polar wiring, compatible with nearly all mainstream industrial PLCs, reduce spare part SKUs.


Versatile Alert Modes + Reliable Long-Term UseComplete steady/red flash/all flash modes with optional audible alarm; premium LED chips deliver 50,000-hour service life backed by 2-year factory warranty.

Applications

  • CNC Machine Tools

  • SMT (Surface Mount Technology) Equipment

  • Automatic Assembly Lines

  • Packaging Machinery

  • Industrial Robots and Workcells

  • Process Control Monitoring

Ordering Code


Serial No. Item Optional Parameters
① Base Model Product Series ONN-M4B-90
② Voltage Power Input A=DC12V, B=DC24V
③ Function Mode Light Mode B=Steady, D=All flash, S=Red flash
F=Steady+Buzzer, E=All flash+Buzzer, C=Red flash+Buzzer
④ Connection Type Signal Output C=Contact type, T=PNP&NPN universal
⑤ Light Color Indicator Color R(Red), Y(Yellow), G(Green)

Package Info



Packing Item No Buzzer Version With Buzzer Version
Qty per Carton 27 PCS 27 PCS
Inner Box Size 300×90×90 mm 300×90×90 mm
Outer Carton Size 5 380×320×290 mm
Carton Net Weight 4.86 KG 5.5KG
Carton Gross Weight 7 KG 8 KG


Our service

  • Produce and supply high-quality led industrial lights,including led machine work lights,led signal tower lights,led freezerlights,led cleanroom lights and so on.
  • After-sale service. we make sure every light from us is strictly tested before delivery.
  • If any quality failure, we have an 18-36 months warranty based on different types of lights.
    OEM and ODM service. We focus on led industrial lights for 16 years. We are professional and experienced.
