ONN-M2 Long Arm LED CNC Machine Lamp IP65 Waterproof 5W 7.5W Anti Oil
ONN-M2 Long Arm LED CNC Machine Lamp IP65 Waterproof 5W 7.5W Anti Oil
ONN-M2 Long Arm LED CNC Machine Lamp IP65 Waterproof 5W 7.5W Anti Oil
ONN-M2 Long Arm LED CNC Machine Lamp IP65 Waterproof 5W 7.5W Anti Oil
ONN-M2 Long Arm LED CNC Machine Lamp IP65 Waterproof 5W 7.5W Anti Oil
ONN-M2 Long Arm LED CNC Machine Lamp IP65 Waterproof 5W 7.5W Anti Oil
ONN-M2 Long Arm LED CNC Machine Lamp IP65 Waterproof 5W 7.5W Anti Oil
ONN-M2 Long Arm LED CNC Machine Lamp IP65 Waterproof 5W 7.5W Anti Oil
ONN-M2 Long Arm LED CNC Machine Lamp IP65 Waterproof 5W 7.5W Anti Oil
ONN-M2 Long Arm LED CNC Machine Lamp IP65 Waterproof 5W 7.5W Anti Oil
ONN-M2 Long Arm LED CNC Machine Lamp IP65 Waterproof 5W 7.5W Anti Oil
ONN-M2 Long Arm LED CNC Machine Lamp IP65 Waterproof 5W 7.5W Anti Oil
Specifications
Delivery Time :
5-8 work days
Power :
5w/7.5w
Supply Ability :
300pcs 8-10 working days
Input Voltage(V) :
AC/DC 12/24V, AC220V
Warranty(Year) :
2-Year
Place of Origin :
Guangdong, China
Brand Name :
ONN
Application :
Workshop
MOQ :
1
Certification :
CE ROHS FCC
Price :
$35-39
Payment Terms :
T/T
Color Temperature(CCT) :
1.6000-6500K 2.4000-450K 3.2800-3200K
Model Number :
ONN-M2
Packaging Details :
12pcs/carton, 57*35*46cm, NW16kg, GW18kg
IP Rating :
IP65
Description

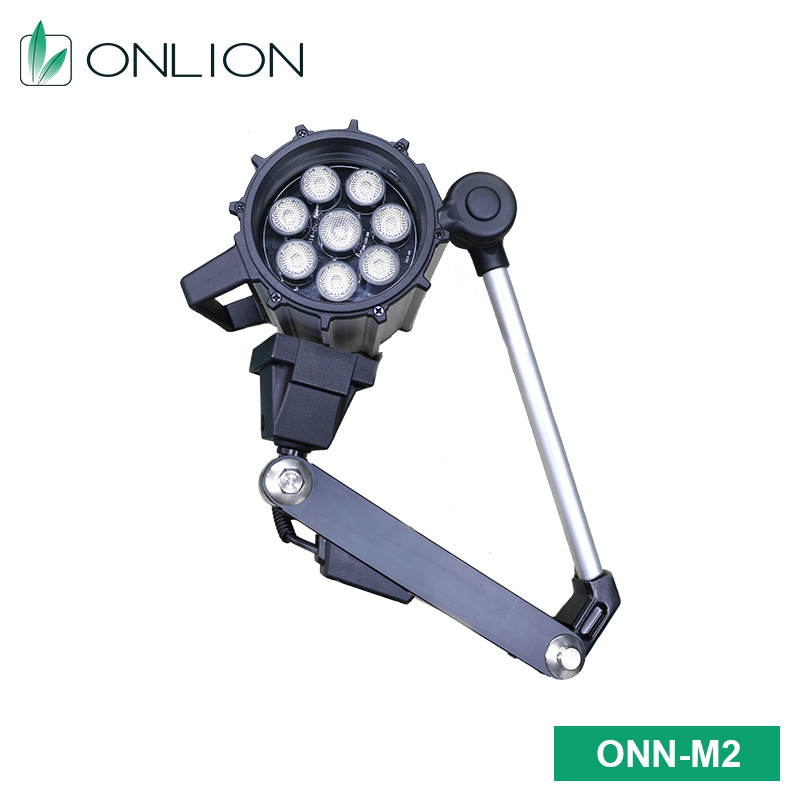

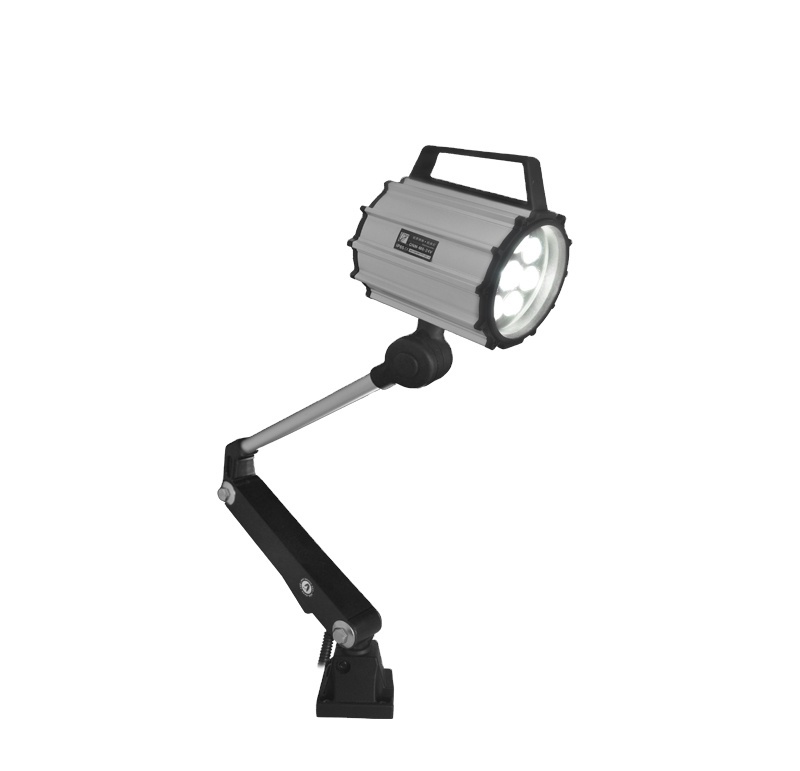

ONN-M2 Long Arm CNC Machine Lamp IP65 Waterproof 5W 7.5W Flexible Joint Anti Oil Industrial Lathe Lighting With Optional Switch

Product Overview

ONN-M2 multi-joint articulated long arm machine light is dedicated precision spotlight for CNC metal processing equipment. Adopts corrosion-resistant anodized aluminum housing & high-transmittance PC lens, IP65 dust & water resistant to resist coolant splashing. Multi rotating joints realize multi-angle free positioning, narrow 35° concentrated beam delivers ultra-high illuminance on cutting points. Multiple standard arm lengths, custom arm length acceptable, three voltage options match global machine standards, built-in switch version for convenient on/off control. Widely applied on CNC lathe, milling, EDM, engraving and precision inspection lab.

Quick Detail

  • Housing: Anti-corrosion anodized aluminum, high transmittance PC lens, IP65 industrial waterproof
  • Bracket: Multi-joint articulated long arm, full multi-direction rotation positioning
  • Light performance: 35° narrow focused beam, high illuminance at working point, CRI＞80
  • Power options: 5W / 7.5W, lamp head with switch or without switch
  • Voltage choices: A=AC/DC12V; B=AC/DC24V; C=AC100-240V 50/60Hz
  • Arm length: Multiple standard sizes, customized arm length support
  • CCT: 2800-3200K Warm /4000-4500K Natural /6000-6500K Cool white
  • Luminous efficiency: 90~100lm/W, long 50,000-hour LED lifespan
  • Working environment: -20℃~45℃, storage -40℃~70℃, humidity 10%-90%
  • Certifications: CE, TUV, FCC, RoHS full export certificates
  • Warranty: Global 2-year after-sales support

Specifications

Item Parameter
Model ONN-M2
Protection Grade IP65 Dustproof & Waterproof
Main Material Anodized Aluminum + PC Lens, PA+15%GF Base
Power 5W / 7.5W (Switch optional)
Input Voltage AC/DC12V(A), AC/DC24V(B), AC100-240V(C)
Beam Angle 35° Narrow Focused Beam
Luminous Efficiency 90~100lm/W
CRI ＞80
Optional CCT Warm / Natural / Cool White
Standard Arm Sizes 27+19cm /24+32cm /29+40cm /37+40cm /37+48cm
Custom Service Custom any arm length as request
LED Lifespan 50,000 Hours
Working Temp -20℃ ~ 45℃
Storage Temp -40℃ ~ 70℃
Certificates CE, TUV, FCC, RoHS
Warranty Period 2 Years

Competitive Advantages

  1. Multi-joint full rotation long arm, lamp head 300° rotate, base 350° rotate, freely lock target cutting spot
  2. IP65 sealed structure, resist cutting fluid, oil mist and workshop dust splashing
  3. 35° narrow concentrated beam, ultra high illuminance for precision machining tiny parts
  4. Three global universal voltage options, match European, American and domestic machine tools
  5. Built switch optional version, one-key control without external wiring switch
  6. Multiple standard arm lengths + custom length service, fit small/large machine space
  7. High efficiency 90-100lm/W LED, clear true workpiece color with CRI＞80
  8. Complete full-set export certificates CE/TUV/FCC/RoHS, smooth customs clearance worldwide

Applications

CNC lathe, milling machine, machining center, EDM wire cut, engraving equipment, assembly repair station, precision measuring laboratory.
Package Info

12pcs/carton, 57*35*46cm, NW16kg, GW18kg
