ONN-M2S Multi Angle Flexible Arm Work Lights IP65 COB CNC Machine Work Lights
ONN-M2S Multi Angle Flexible Arm Work Lights IP65 COB CNC Machine Work Lights
ONN-M2S Multi Angle Flexible Arm Work Lights IP65 COB CNC Machine Work Lights
ONN-M2S Multi Angle Flexible Arm Work Lights IP65 COB CNC Machine Work Lights
ONN-M2S Multi Angle Flexible Arm Work Lights IP65 COB CNC Machine Work Lights
ONN-M2S Multi Angle Flexible Arm Work Lights IP65 COB CNC Machine Work Lights
ONN-M2S Multi Angle Flexible Arm Work Lights IP65 COB CNC Machine Work Lights
ONN-M2S Multi Angle Flexible Arm Work Lights IP65 COB CNC Machine Work Lights
ONN-M2S Multi Angle Flexible Arm Work Lights IP65 COB CNC Machine Work Lights
ONN-M2S Multi Angle Flexible Arm Work Lights IP65 COB CNC Machine Work Lights
ONN-M2S Multi Angle Flexible Arm Work Lights IP65 COB CNC Machine Work Lights
ONN-M2S Multi Angle Flexible Arm Work Lights IP65 COB CNC Machine Work Lights
Specifications
Model Number :
ONN-M2
Input Voltage(V) :
AC/DC 12/24V, AC220V
MOQ :
1
Delivery Time :
5-8 work days
Warranty(Year) :
2-Year
Payment Terms :
T/T
Price :
$35-39
Application :
Workshop
Supply Ability :
300pcs 8-10 working days
Certification :
CE ROHS FCC
Power :
5w/7.5w
Brand Name :
ONN
Color Temperature(CCT) :
1.6000-6500K 2.4000-450K 3.2800-3200K
Packaging Details :
12pcs/carton, 57*35*46cm, NW16kg, GW18kg
Place of Origin :
Guangdong, China
IP Rating :
IP65
Description

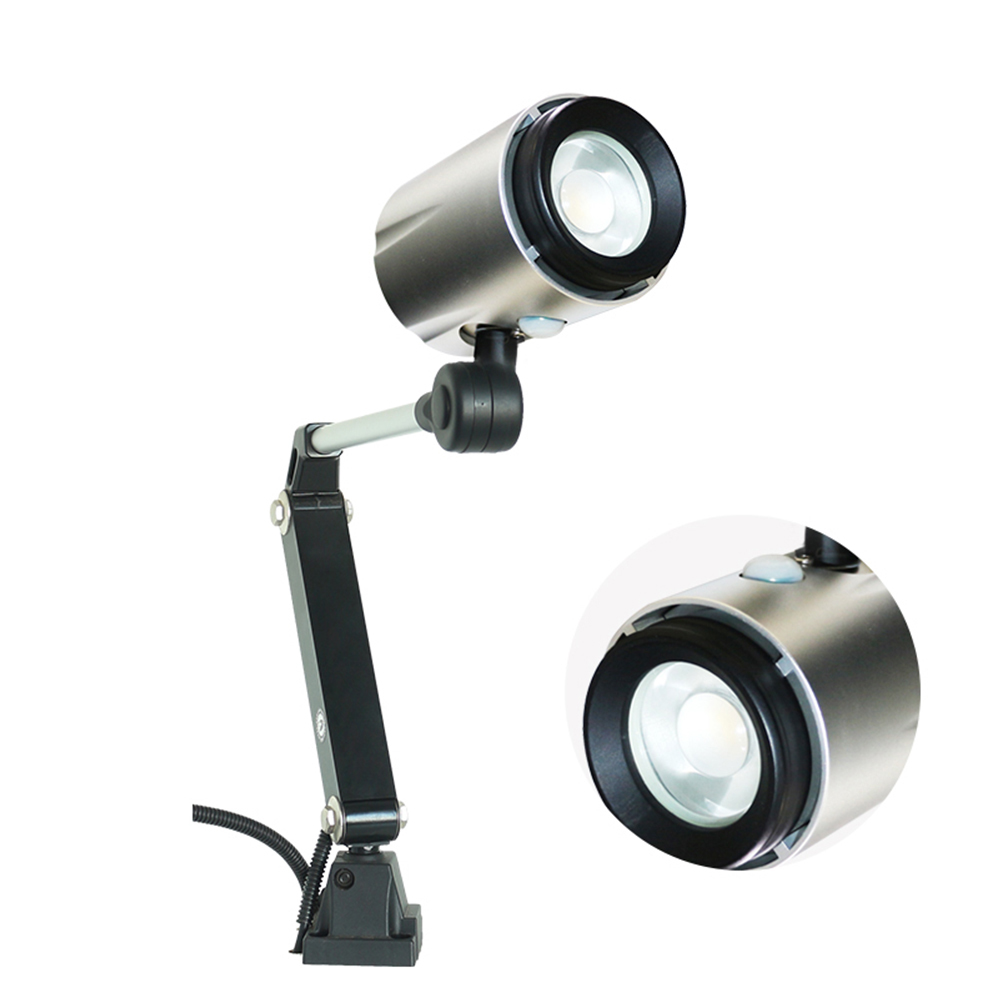

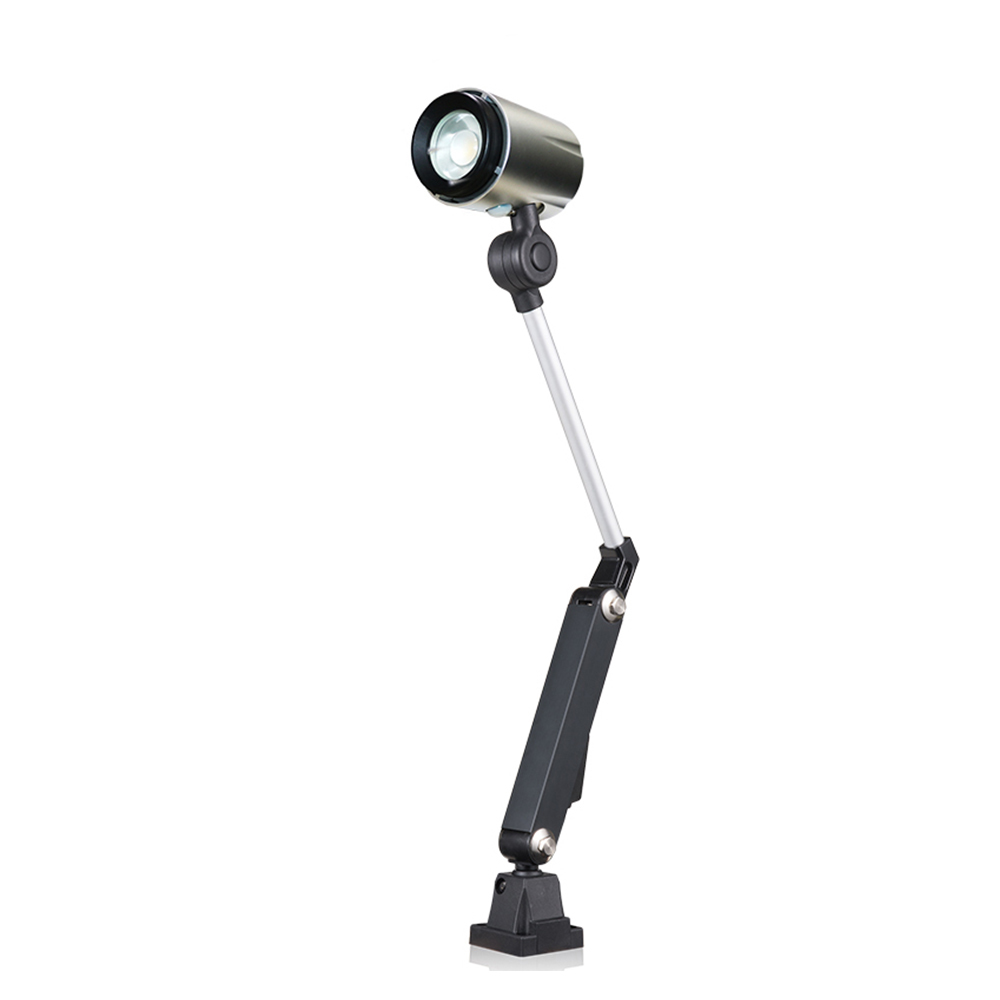

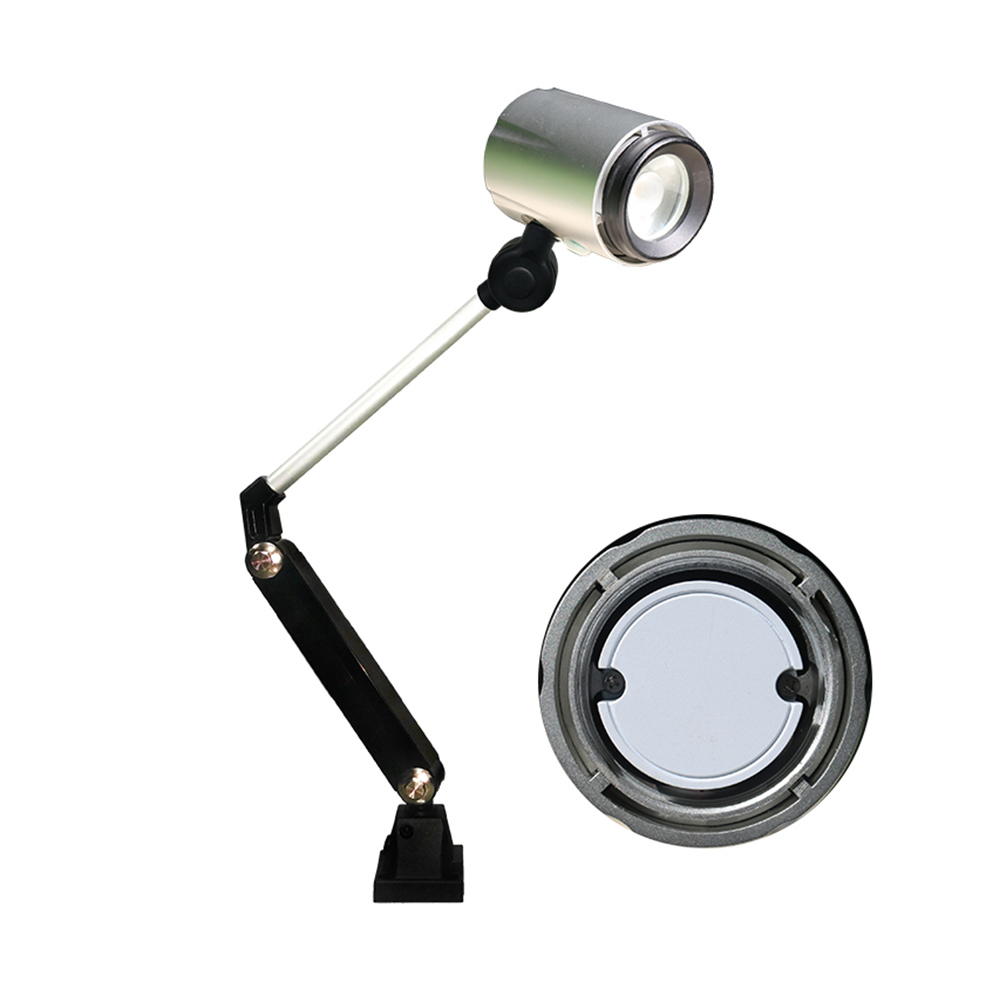

ONN-M2S IP65 COB CNC Machine Work Light | Multi-Angle Adjustable Arm

Product Overview

ONN-M2S is IP65 industrial machine lamp for CNC lathes, machining centers and EDM machines. Equipped with 9.5W high-power COB light source (102lm/W, 950lm, Ra＞82, 50,000h lifespan). Adopts layered aluminum heat sink, waterproof rubber ring and tempered glass lens. Die-cast aluminum multi-joint support with multi-angle rotation adjustment for flexible lighting. Supports DC24V / AC220V dual voltage & 3 color temperatures, fixed base mounting, 18-month factory warranty.

Quick Detail

  • IP65 waterproof dustproof industrial grade
  • 9.5W COB chip, 950lm, efficiency 102lm/W, Ra＞82
  • Isolated driver, PF＞0.9, beam angle 32°
  • Dual power: DC24V / AC200-240V, 3 CCT options
  • Multi-joint aluminum arm, multi-angle flexible adjustment
  • Wide temp range: -20℃~45℃ operation, -40℃~70℃ storage
  • 50,000h LED life, 18-month warranty

Specifications

Parameter Specification
Model M2S-B(DC24V) / M2S-C(AC220V)
Power 9.5W
Luminous Flux / Efficiency 950lm / 102lm/W
CRI / PF Ra＞82, PF＞0.9
CCT 2800-3200K / 4000-4500K / 6000-6500K
Beam Angle 32°
IP Rating IP65
Light Source High-power COB
Structure Aluminum heat sink + tempered glass + waterproof ring

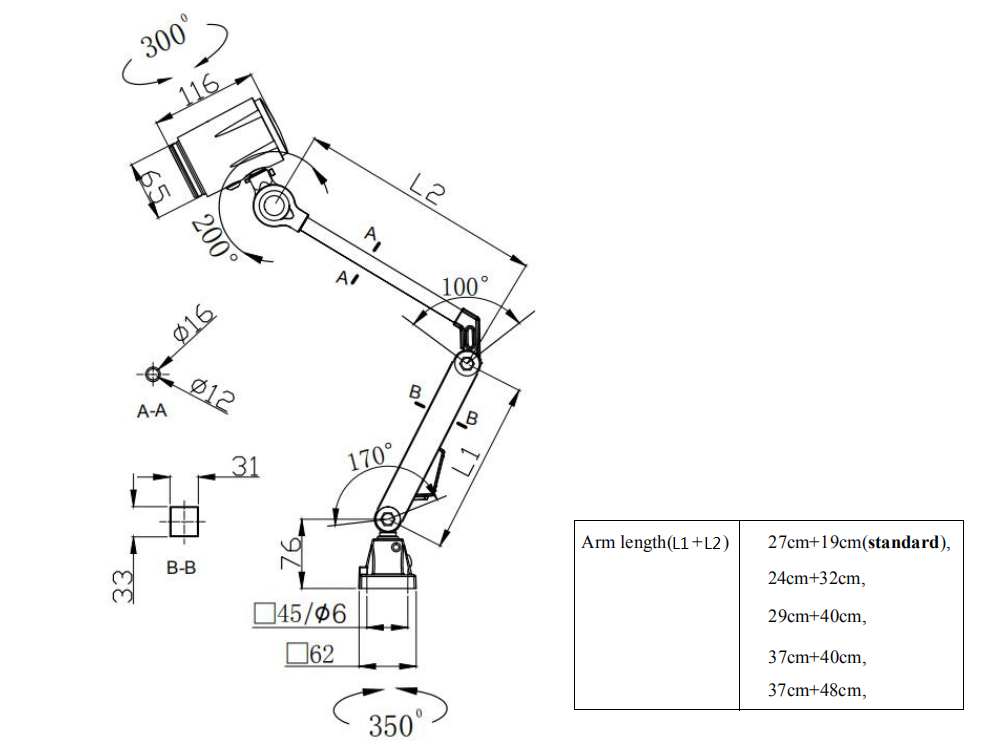

Bracket Die-cast aluminum multi-joint adjustable arm
LED Lifespan 50,000 Hours
Working Temp -20℃ ~ 45℃
Storage Temp -40℃ ~ 70℃
Mounting Fixed base, mounting hole Ø6mm
Standard Wire Length 0.5m
Warranty 18 Months
Core Selling Points
  • IP65 fully sealed structure, resist coolant, dust and workshop moisture
  • High-efficiency COB light source, low light decay, bright uniform machining illumination
  • Multi-section die-cast aluminum arm with multi-angle rotation, freely adjust light coverage
  • Dual voltage & 3 CCT options, match various machine tools and working environments
  • Excellent heat dissipation design, low lamp surface temperature for long service life

Competitive Advantage

  • Integrated layered heat dissipation, effectively reduce COB operating temperature and slow light decay
  • Multi-direction rotatable articulated arm, cover all machining positions without extra lamps
  • IP65 waterproof & oil-proof, adapt harsh workshop coolant splash environment
  • Isolated safe driver, stable output under voltage fluctuation
  • Compact solid structure, anti-vibration for long-time machine operation

Applications

CNC lathe, milling machine, machining center, EDM wire cut, engraving equipment, assembly repair station, precision measuring laboratory.
Package Info
Pack Item Details
Inner Box Size 470×310×120mm, 1pc per inner box
Outer Carton Size 510×330×620mm, 5pcs per carton
Single Net Weight 1.5 KG
Carton Gross Weight 10 KG
Package Printing Neutral OEM printing available for bulk orders
