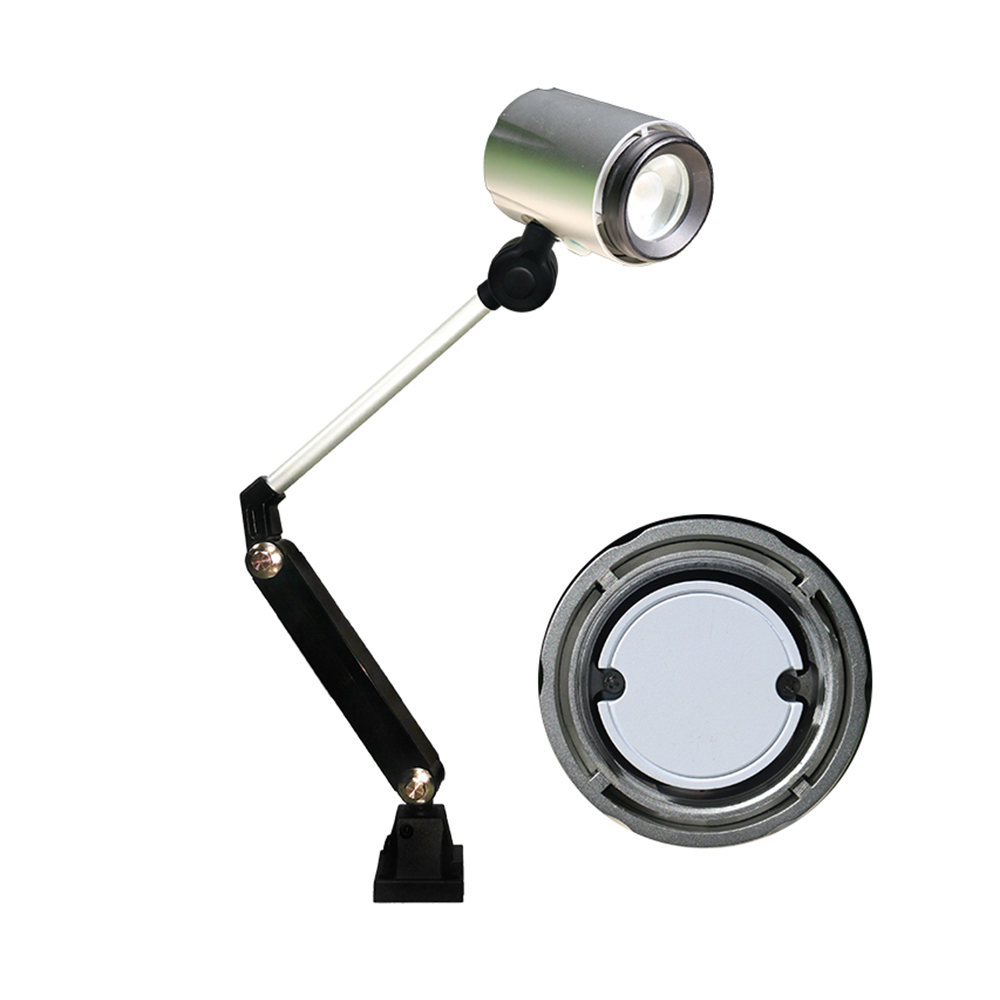

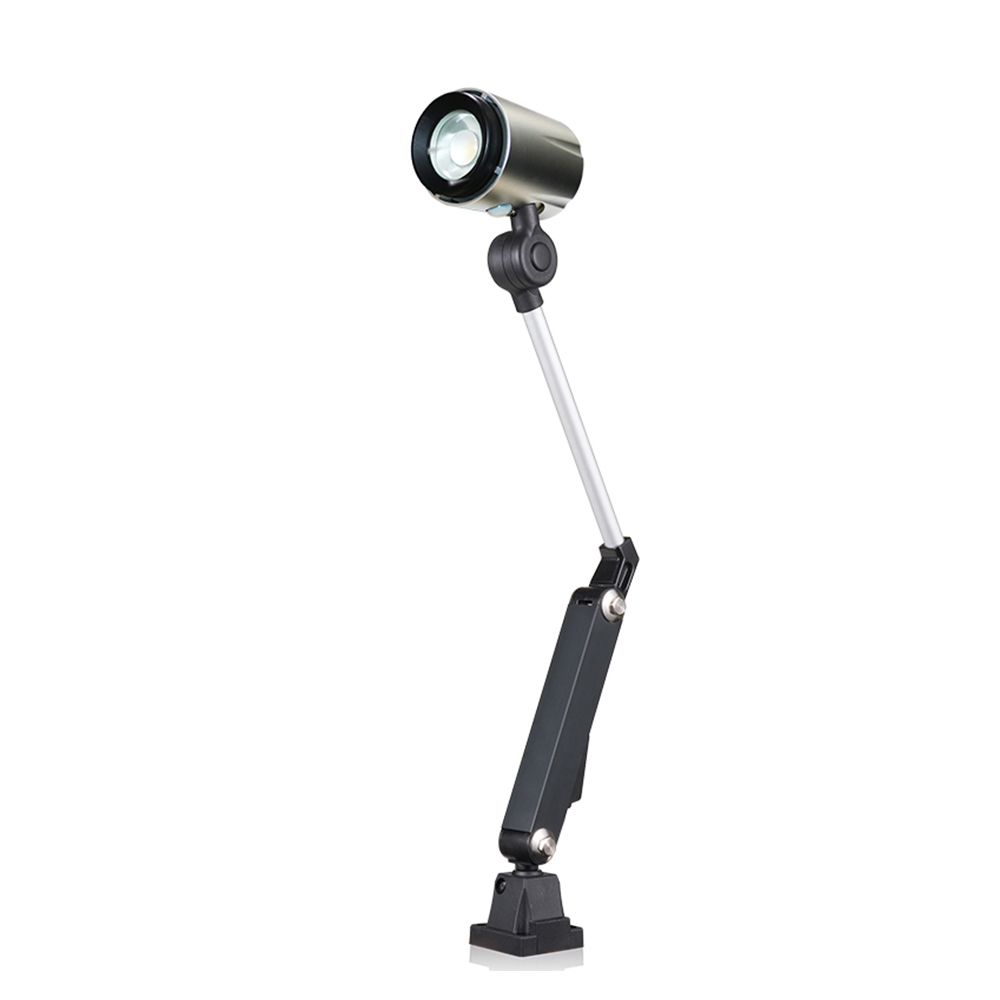

ONN-M2S IP65 Adjustable COB Machine Work Light Multi Angle Articulated Arm
ONN-M2S IP65 Adjustable COB Machine Work Light Multi Angle Articulated Arm
ONN-M2S IP65 Adjustable COB Machine Work Light Multi Angle Articulated Arm
ONN-M2S IP65 Adjustable COB Machine Work Light Multi Angle Articulated Arm
ONN-M2S IP65 Adjustable COB Machine Work Light Multi Angle Articulated Arm
ONN-M2S IP65 Adjustable COB Machine Work Light Multi Angle Articulated Arm
ONN-M2S IP65 Adjustable COB Machine Work Light Multi Angle Articulated Arm
ONN-M2S IP65 Adjustable COB Machine Work Light Multi Angle Articulated Arm
ONN-M2S IP65 Adjustable COB Machine Work Light Multi Angle Articulated Arm
ONN-M2S IP65 Adjustable COB Machine Work Light Multi Angle Articulated Arm
ONN-M2S IP65 Adjustable COB Machine Work Light Multi Angle Articulated Arm
ONN-M2S IP65 Adjustable COB Machine Work Light Multi Angle Articulated Arm
Specifications
Certification :
CE ROHS FCC
Power :
5w/7.5w
Model Number :
ONN-M2
Input Voltage(V) :
AC/DC 12/24V, AC220V
Price :
$35-39
Application :
Workshop
Supply Ability :
300pcs 8-10 working days
MOQ :
1
Delivery Time :
5-8 work days
Warranty(Year) :
2-Year
Payment Terms :
T/T
Brand Name :
ONN
Color Temperature(CCT) :
1.6000-6500K 2.4000-450K 3.2800-3200K
Packaging Details :
12pcs/carton, 57*35*46cm, NW16kg, GW18kg
Place of Origin :
Guangdong, China
IP Rating :
IP65
Description

ONN-M2S IP65 Adjustable COB Machine Work Light | Multi-Angle Articulated Arm

Product Overview

ONN-M2S heavy-duty IP65 machine lamp specially designed for CNC equipment. 9.5W high-power COB light source delivers 950lm, 102lm/W high efficiency and Ra＞82, service life up to 50,000hrs. Layered aluminum heat sink, waterproof seal and tempered glass ensure stable performance in oily, dusty workshops. Die-cast aluminum multi-joint arm supports all-direction angle adjustment. Available in DC24V / AC220V and 3 color temperatures, fixed base mounting, 18-month warranty.

Quick Detail

  • IP65 waterproof & oil-proof, fit harsh machine workshop
  • 9.5W COB, 950lm, 102lm/W, CRI Ra＞82
  • Isolated driver, PF＞0.9, narrow 32° focused beam
  • Dual voltage: DC24V / AC200-240V, 3 CCT optional
  • Multi-joint aluminum arm, flexible multi-angle positioning
  • Wide temperature tolerance: -20℃~45℃ operation
  • 50,000hrs long life, 18-month factory warranty
Specifications
Parameter Specification
Model M2S-B (DC24V) / M2S-C (AC220V)
Rated Power 9.5W
Luminous Flux / Efficiency 950lm / 102lm/W
CRI & PF Ra＞82, PF＞0.9
CCT Selection 2800-3200K / 4000-4500K / 6000-6500K
Beam Angle 32°
Protection Class IP65
Light Source High-power COB chip
Housing Aluminum heat sink + tempered glass + waterproof ring

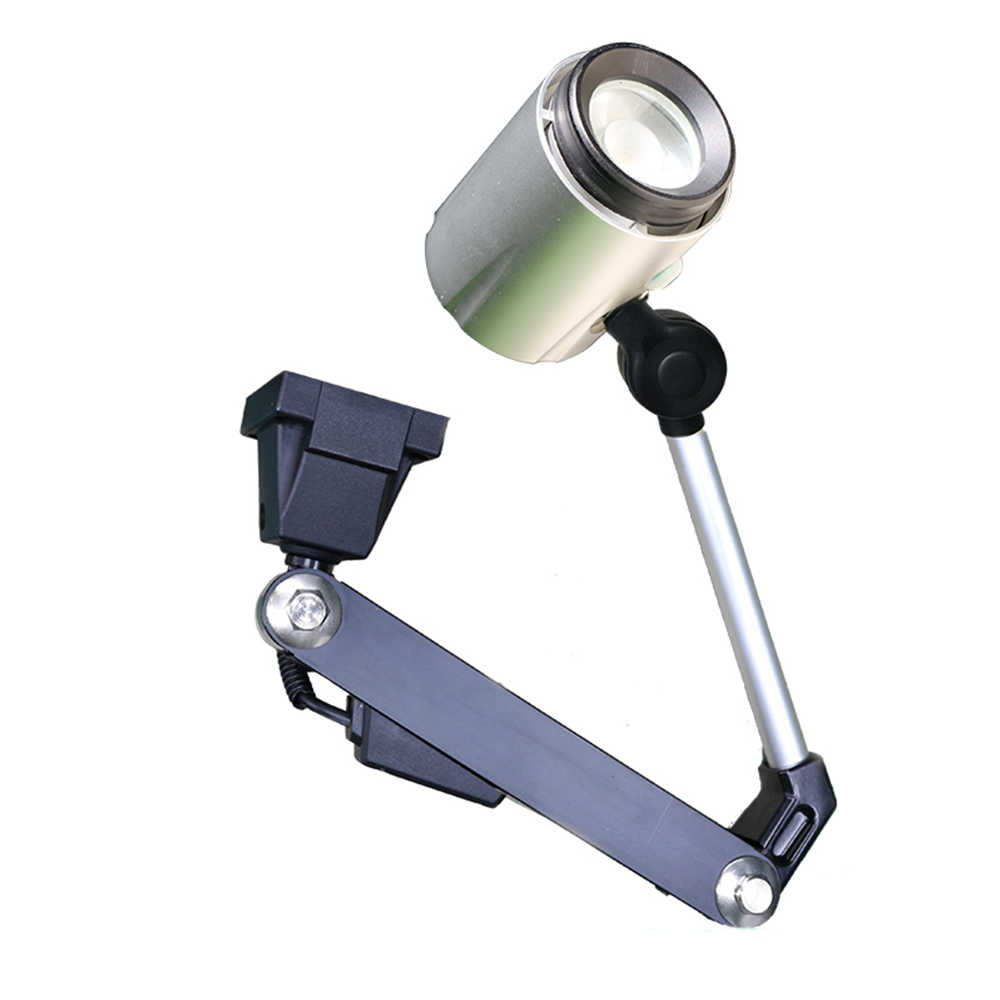

Bracket Die-cast aluminum multi-angle articulated arm
LED Lifespan 50,000 Hours
Working Temp -20℃ ~ 45℃
Mounting Fixed base, mounting hole Ø6mm
Standard Wire 0.5m length
Warranty 18 Months

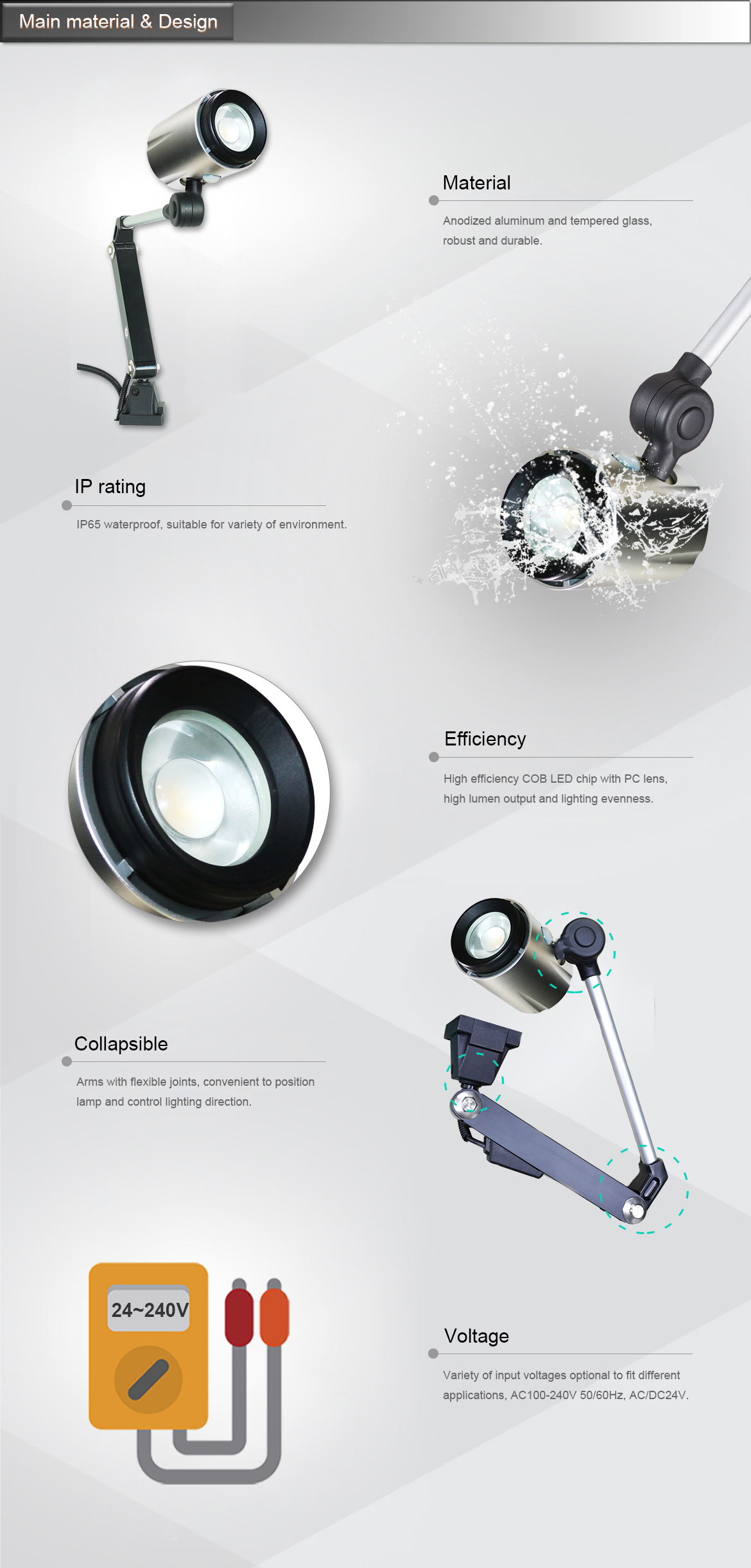

Core Selling Points
  • IP65 sealed construction, block cutting fluid, dust and moisture
  • High-performance COB with low light decay, clear focused machining lighting
  • Multi-section rotatable arm, freely adjust light to any processing position
  • DC & AC dual voltage + 3 CCT, compatible with all types of machine tools
  • Optimized heat dissipation keeps lamp surface cool, extend service life

Competitive Advantage

  • Layered heat dissipation design reduces chip temperature to slow brightness attenuation
  • Full-range adjustable articulated arm eliminates blind spots for machining operations
  • Oil & water resistant IP65 structure withstands coolant splashing daily
  • Isolated power supply, stable output against grid voltage fluctuation
  • Solid vibration-resistant body, durable for long continuous machine running

Applications

CNC lathe, milling machine, machining center, EDM wire cut, engraving equipment, assembly repair station, precision measuring laboratory.
Package Info
Pack Item Details
Inner Box Size 470×310×120mm, 1pc per inner box
Outer Carton Size 510×330×620mm, 5pcs per carton
Single Net Weight 1.5 KG
Carton Gross Weight 10 KG
Package Printing Neutral OEM printing available for bulk orders
