Specifications
Certification :
CE
Delivery Time :
6-9 work days
Input Voltage(V) :
24V/220V
Supply Ability :
5000pcs/month
Warranty(Year) :
2-Year
Model Number :
ONN-M9U
Mounting :
Fixed by Screw+Bracket
Place of Origin :
Guangdong, China
Lamp Luminous Flux(lm) :
665/1020/1360/2044
Brand Name :
ONLION
MOQ :
1
Packaging Details :
12pcs/ctn ,580*285*233mm, 8.22kg
Lamp Body Material :
Aluminum alloy, Aluminum
Price :
$12-$23
IP Rating :
Ip67
Description

ONN-M9U Industrial LED Explosion-Proof Light Aluminum Waterproof for CNC Machine

Product Overview

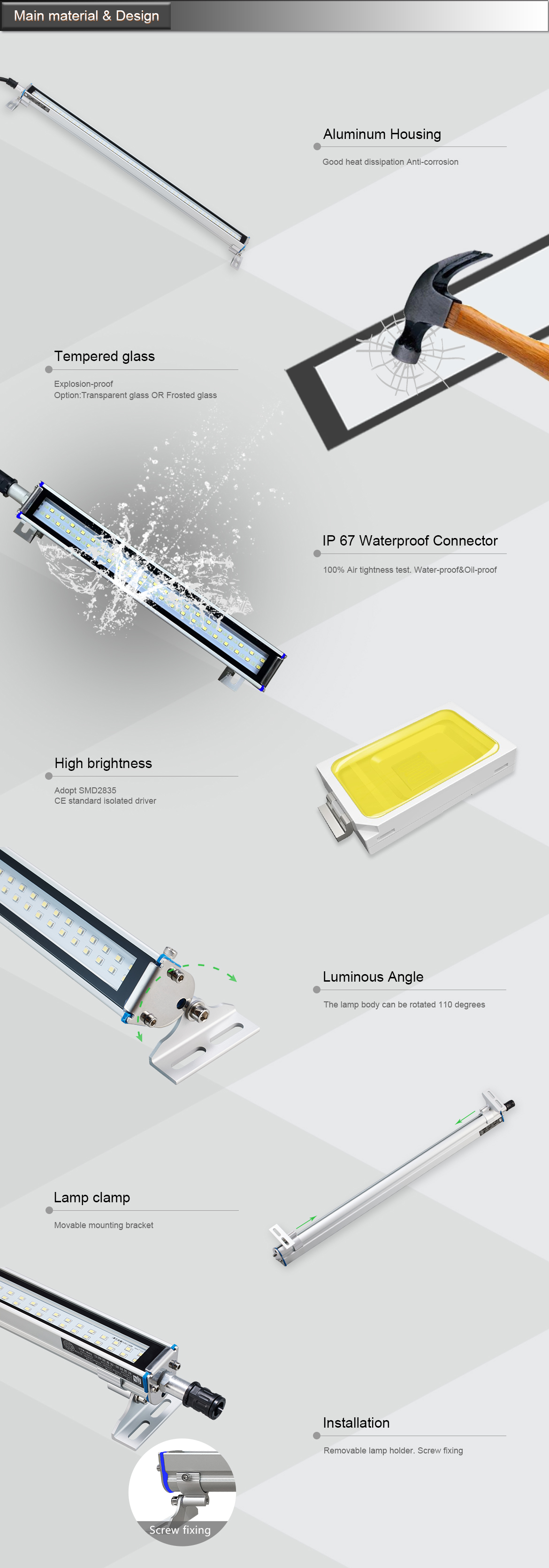

The ONN-M9U is an IP67-rated LED machine light engineered for harsh industrial environments. Featuring an anodized aluminum housing and tempered glass, it withstands high-pressure washdown, coolants, and detergents. High-brightness SMD2835 LEDs deliver 120lm/W with a 110° wide beam. The adjustable sliding bracket and fixed bracket allow flexible angle positioning, with easy post-installation light direction adjustment. Available in 5 lengths (200-800mm) and 3 CCT options (2800-7000K). Input: AC100-240V or AC/DC24V. CE/RoHS/FCC certified. 50,000hr lifetime. 2-year warranty.

Quick Detail

  • IP67 Waterproof: Resists washdown, coolants, detergents

  • 120lm/W Efficacy: SMD2835 high-brightness LEDs

  • Adjustable Brackets: Sliding + fixed, angle adjustable

  • Post-Install Adjustment: Light direction adjustable after mounting

  • 5 Lengths: 200mm/8W, 300S/12W, 400S/16W, 600S/20W, 800S/24W

  • 3 CCT Options: 2800-3200K / 4000-4500K / 6500-7000K

  • Voltage: AC100-240V or AC/DC24V

  • Beam Angle: 110° | CRI: >80

  • Lifetime: 50,000 hours | Warranty: 2 years

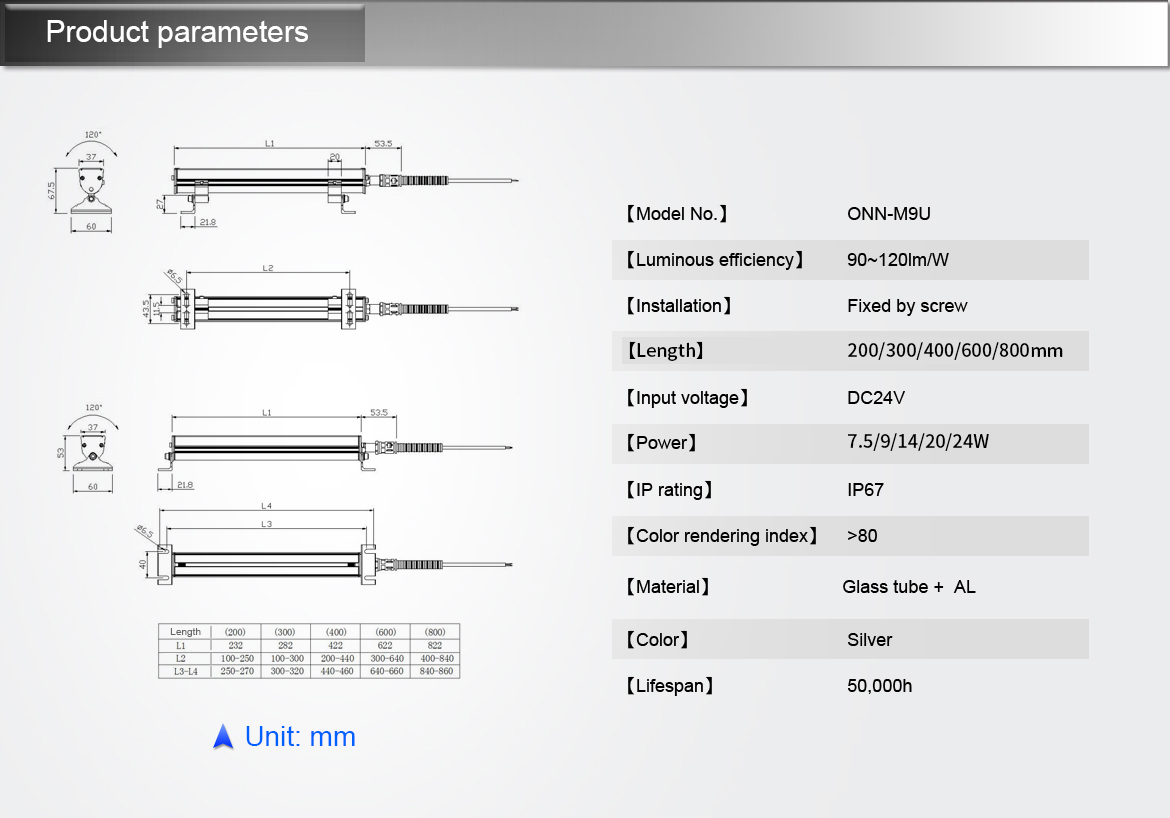

Specifications

Parameter Specification
Model ONN-M9U
Length/Power 200mm/8W, 300S/12W, 400S/16W, 600S/20W, 800S/24W
Efficacy 90-120lm/W
CRI >80
Beam Angle 110°
Voltage AC100-240V or AC/DC24V
IP Rating IP67
Material Aluminum + Tempered Glass
CCT 2800-3200K / 4000-4500K / 6500-7000K
Lifetime 50,000 hrs
Cert CE, RoHS, FCC

Key Advantages

  • IP67 — coolant/washdown resistant

  • 120lm/W — bright, energy efficient

  • Adjustable sliding + fixed brackets — flexible mounting

  • Post-install adjustment — fine-tune light direction

  • 5 lengths — fit any machine size

  • 3 CCT options — match application needs

Applications

CNC machines, EDM, engraving machines, assembly stations, laboratories, equipment interiors.

Package Info

Length 300S 400S 600S 800S
Qty/Carton 24pcs 12pcs 12pcs 9pcs
Carton Size 780*285*233mm 580*285*233mm 780*285*233mm 980*210*233mm
N.W. 10.38kg 6.72kg 8.7kg 9.5kg
G.W. 12.38kg 8.22kg 10.7kg 10.5kg
