ONN-M9R Industrial LED Work Light CE UL Certification Aluminum Housing for Workshop Lighting

Product Overview

The ONN-M9R series represents a significant advancement in industrial machine lighting, combining robust mechanical construction with high-performance optical engineering. Designed to withstand the most demanding manufacturing environments, this luminaire features an anodized aluminum housing that resists corrosion from coolants and cutting oils, paired with a tempered glass lens that maintains optical clarity despite repeated exposure to abrasive cleaning procedures. The SMD2835 LED array delivers 100 lumens per watt with a broad 110° beam angle, ensuring comprehensive workspace coverage with minimal fixture count. Three color temperature options enable application-specific selection—warm white for fatigue-reducing comfort, neutral white for balanced color perception, or daylight white for maximum contrast and detail recognition.

Quick Detail

• Construction: Anodized aluminum body with stainless steel mounting brackets; tempered glass front lens (PC lens optional)

• Ingress Protection: IP67 standard (dust-tight, protected against temporary immersion);

• Optical Performance: SMD2835 chips, 100lm/W efficacy, 110° beam angle, CRI >80

• Length/Power Matrix: 300mm/7W, 400mm/12W, 600mm/16W, 800mm/20W

• Color Temperatures: 2800-3200K (WW), 4000-4500K (NW), 6000-6500K (CW)

• Glare Management: Frosted cover available to diffuse light output for operator comfort

• Electrical Options: AC100-240V (50/60Hz) for mains connection, or AC/DC24V for low-voltage safety applications

• Thermal Management: Optimized heat sink design ensures LED junction temperatures remain within specified limits across full operating range

Competitive Advantages

• Chemical Resistance: Anodized aluminum and tempered glass construction withstands exposure to common machining fluids, including water-soluble coolants, cutting oils, and alkaline detergents

• Precision Color Rendering: >80 CRI ensures accurate color distinction, critical for identifying tool wear, surface finish quality, and material defects

• Adaptable Light Distribution: 110° wide beam covers large areas with fewer fixtures; optional frosted cover provides diffuse light for detailed inspection tasks

• Multi-Voltage Platform: One model supports both 24V low-voltage and AC mains input, simplifying inventory management across multiple machine platforms

• Hazardous Area Compliance: Atex certification enables safe installation in potentially explosive atmospheres (gas and dust environments)

• Long Operational Life: 50,000-hour

Technical Specifications

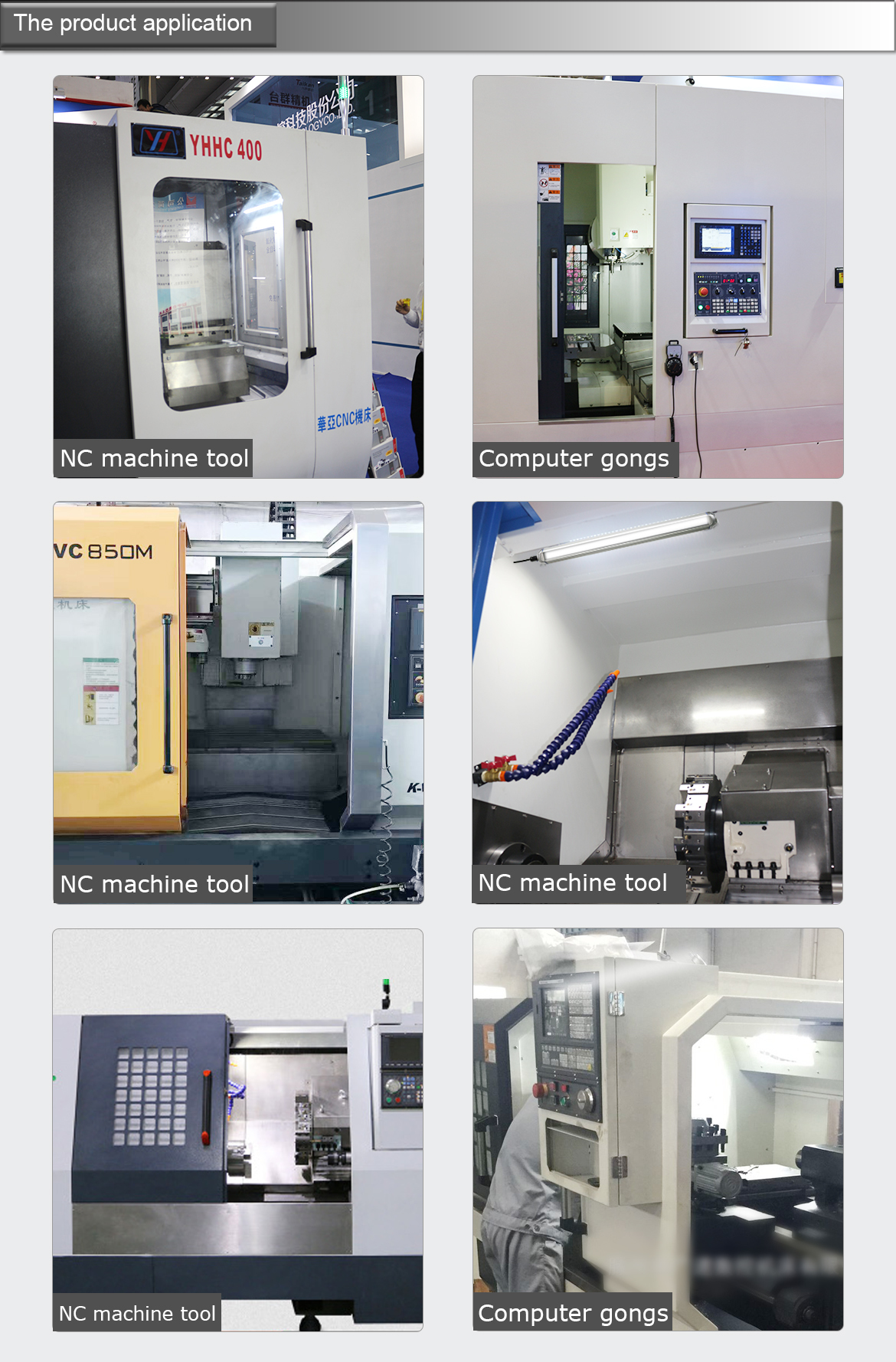

Applications

• Machining centers with high-pressure coolant systems

• EDM and wire-cut machines

• Industrial washdown zones
