ONN-M9C IP67 Waterproof LED Work Light DC24V 500mm Industrial Work Light For Workshop
ONN-M9C IP67 Waterproof LED Work Light DC24V 500mm Industrial Work Light For Workshop
ONN-M9C IP67 Waterproof LED Work Light DC24V 500mm Industrial Work Light For Workshop
ONN-M9C IP67 Waterproof LED Work Light DC24V 500mm Industrial Work Light For Workshop
ONN-M9C IP67 Waterproof LED Work Light DC24V 500mm Industrial Work Light For Workshop
ONN-M9C IP67 Waterproof LED Work Light DC24V 500mm Industrial Work Light For Workshop
ONN-M9C IP67 Waterproof LED Work Light DC24V 500mm Industrial Work Light For Workshop
ONN-M9C IP67 Waterproof LED Work Light DC24V 500mm Industrial Work Light For Workshop
ONN-M9C IP67 Waterproof LED Work Light DC24V 500mm Industrial Work Light For Workshop
ONN-M9C IP67 Waterproof LED Work Light DC24V 500mm Industrial Work Light For Workshop
ONN-M9C IP67 Waterproof LED Work Light DC24V 500mm Industrial Work Light For Workshop
ONN-M9C IP67 Waterproof LED Work Light DC24V 500mm Industrial Work Light For Workshop
Specifications
Payment Terms :
T/T
CCT :
2800-3200K/4000-4500K/6000-6500K
Price :
$31-35
MOQ :
2
Supply Ability :
500 pcs, 5-10 working days
Length :
500mm
IP Rating :
IP67
Model Number :
ONN-M9C
Place of Origin :
Guangdong, China
Brand Name :
ONN
Application :
Workshop, Warehouse, Other
Delivery Time :
5-8 working days
Power :
19W
Certification :
CE ROHS FCC
Packaging Details :
6 pcs/cartons, 710*335*210mm
Voltage :
DC24V
Description

ONN-M9C IP67 Waterproof LED Work Light DC24V 500mm Industrial Work Light for Workshop

Product Overview

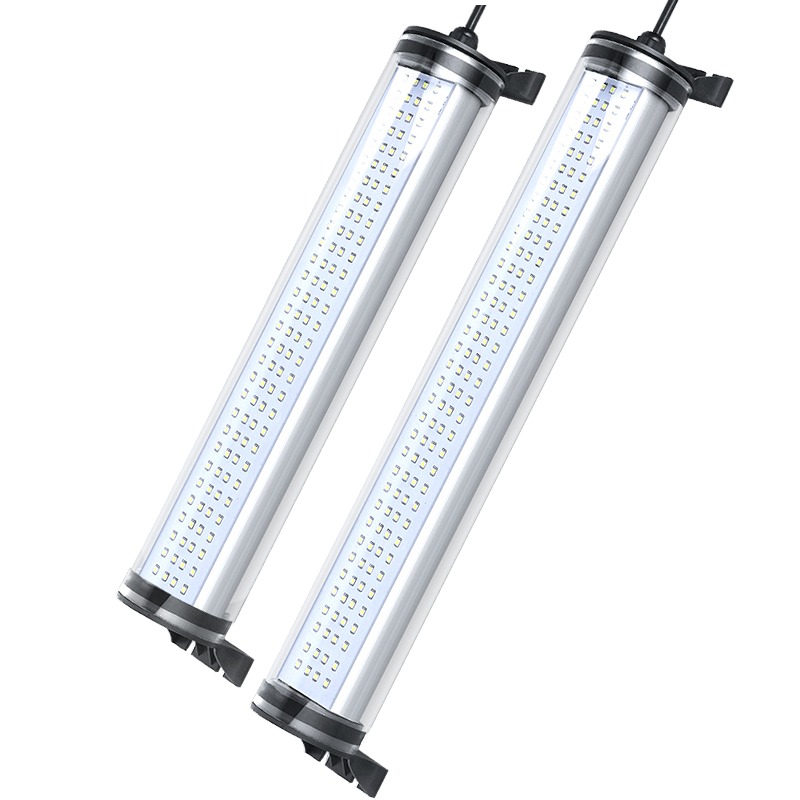

ONN-M9C industrial tubular machine light adopts integrated one-piece sealing design, neat & compact appearance. Equipped with resin rotating bracket supporting 360° free angle adjustment, easy to lock target lighting position. Built with high-transmittance tempered glass and impact-resistant PC light cover, equipped with high-efficiency SMD3030 LED chip (140lm/W ultra high luminous efficiency). IP67 dustproof & waterproof grade, resist cutting fluid splash, oil mist and workshop dust, specially designed for CNC lathe, milling machine and machining center with high protection demand. 3 color temperature options meet different machining lighting needs.

Quick Detail

  • Housing: Integrally sealed aluminum housing, resin rotatable bracket, tempered glass + PC dual light cover, IP67 waterproof dustproof
  • Light source: SMD3030 high efficiency LED, 110° wide uniform illumination angle
  • Voltage options: DC22V~26V (standard DC24V industrial voltage)
  • Electrical specs: Total power 19W, standard 0.5m output cable
  • Beam angle: 110° wide beam without dark shadow
  • Configurations: 3 CCT optional (Warm white / Natural white / Cool white), customizable LOGO laser printing
  • Mount type: M5 screw fixed bracket, 360° full angle rotation & locking
  • Light performance: Stable constant current drive, no stroboscopic light, low surface temperature
  • Environment: Operate -10~45℃, store -40~60℃, humidity 10%-90% non-condensing
  • LED service life: 50,000 hours long lifespan

Specification

Parameter Specification
Model ONN-M9C
Light Structure Integrated one-piece sealed tubular lamp
Power 19W
Input Voltage DC22V~26V (DC24V standard)
Luminous Efficiency 140lm/W
Beam Angle 110° Wide Angle
IP Rating IP67 Waterproof & Dustproof
Color Temperature 2800-3200K / 4000-4500K / 6000-6500K Optional
Material Sealed metal housing, tempered glass + PC diffuser, resin rotating bracket
Mounting Way M5 screw fixing, 360° rotatable adjustable bracket
Standard Cable Length 0.5m
Operating Temperature -10℃ ~ 45℃
Storage Temperature -40℃ ~ 60℃
Certifications CE, RoHS
Warranty Period 2 Years
Parameter Specification
Model ONN-M9C
Light Structure Integrated one-piece sealed tubular lamp
Power 19W
Input Voltage DC22V~26V (DC24V standard)
Luminous Efficiency 140lm/W
Beam Angle 110° Wide Angle
IP Rating IP67 Waterproof & Dustproof
Color Temperature 2800-3200K / 4000-4500K / 6000-6500K Optional
Material Sealed metal housing, tempered glass + PC diffuser, resin rotating bracket
Mounting Way M5 screw fixing, 360° rotatable adjustable bracket
Standard Cable Length 0.5m
Operating Temperature -10℃ ~ 45℃
Storage Temperature -40℃ ~ 60℃
Certifications CE, RoHS
Warranty Period 2 Years
<img src="/photo/led-machinelight/editor/20260703143442_92815.jpg" width="750" data-mce-src="/photo/led-machinelight/editor/20260703143442_92815.jpg">

Parameter Specification
Model ONN-M9C
Light Structure Integrated one-piece sealed tubular lamp
Power 19W
Input Voltage DC22V~26V (DC24V standard)
Luminous Efficiency 140lm/W
Beam Angle 110° Wide Angle
IP Rating IP67 Waterproof & Dustproof
Color Temperature 2800-3200K / 4000-4500K / 6000-6500K Optional
Material Sealed metal housing, tempered glass + PC diffuser, resin rotating bracket
Mounting Way M5 screw fixing, 360° rotatable adjustable bracket
Standard Cable Length 0.5m
Operating Temperature -10℃ ~ 45℃
Storage Temperature -40℃ ~ 60℃
Certifications CE, RoHS
Warranty Period 2 Years

Competitive Advantages

  • 360° full rotatable resin bracket, freely adjust lighting angle for different cutting processing positions
  • IP67 integrated sealing structure, fully resist cutting fluid, oil mist and workshop dust splashing
  • Ultra high luminous efficiency 140lm/W SMD3030 LED chip, brighter lighting with lower power consumption
  • Dual light cover design: high-transmittance glass + shockproof PC diffuser, anti-collision & long service life
  • Wide DC22~26V voltage range, perfectly match all DC24V industrial machine PLC power supply systems
  • Stable constant current drive & optimized heat dissipation, ensure long 50,000-hour LED service life
  • Compact streamlined tubular design, support OEM laser LOGO printing, high cost performance for machine OEM matchin
Application
CNC machine tools, CNC machining centers, CNC milling machines and other equipment that require high protection.
