ONN-X3F DC12V LED Freezer Light IP65 Waterproof Linear LED Strip Lights For Refrigerator
ONN-X3F DC12V LED Freezer Light IP65 Waterproof Linear LED Strip Lights For Refrigerator
ONN-X3F DC12V LED Freezer Light IP65 Waterproof Linear LED Strip Lights For Refrigerator
ONN-X3F DC12V LED Freezer Light IP65 Waterproof Linear LED Strip Lights For Refrigerator
ONN-X3F DC12V LED Freezer Light IP65 Waterproof Linear LED Strip Lights For Refrigerator
ONN-X3F DC12V LED Freezer Light IP65 Waterproof Linear LED Strip Lights For Refrigerator
ONN-X3F DC12V LED Freezer Light IP65 Waterproof Linear LED Strip Lights For Refrigerator
ONN-X3F DC12V LED Freezer Light IP65 Waterproof Linear LED Strip Lights For Refrigerator
ONN-X3F DC12V LED Freezer Light IP65 Waterproof Linear LED Strip Lights For Refrigerator
ONN-X3F DC12V LED Freezer Light IP65 Waterproof Linear LED Strip Lights For Refrigerator
ONN-X3F DC12V LED Freezer Light IP65 Waterproof Linear LED Strip Lights For Refrigerator
ONN-X3F DC12V LED Freezer Light IP65 Waterproof Linear LED Strip Lights For Refrigerator
Specifications
Certification :
CE
Length :
375mm(8W),550mm (10W），635mm(12W), 800mm(14W),1240mm(20W)
Model Number :
X3F
Packaging Details :
Follow up on the length
CCT :
2800-3200K,4000-4500K. 6000-6500K, pink light, blue light
MOQ :
1
Installation :
Clips/Screws
Supply Ability :
500 PCS
Price :
Negotiable
Lifespan :
50000h
Delivery Time :
3-7 work days
Brand Name :
ONN
Payment Terms :
T/T
Volatege :
DC 12V , DC24V, AC220V
Place of Origin :
China
IP rating :
IP 65
Description

ONN-X3F DC12V/AC200-240V Linear LED Strip Cooler Lights IP 65 Waterproof for Refrigerator

Product Overview

The ONN-X3F is a vapor-sealed IP65 LED freezer light designed for cold storage and display applications. Featuring high-brightness SMD2835 chips with 85-95lm/W efficacy, it delivers uniform illumination with wide beam angles (110°/200°). Available in 8 lengths (315-1435mm) and 3 CCT options (2800-3000K/4000-4500K/5500-6000K). Four light direction choices (left/right/central/double-sided 180°). Three installation methods: metal clips, double-sided tape, or magnet mount. Non-isolated driver, PF>0.9. 50,000hr lifetime. 2-year warranty.

Quick Detail

  • Vapor Sealed IP65: Moisture/steam proof — ideal for cold environments

  • SMD2835 LEDs: 85-95lm/W, CRI>80, low decay

  • 8 Lengths: 315/490/575/740/875/1025/1175/1435mm

  • 3 CCT Options: 2800-3000K / 4000-4500K / 5500-6000K

  • 4 Beam Directions: Left/Right/Central/Double-sided 180°

  • 3 Installations: Metal clip / Double-side tape / Magnet

  • Voltage: AC200-240V 50/60Hz | PF: >0.9

  • Surface Temp: <50°C | Lifetime: 50,000hrs

  • Warranty: 2 years

Specifications

Parameter Specification
Model ONN-X3F
IP Rating IP65
LED SMD2835
Efficacy 85-95 lm/W
CRI >80Ra
CCT 2800-3000K / 4000-4500K / 5500-6000K
Beam Angle 110° / 200°
Voltage AC200-240V (50/60Hz)
Driver Non-isolated, PF>0.9
Surface Temp <50°C
Lifetime 50,000 hours
Working Temp -20~45°C

Length/Power Table

Length (mm) 315 490 575 740 875 1025 1175 1435
Power 8W 11W 12W 16W 18W 20W 24W 30W

Key Advantages

  • Vapor sealed IP65 — no moisture concerns in freezers

  • 4 beam directions — flexible light aiming

  • 3 installation methods — clip/tape/magnet

  • 3 CCT options — match store ambiance

  • 8 lengths — fit any display size

  • Low surface temp (<50°C) — safe near food

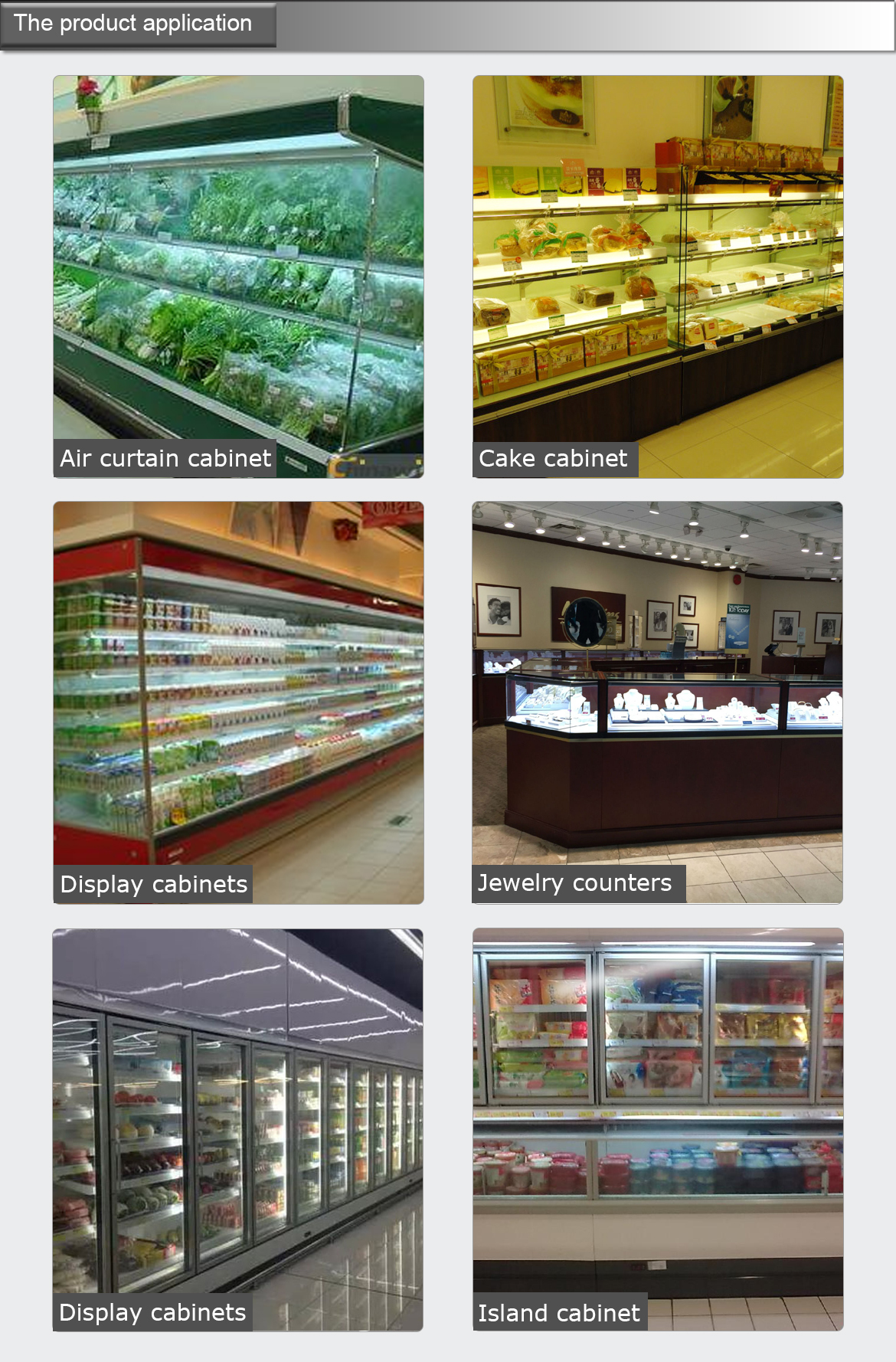

Applications

Refrigerators, freezers, walk-in coolers, display shelves, store counters, cold storage, supermarkets.

Package Info

Length (mm) 315 490 875 1025 1175 1435
Qty 16pcs 16pcs 8pcs 8pcs 8pcs 8pcs
G.W. 9kg 11kg 9.8kg 11.5kg 13kg 16.2kg
