Specifications
Certification :
CE
Warranty(Year) :
2-Year
Model Number :
X7A
IP Rating :
IP65
Supply Ability :
5000pcs/month
MOQ :
1
Delivery Time :
6~9 working days
Beam angle :
120 deg
Payment Terms :
T/T
Price :
$6~12
Color Temperature(CCT) :
6000-6500K, 4000-4500K, 2800-3200K
Brand Name :
ONN
Item Type :
Refrigerator Lamps
Packaging Details :
110pcs/carton
Place of Origin :
Guangdong, China
Lifespan (Hours) :
50000
Description

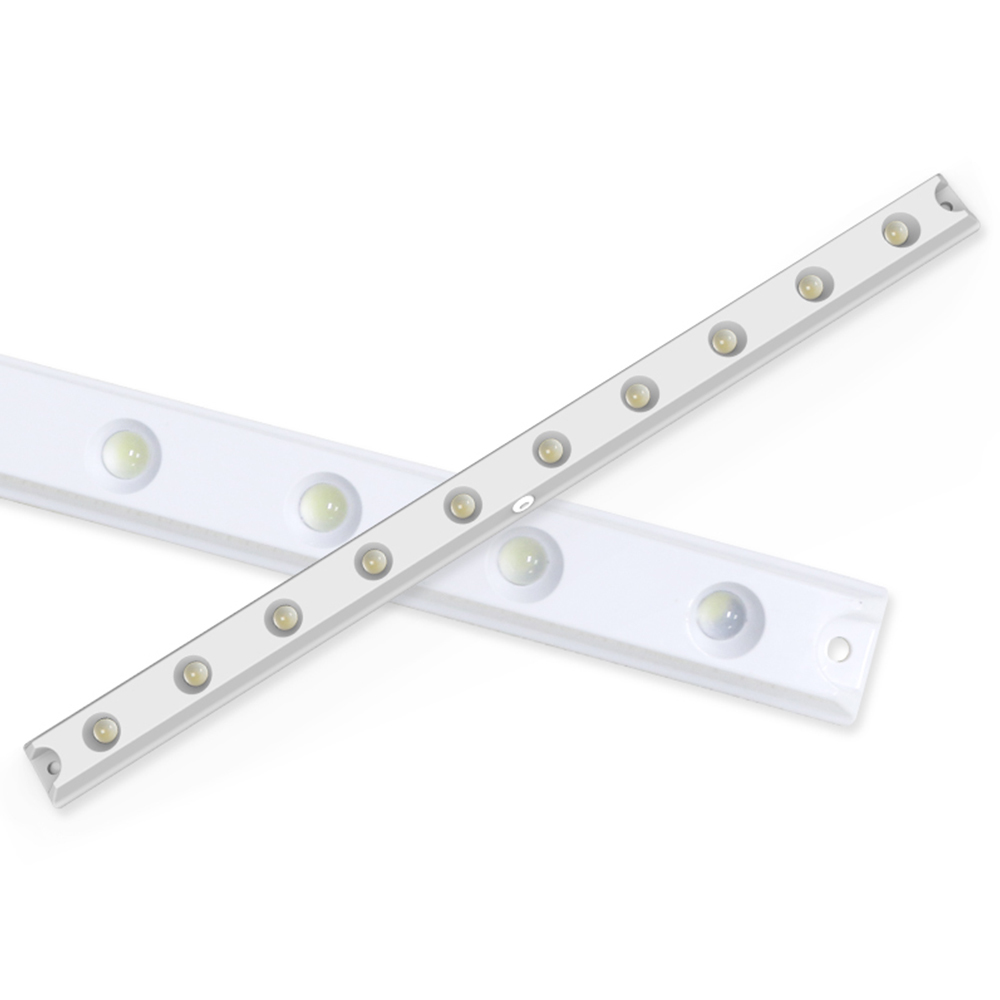

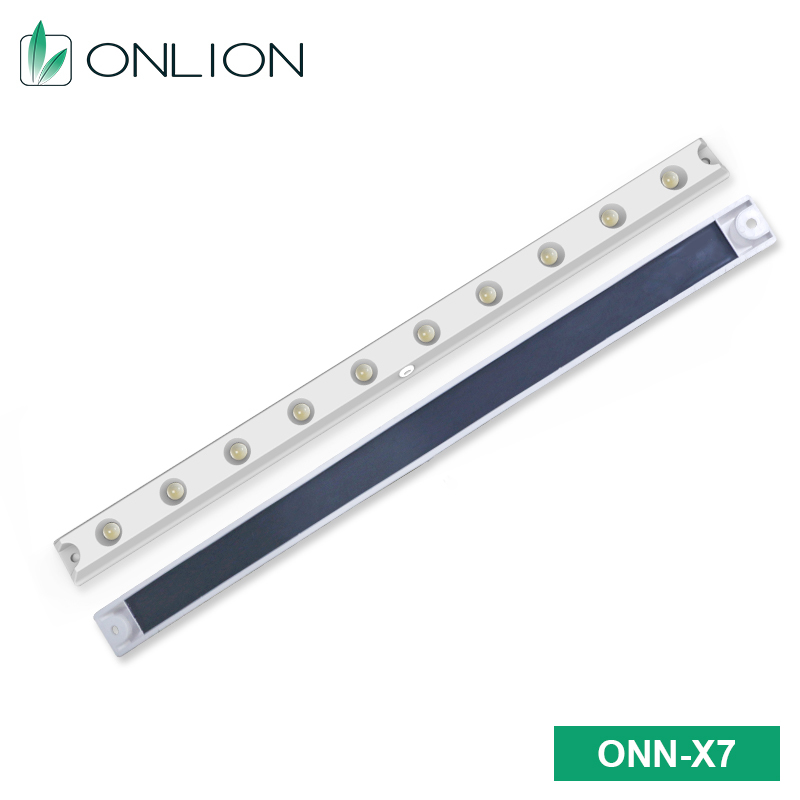

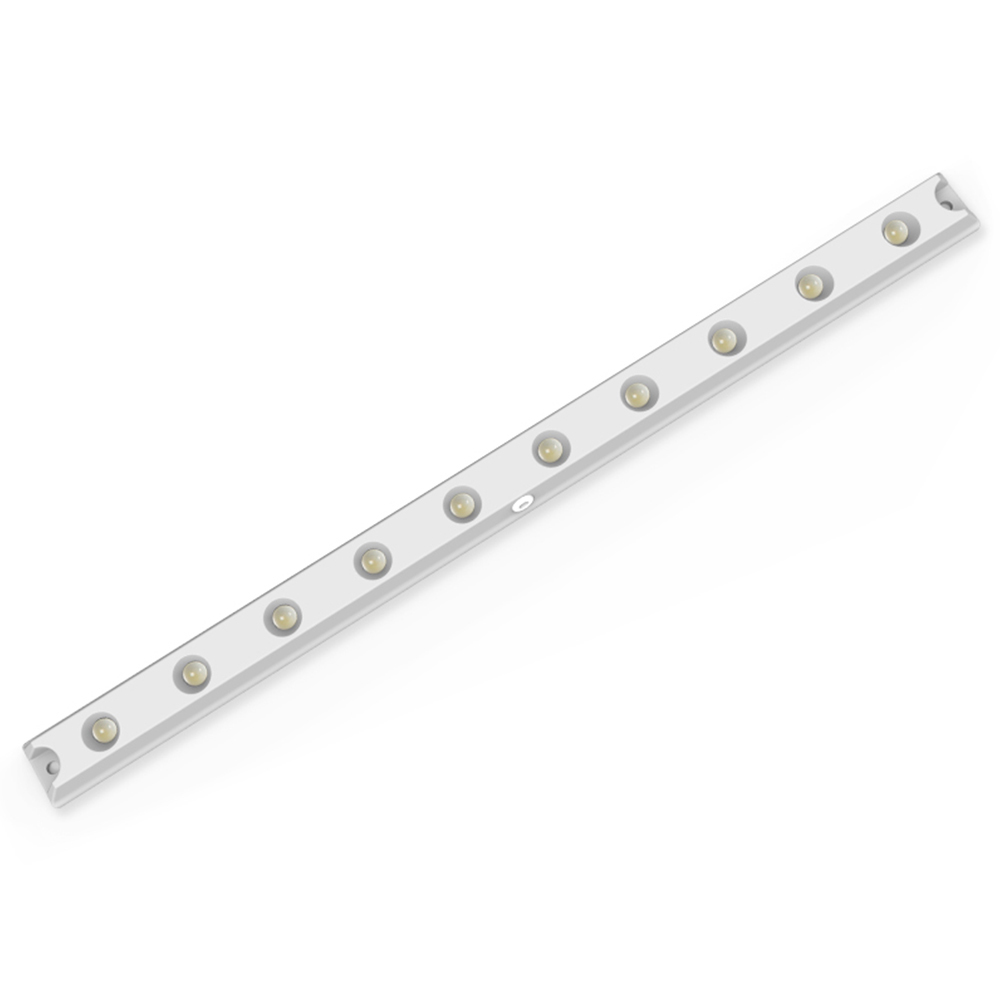

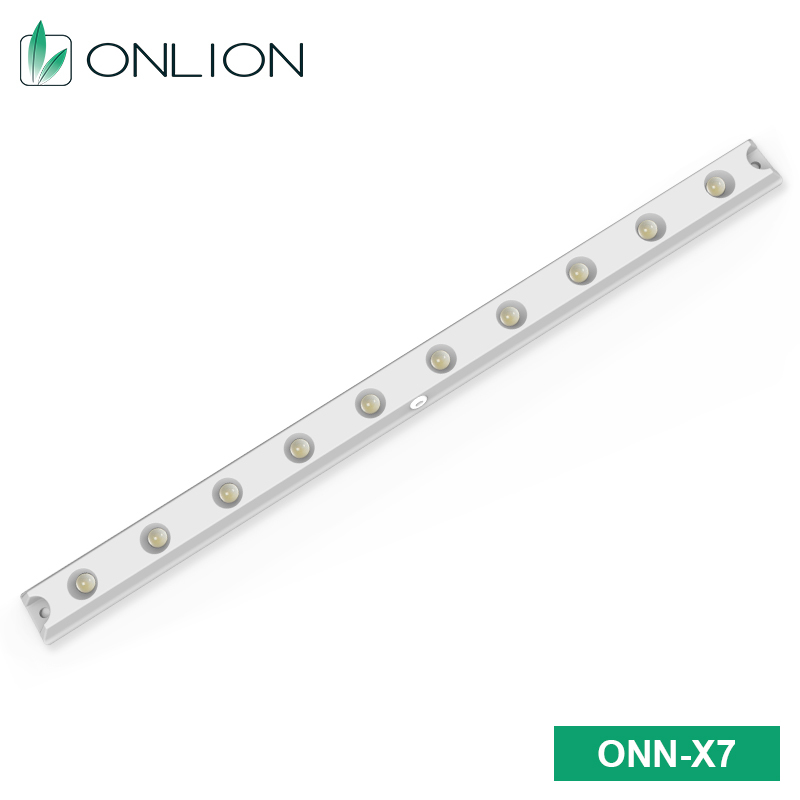

ONN X7A LED Cooler Light IP65 12W Superior Heat Dissipation for Commercial Coolers

Product Overview

The ONN-X7A is a patented triangular LED cooler light designed for refrigerated displays and freezers. Featuring a sleek, minimalist appearance with no cumbersome parts, it delivers energy-saving, eco-friendly illumination. Adopting 3030 lamp beads with superior heat dissipation and high brightness, it enhances visual appeal of refrigerator interiors. Completely flicker-free with no electromagnetic wave radiation, it prevents visual fatigue. IP65 rated for safe, reliable operation in cold, moist environments. Compact size with multiple fixing methods for easy installation. 415mm length, 12W, 3 CCT options. CE certification pending. 1-year warranty.

Quick Detail

  • Patented Triangular Design: New appearance patent, simple and elegant

  • 3030 Lamp Beads: Better heat dissipation, high brightness

  • Flicker-Free: No visual fatigue, eye-friendly

  • No Radiation: No electromagnetic wave radiation

  • IP65 Waterproof: Safe for cold, moist environments

  • Compact Size: Small footprint, multiple fixing methods

  • Voltage: AC180-240V 50/60Hz

  • Power: 12W | Length: 415mm

  • Efficacy: 70lm/W | CRI: >80

  • Beam Angle: 20° (focused illumination)

  • CCT: 6000-6500K / 4000-4500K / 2800-3200K

  • Lifetime: 50,000 hours | Warranty: 1 year

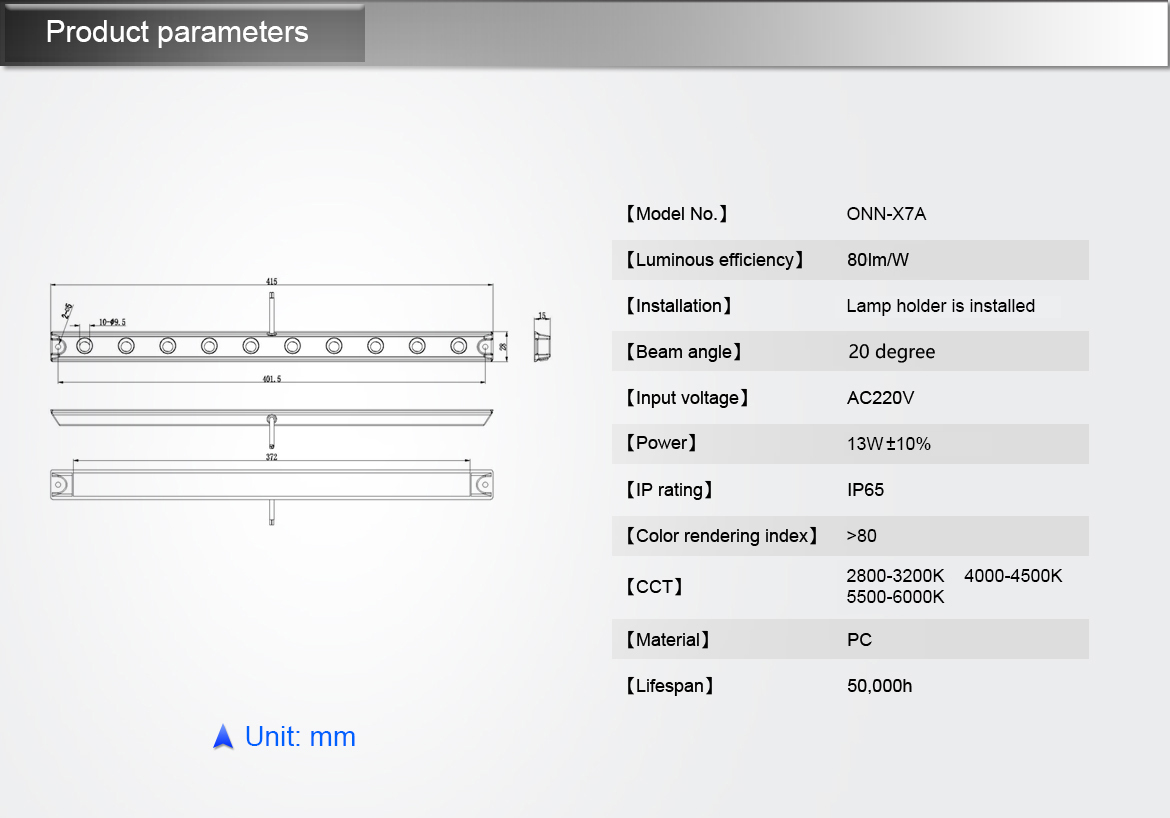

Specifications

Parameter Specification
Model ONN-X7A
Material PC housing + Aluminum PCB
Voltage AC180-240V 50/60Hz
Power

12W

Length 415mm
Efficacy 70lm/W
CRI >80Ra
Beam Angle 20°
IP Rating IP65
CCT 6000-6500K / 4000-4500K / 2800-3200K
Working Temp -20~45°C
Lifetime 50,000 hours
Installation 2pcs Φ4mm screws
Wire Length 0.7m
Cert CE (pending)

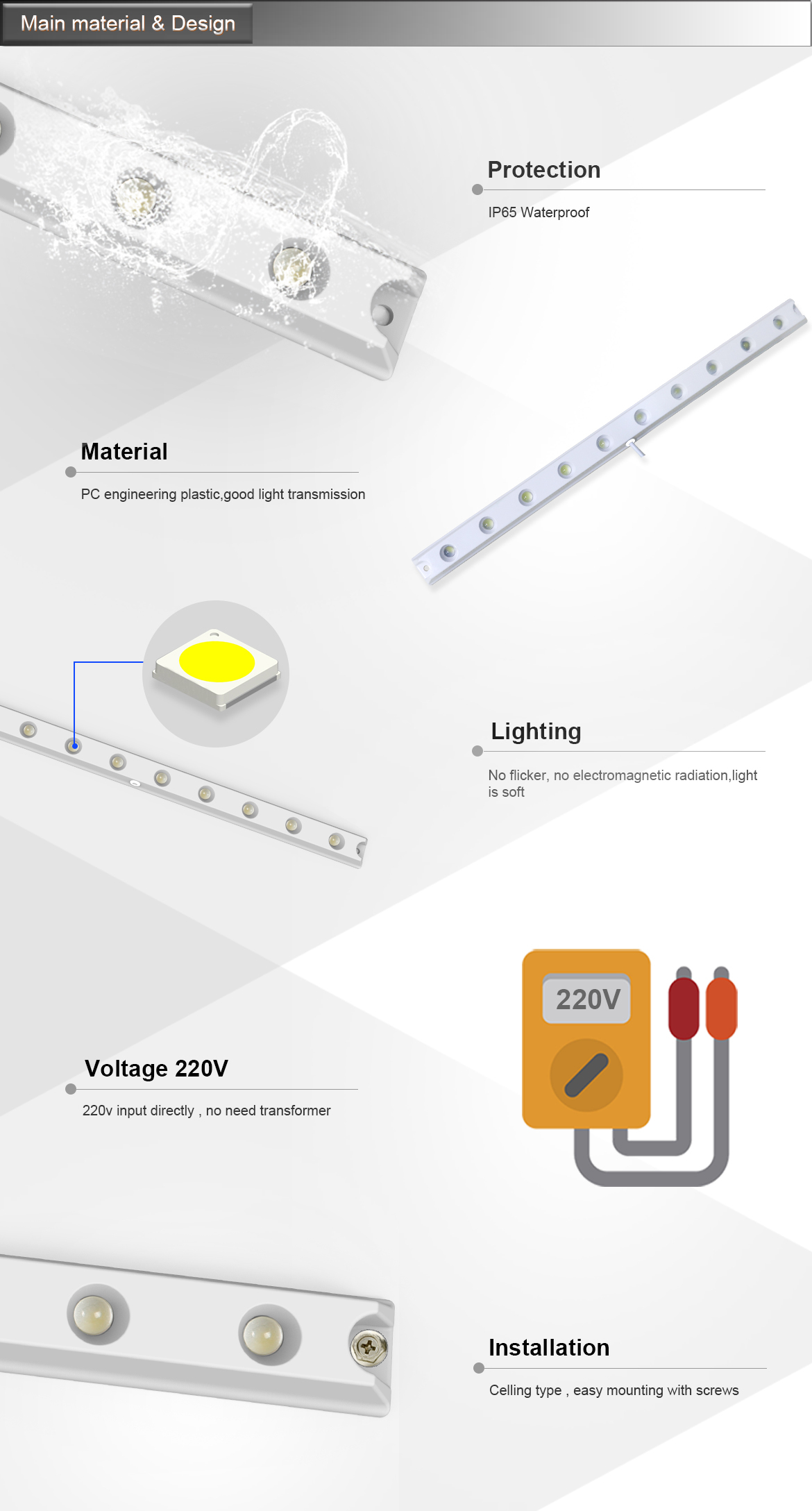

Key Advantages

  • Triangular patent design — unique appearance, simple elegant

  • 3030 lamp beads — excellent heat dissipation, high brightness

  • Flicker-free + no radiation — reduces visual fatigue

  • IP65 rated — safe for freezer/cooler environments

  • Compact size — fits tight spaces

  • 3 CCT options — match different display needs

  • 20° focused beam — precise illumination

Applications

Freezers, commercial coolers, drink displays, refrigerated displays, supermarket cold storage, freezer interiors.

Package Info

Item Detail
Package Material Carton
Lamp Size 415mm
NW/PC 0.195kg
GW/Carton 22.7kg
Qty/Carton 110pcs
Foam Size 385*100*30mm
Carton Size 440*265*345mm
