Waterproof LED Freezer Lamp Energy-saving Long Life Span LED Cold Lamp for Refrigerator Showcase X1B

Product Overview

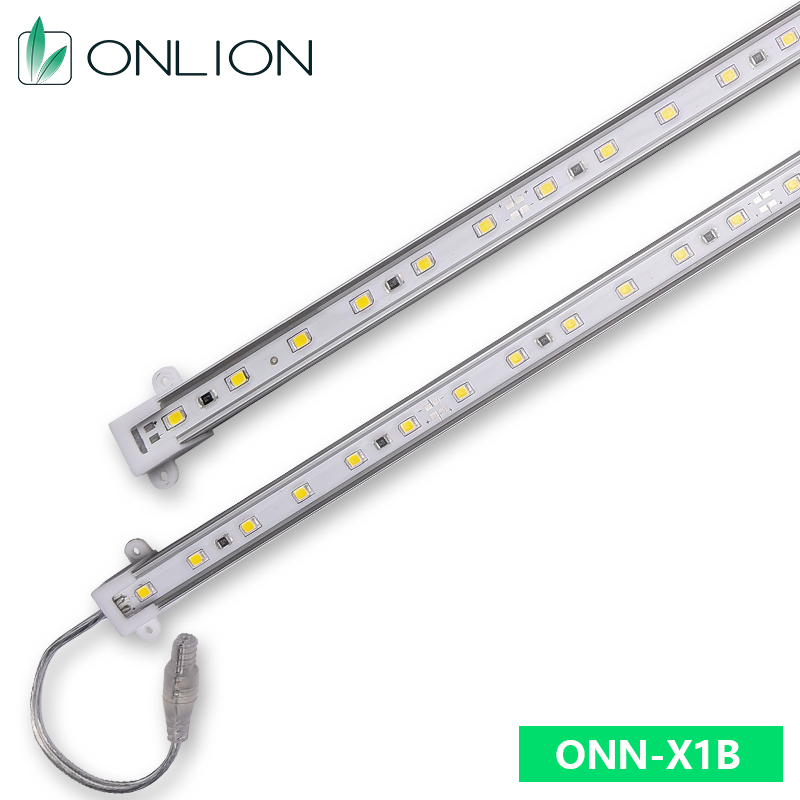

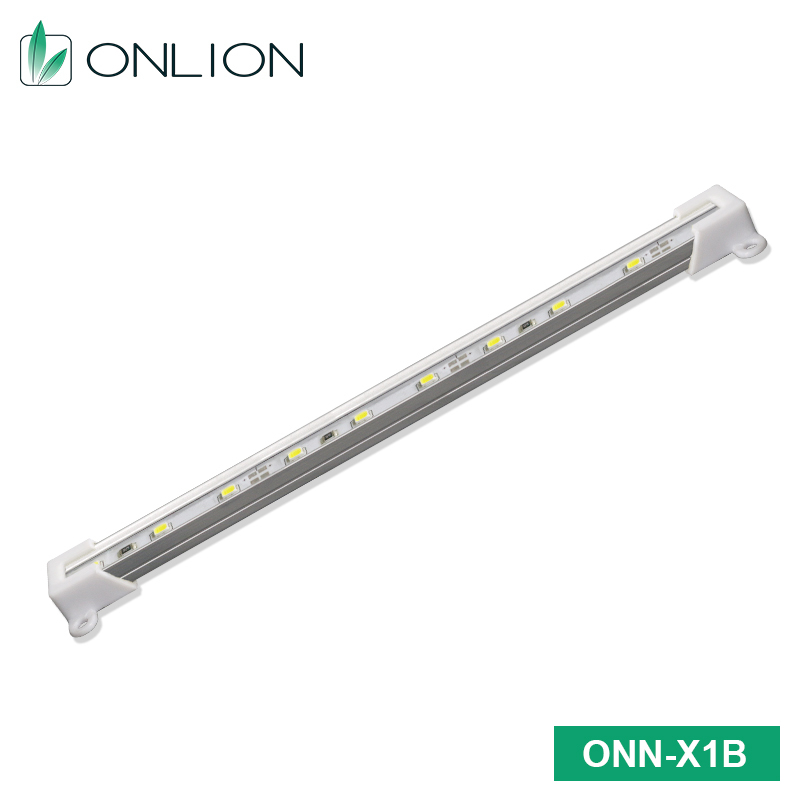

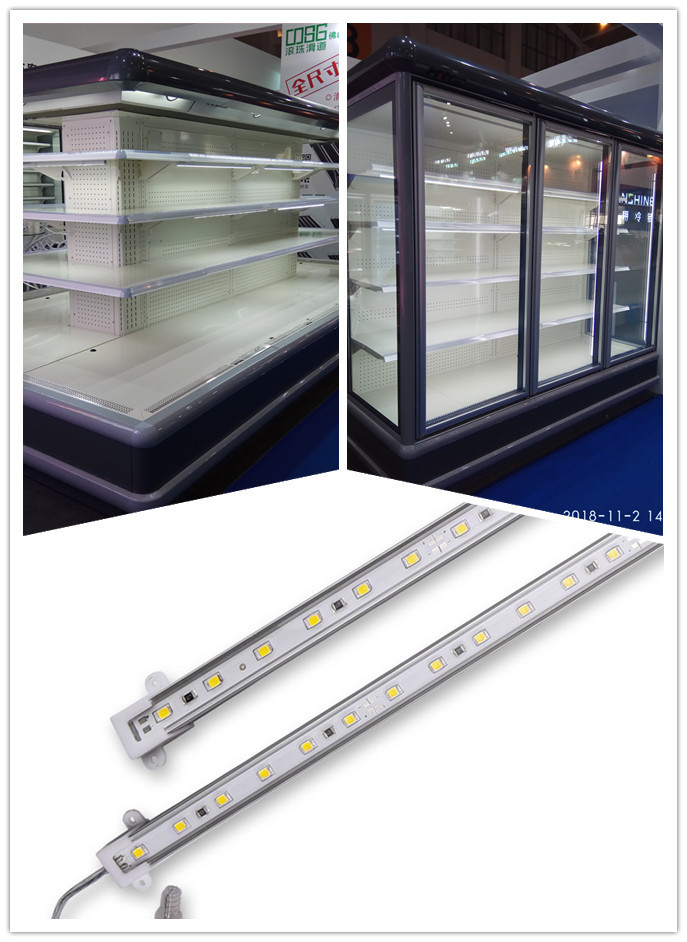

Slim linear LED strip specially designed for refrigerated cabinets, supermarket shelves and jewelry counters, with patented single-line light-emitting structure. Adopts 2835 SMD LEDs and aluminum PCB for superior heat dissipation, IP55 dust & water resistance. Two mounting options, multiple lengths, dual DC12/DC24 voltage and two color temperature selections, energy-saving with 50,000-hour service life, 12-month warranty.

Quick Detail

• Housing: Aluminum substrate + PC cover, IP55 rating
• Light source: 2835 SMD LED, 120° beam angle, CRI Ra≥80, luminous efficiency 80–90Lm/W
• Voltage options: AC/DC12V / AC/DC24V
• CCT: 5500–6000K cool white / 4000–4500K neutral white
• Standard lengths & power: 900mm(9.5W), 1200mm(12W), 1500mm(14W); customizable 200–1500mm
• Current: 12V(790–1170mA) / 24V(395–590mA)
• Luminous flux: 760lm / 1080lm / 1280lm for three standard sizes

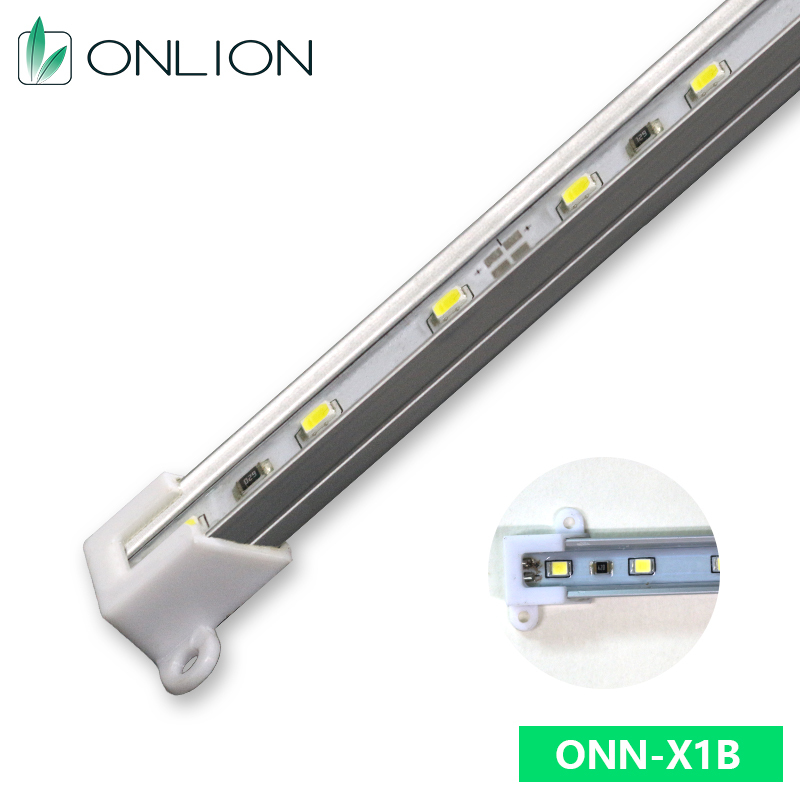

• Mounting: Plastic end cap fixing; slidable stainless steel clip mounting
• Standard wire: 0.15m length
• Surface temperature: ＜60℃
• Lifespan: 50,000H
• Environment: Operate -20~45℃, store -40~70℃, humidity 10%–90%

Specifications

Competitive Advantages

• Patented single-line light-emitting design with neat appearance and no redundant components
• Aluminum PCB greatly reduces light decay and extends lamp service life
• Two flexible installation solutions to fit different cabinet sheet metal structures
• Low-profile slim body saves internal shelf space of cold cabinets
• All-metal body avoids breakage during transport and daily use
• Dual industrial low voltage compatible with cold storage control power supply

Applications

CNC machining centers, SMT lines, automated packaging, injection molding, robotics workcells, conveyors, and industrial warning systems.

Package Info

96pcs per outer carton for 1500mm model, single N.W.0.15kg, carton total weight 16.5kg
