ONN-X3ES IP65 Sealed LED Cooler Light, DC12/24V & AC220V Optional, 6000K Cool White, Slim Screw-Mount Design for Supermarket Freezers and Retail Display Cabinets

Product Overview

Slim linear refrigeration lamp with full hermetic sealed structure to resist water mist and condensed water inside freezers. Three voltage options (DC12V / DC24V / AC220V) are available, only 6000–6500K cool white color temperature. Adopts 2835 SMD LEDs, features screw end-cap installation and two wire outlet layouts (side / bottom for low voltage). Equipped dedicated waterproof mating connectors, 40,000-hour LED lifespan, 12-month warranty for supermarket freezers, beverage coolers and retail commodity counters.

Quick Detail

• Housing: Mini slim fully sealed profile, IP65 waterproof & dustproof grade
• Light source: 2835 SMD LED, beam angle 110°–120°, CRI＞85, luminous efficiency 100–110Lm/W
• Voltage & wiring:DC12V/DC24V: 0.02m SYP small plug, side / bottom wire outlet; AC220V (50/60Hz): 0.12m waterproof mating cable, power factor＞0.9
• Standard length & power range: Low voltage (DC): 228–1518mm, power 2.5–12.5W; High voltage (AC220V): 316–1435mm, power 3.5–16W
• Mount: 4mm hole screw fixing at both lamp end caps
• Waterproof reminder: Must tighten central lock nut to achieve full IP65 performance
• Surface temperature: ＜60℃
• Lifespan: 40,000H
• Environment: Operate -20~45℃, store -40~70℃, humidity 10%–90%

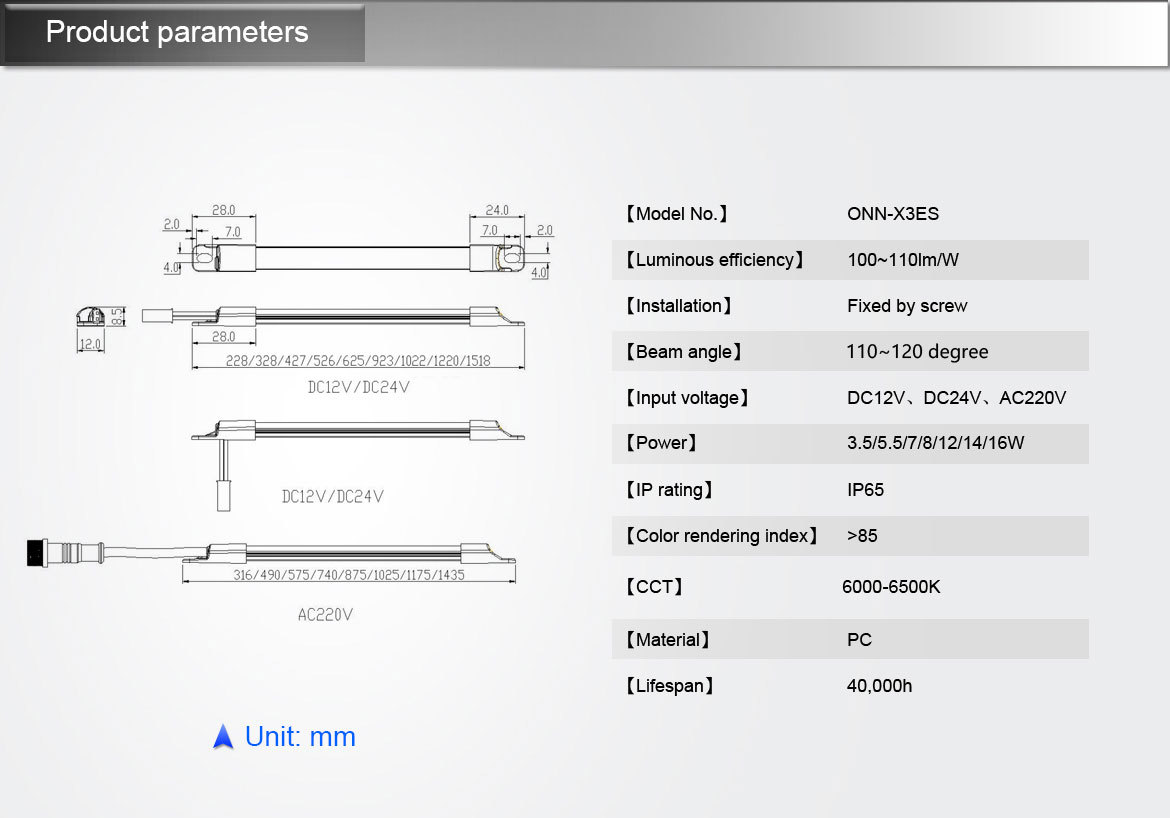

Specifications

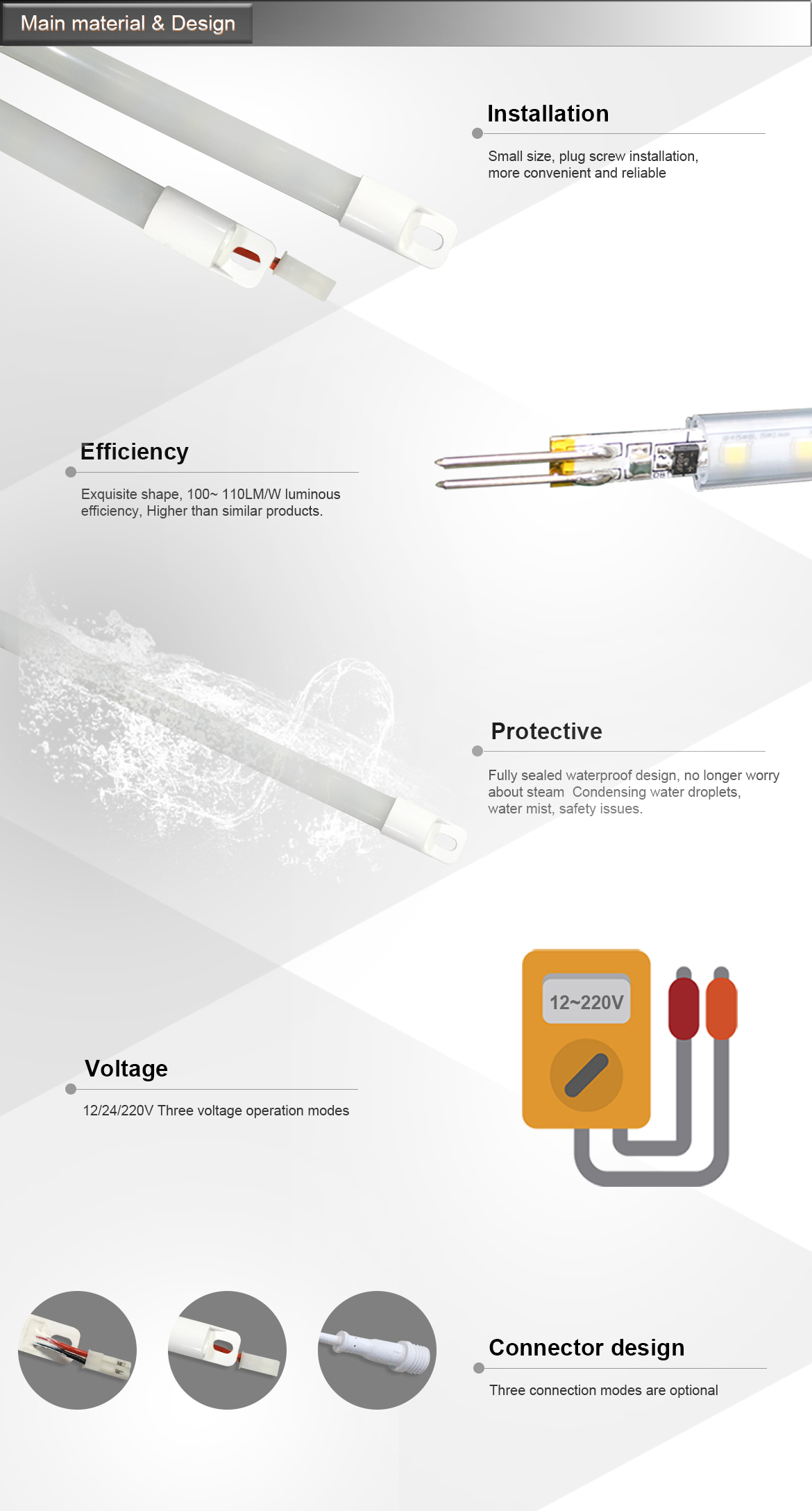

Competitive Advantages

• Complete sealing design eliminates hidden safety hazards caused by water mist and condensed water in cold equipment
• Three universal power supply versions match all supermarket refrigeration control systems
• Slim compact shape saves limited internal shelf space of freezers and display cabinets
• Dual wire outlet designs adapt different cabinet internal wiring layouts
• High power factor AC driver and high luminous efficiency reduce long-term electricity cost
• Simple screw installation, standardized waterproof plug for quick replacement and maintenance

Applications

Supermarket refrigerated display cabinets, vertical freezers, beverage coolers, jewelry counters, department store commodity shelves.

Package Info

Carton with pearl cotton inner packing; different loading quantity and single net weight per lamp length (130–260pcs per carton)
